1/2
Klauke 17R Butt joint Not insulated Metal 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.29
30
10% = € 0.03
€ 0.26
50
14% = € 0.04
€ 0.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.29 / piece)
€
Highlights & Details

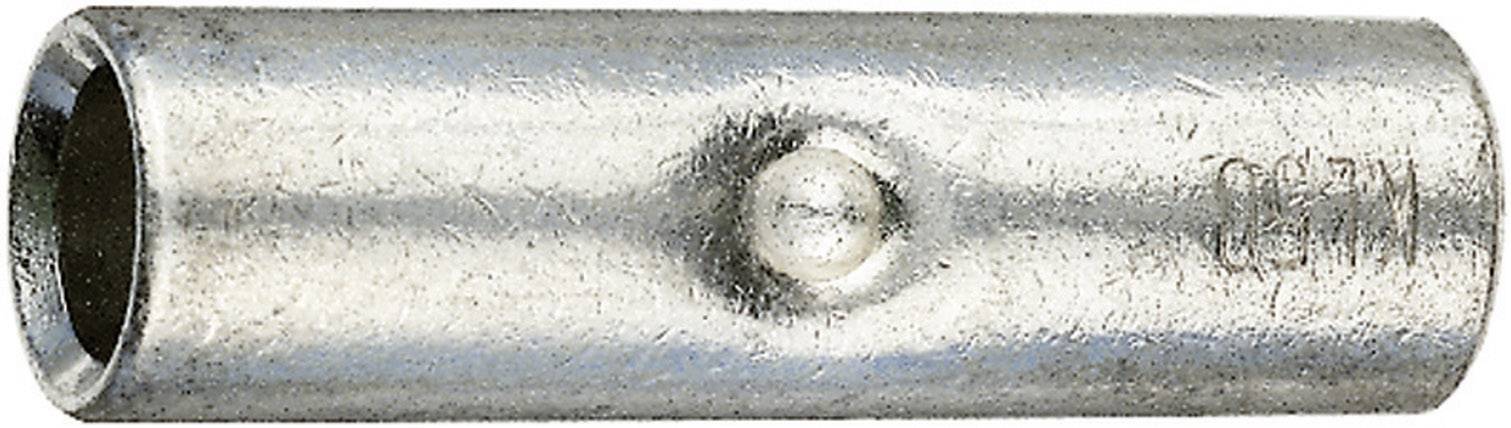

Klauke 17R Butt joint Not insulated Metal 1 pc(s)
Technical specifications
- Factory colour
Metal
- Contact material
Copper silver plated
- Manufacturer part #
17R
- Type
17R
- Content
1 pc(s)
- Dim
(d1 x d4 x l) 1.3 x 2.8 x 20 mm
- Length
20 mm
- Dimensions
(d1 x d4 x l) 1.3 x 2.8 x 20 mm
- Cross-section range
- Inside diameter
1.3 mm
- Insulation type
Not insulated
- Material (details)
Copper according to EN 13600, tin-plated
- Outside Ø
2.8 mm
- Cross section
0.75 mm²
- RoHS-compliant
Yes
- Product type
Butt joint
Documents & Downloads
Datasheet
Datasheet 734382 Klauke 17R Butt joint Not insulated Metal 1 pc(s)
Datasheet 734382 Klauke 17R Butt joint Not insulated Metal 1 pc(s)
Description
Annealed for optimum material and crimp properties. Precisely machined ends for easy cable insertion. For multi-wire conductors such as VDE 0295 class 2. For round compacted, multi-wire, sector shaped conductors. With buttmark for precise cable insertion.
