Klauke 8201V Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Insulated Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.64
15
8% = € 0.05
€ 0.59
25
12% = € 0.08
€ 0.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.64 / piece)
€
Highlights & Details
Klauke 8201V Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Insulated Red 1 pc(s)
- Red
- 2.8 mm x 0.5 mm
- 0.50 mm² - 1 mm²
Technical specifications
- Factory colour
Red
- Contact material
Brass tin plated
- Content
1 pc(s)
- Dim
- Cross-section range
0.50 - 1 mm²
- Size
2.8 x 0.5 mm
- Insulation
Halogen-free PA
- Insulation type
Insulated
- Manufacturer part #
8201V
- Type
8201V
- Material (details)
CuZn, tin-plated
- Type
2.8 x 0.5 mm
- max. cross section
1 mm²
- Connector thickness
0.5 mm
- Connector width
2.8 mm
- Insulation material
Polyamide 6.6
- Connection angle
180°
- Cross section
0.5 - 1 mm²
- Min. cross section
0.50 mm²
- Product type
Blade receptacle
Variants(All information is without VAT, plus shipping costs)
Factory colour
Klauke 8201V Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Insulated Red 1 pc(s)
This article
Red
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 8203V Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Insulated Red 1 pc(s)
Red
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 720V Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Red 1 pc(s)
Red
Minimum order quantity: 7
Multiple: 1
€ 0.45*

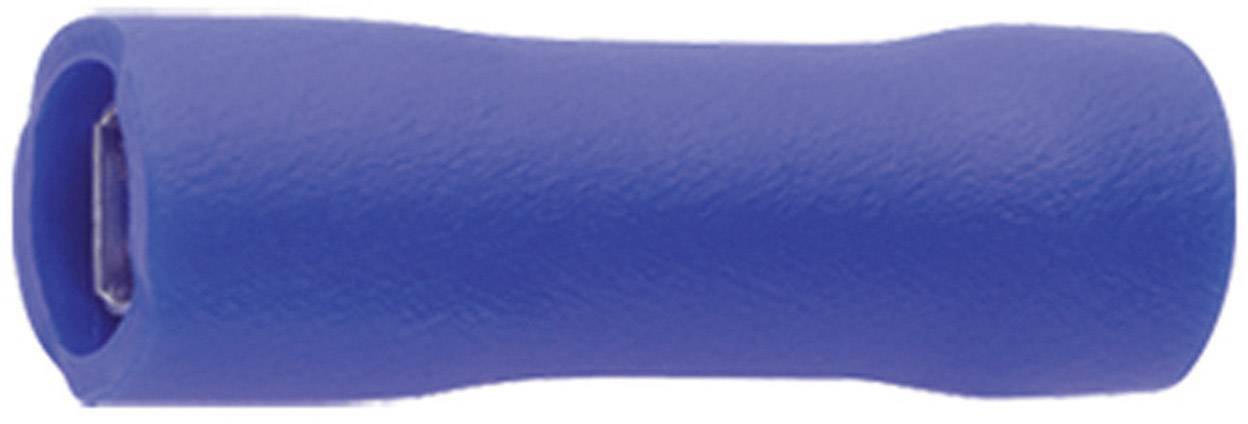

Klauke 8301V Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Insulated Blue 1 pc(s)
Blue
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 8301AV Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Insulated Blue 1 pc(s)
Blue
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 8302V Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Insulated Blue 1 pc(s)
Blue
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 8303V Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Insulated Blue 1 pc(s)
Blue
Minimum order quantity: 5
Multiple: 1
€ 0.64*
Klauke 730V Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Blue 1 pc(s)
Blue
Minimum order quantity: 7
Multiple: 1
€ 0.45*
Klauke 8503V Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Insulated Yellow 1 pc(s)
Yellow
Minimum order quantity: 5
Multiple: 1
€ 0.72*
Klauke 750V Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Yellow 1 pc(s)
Yellow
Minimum order quantity: 5
Multiple: 1
€ 0.53*
Documents & Downloads
Datasheet
Datasheet 738413 Klauke 8201V Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Insulated Red 1 pc(s)
Description
For fine and ultra-fine stranded conductors.
