Buy KS Tools 503.5924 503.5924 Crowfoot wrench Spanner size (metric) 24 mm

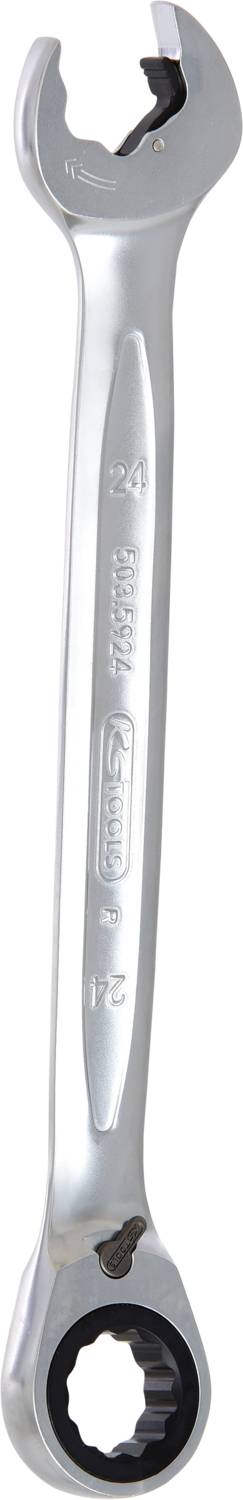

A adjustable ratchet spanner made of metal with an open-ended spanner at one end and a gear mechanism at the other end.

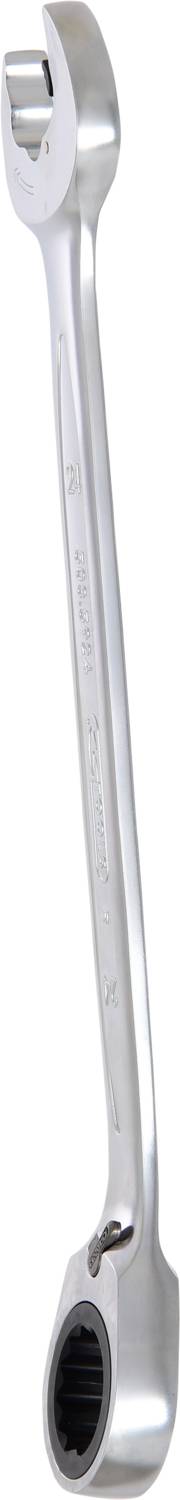

A silver ratchet spanner with one open and one 12-point ring end, used for tightening or loosening nuts and bolts.

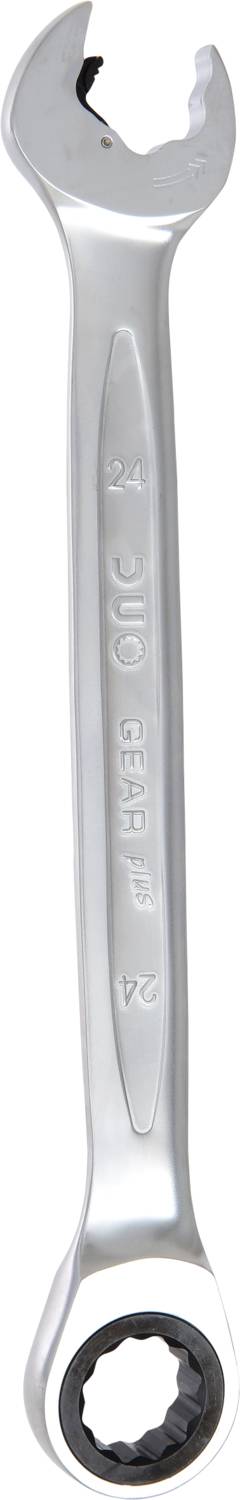

A silver ratchet ring spanner with two ends: one open and one closed side. The tool is suitable for nuts and bolts.

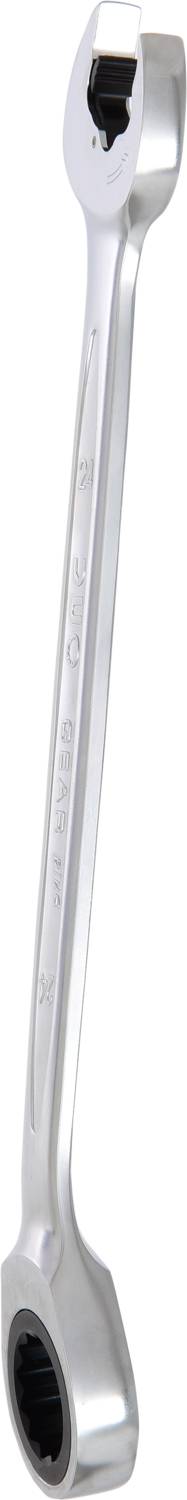

A silver ring spanner with ratchet function, suitable for various screw sizes. Ideal for mechanical work.

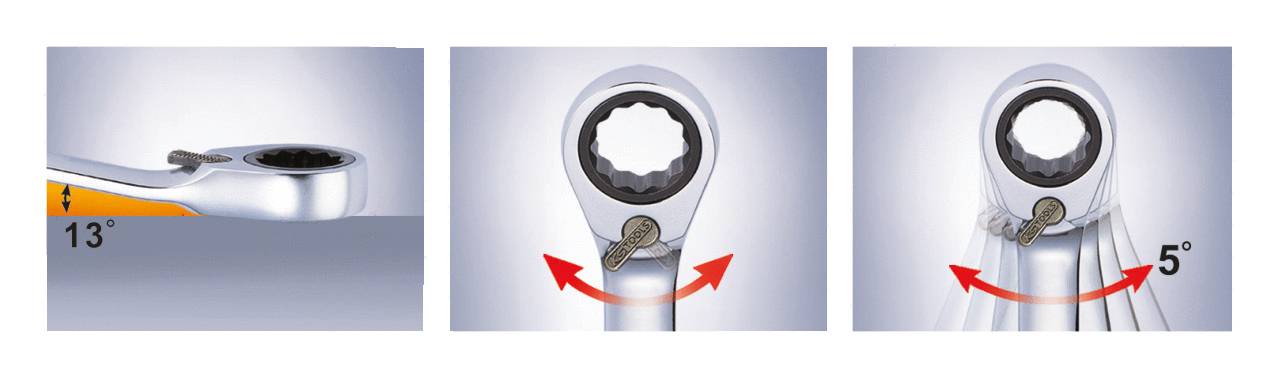

Three images show a ratchet ring. Left: Side view at a 13° angle. Centre: Arrow indicates 180° pivot point. Right: Arrows point to a 5° range of movement.

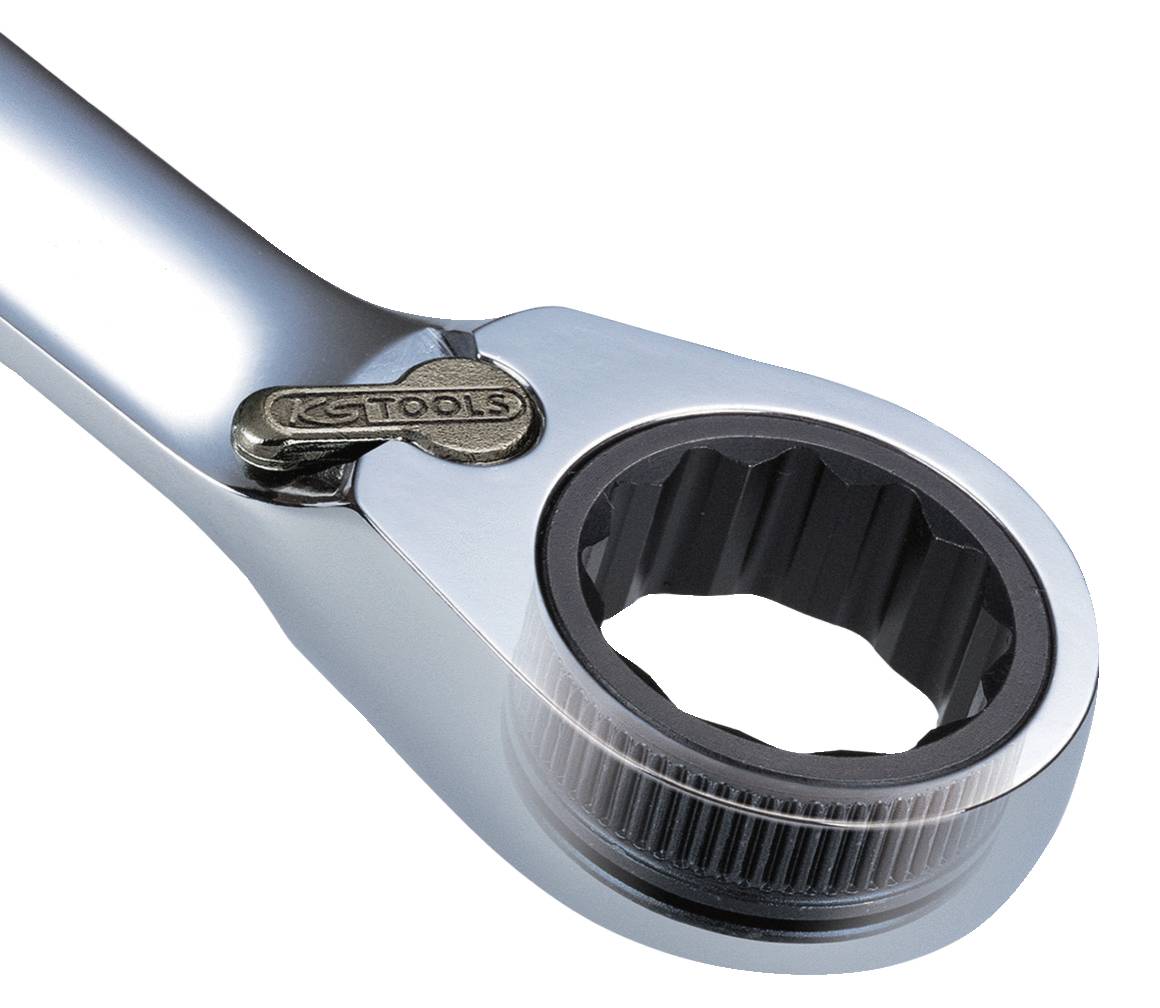

A chrome-plated ring spanner with a ratchet mechanism. The head features a toothed design for different screw sizes.

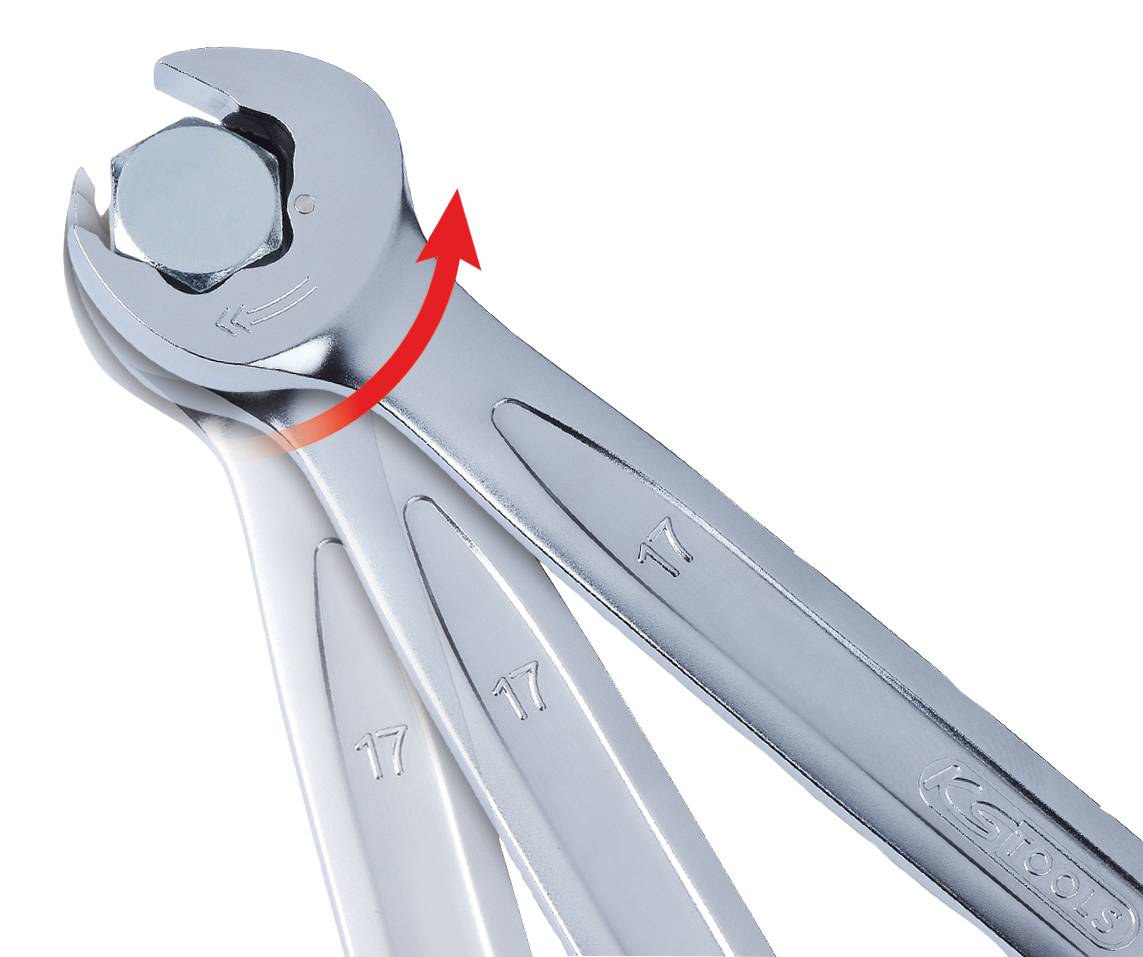

A chrome-plated adjustable spanner turns a screw nut clockwise. A red arrow indicates the direction of rotation.

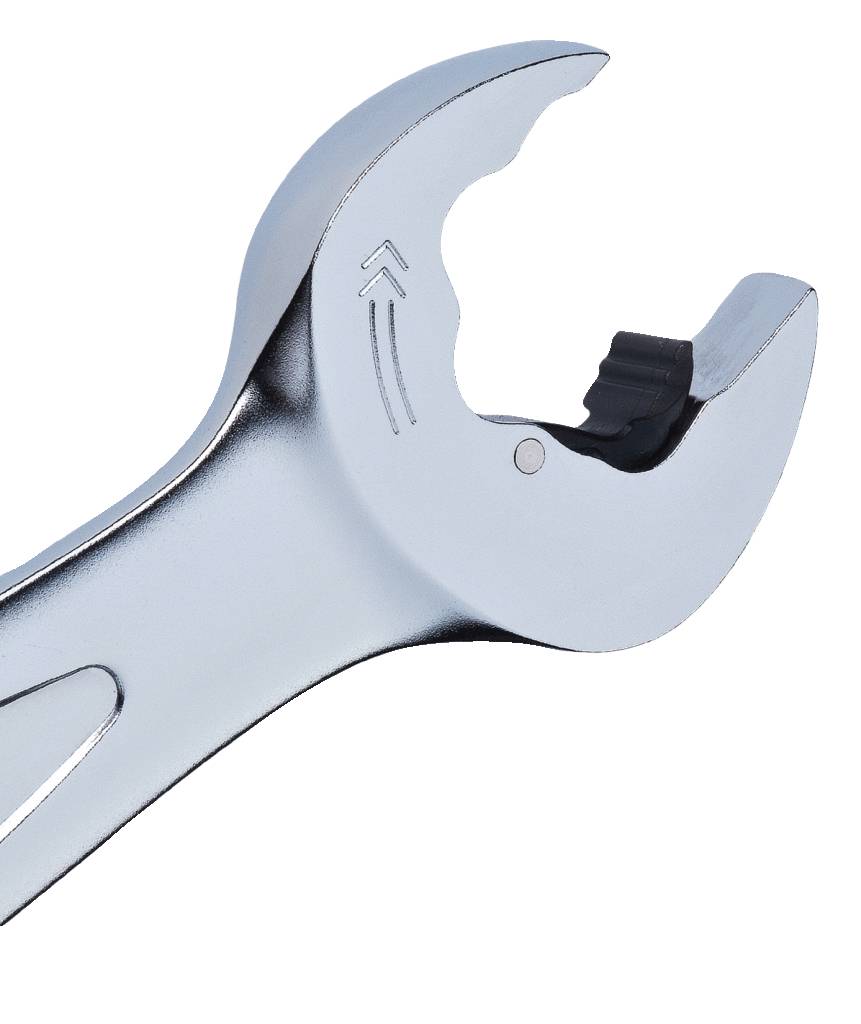

Adjustable metal spanner with an open head, close-up view.

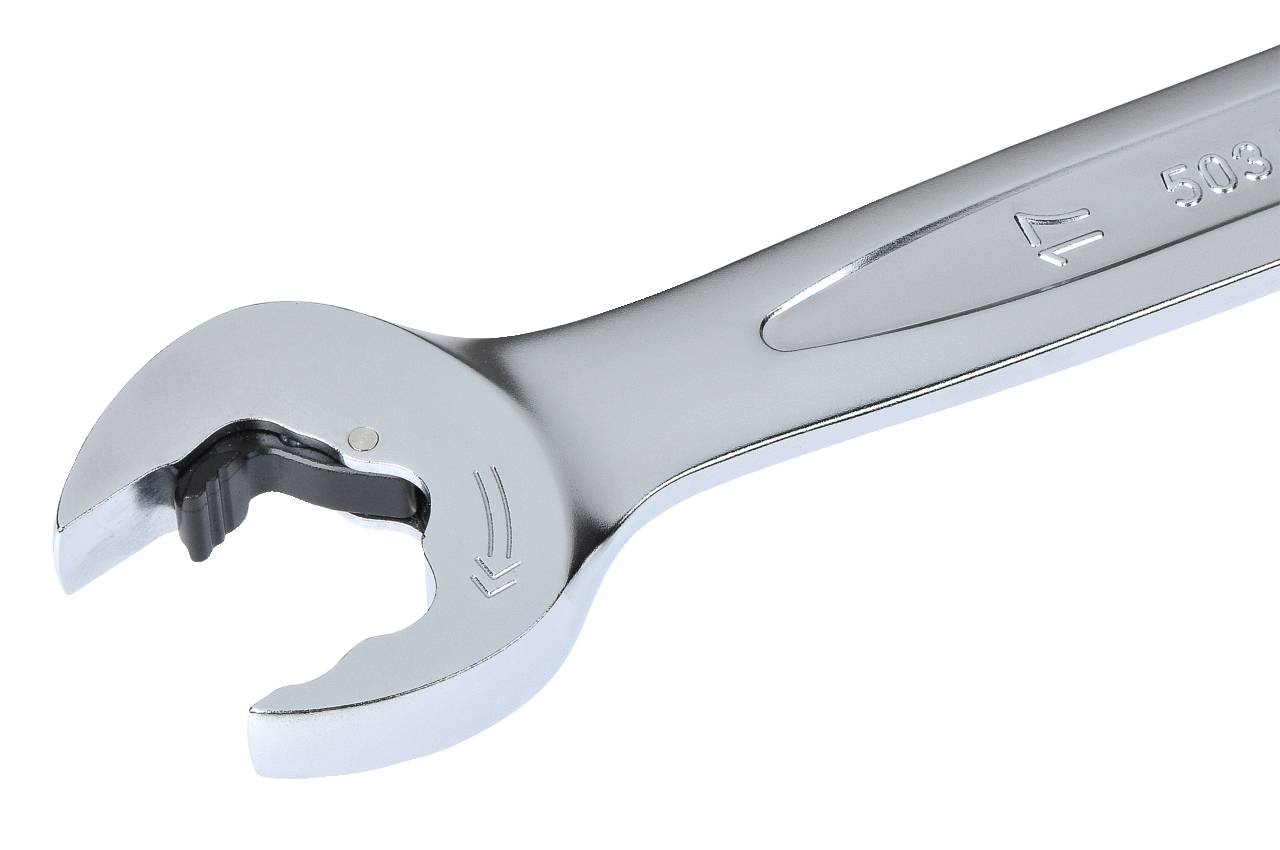

A chrome-plated metal spanner, partially visible, with the open jaw facing left.

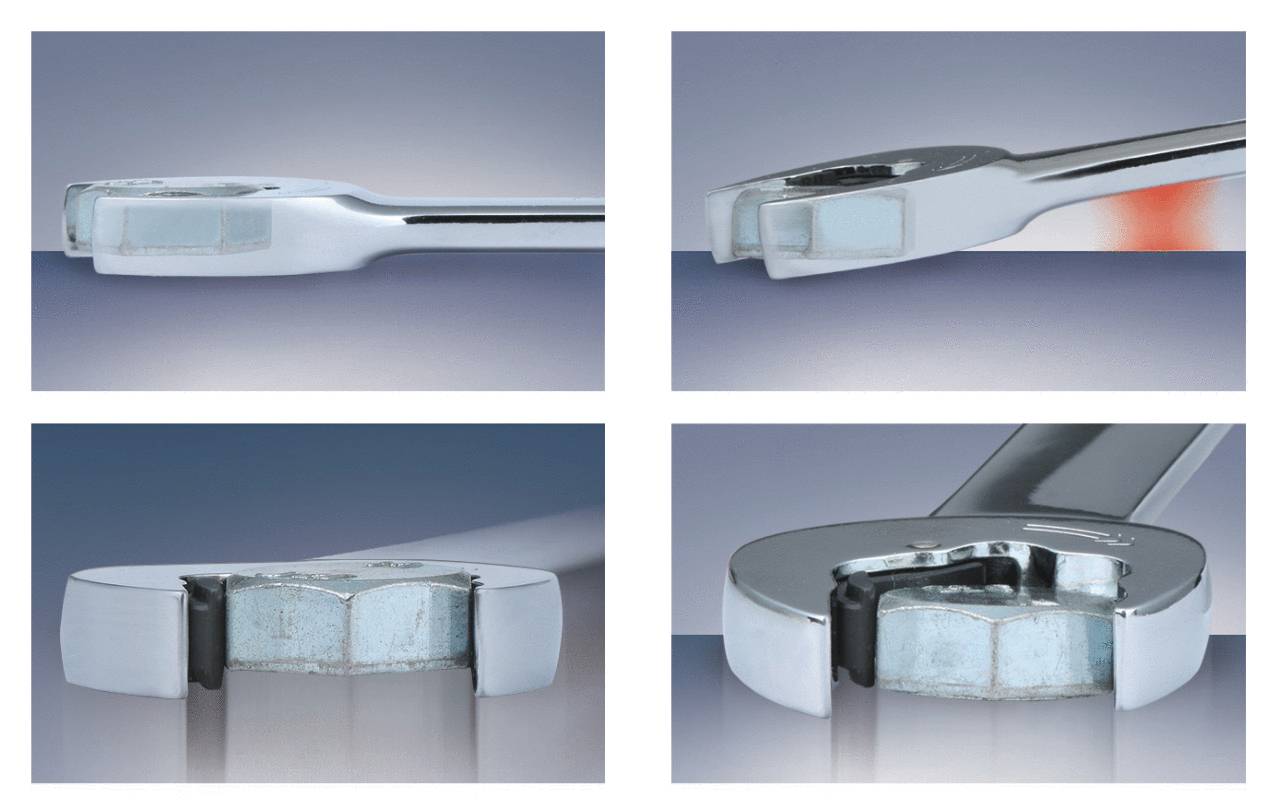

Four images of a spanner from different angle views and cross-sections, showing details of the jaw end and internal structure.

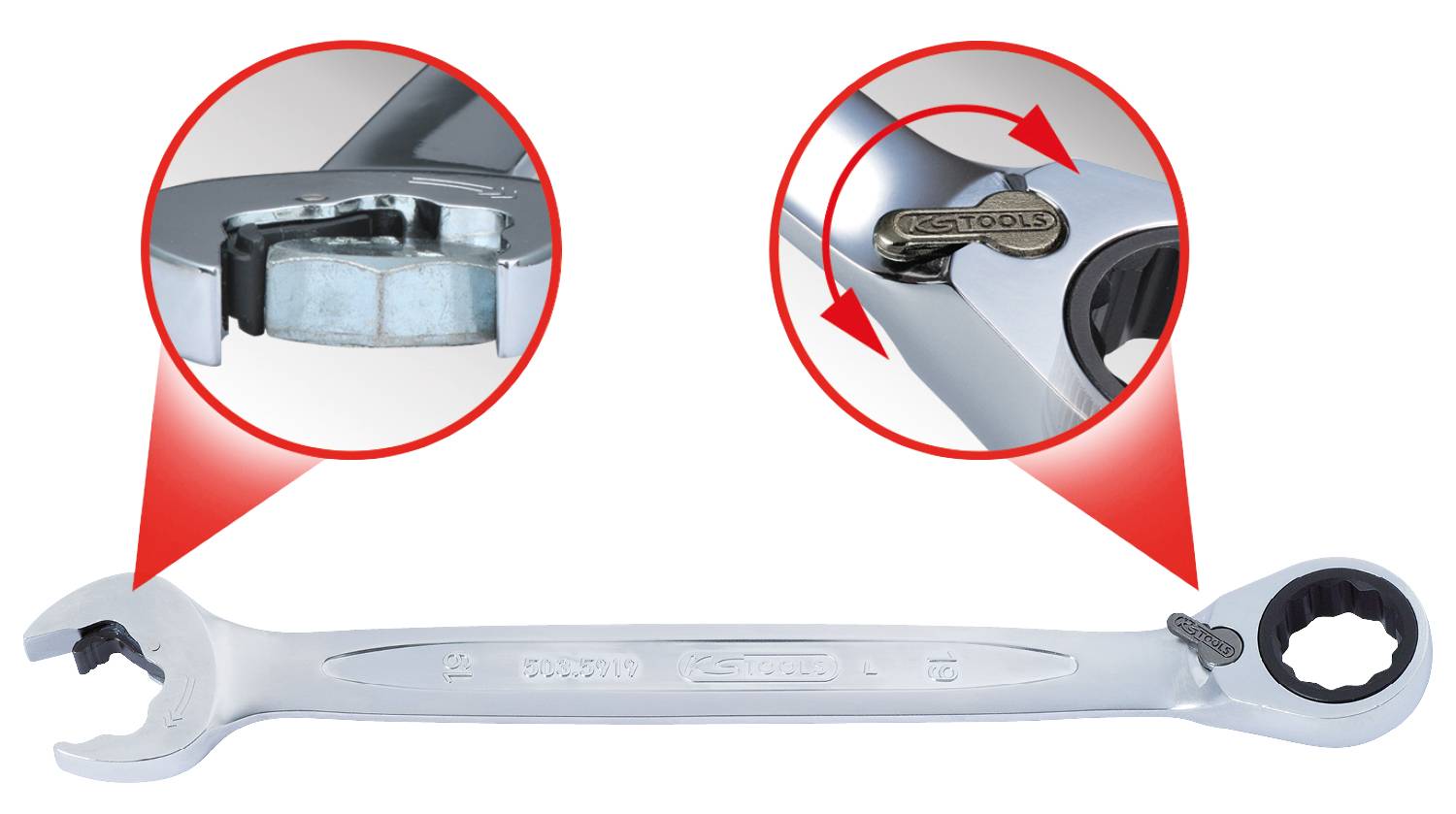

A silver adjustable spanner with ratchet function and adjustable head. Close-up shots reveal the ratchet mechanism and head rivets.

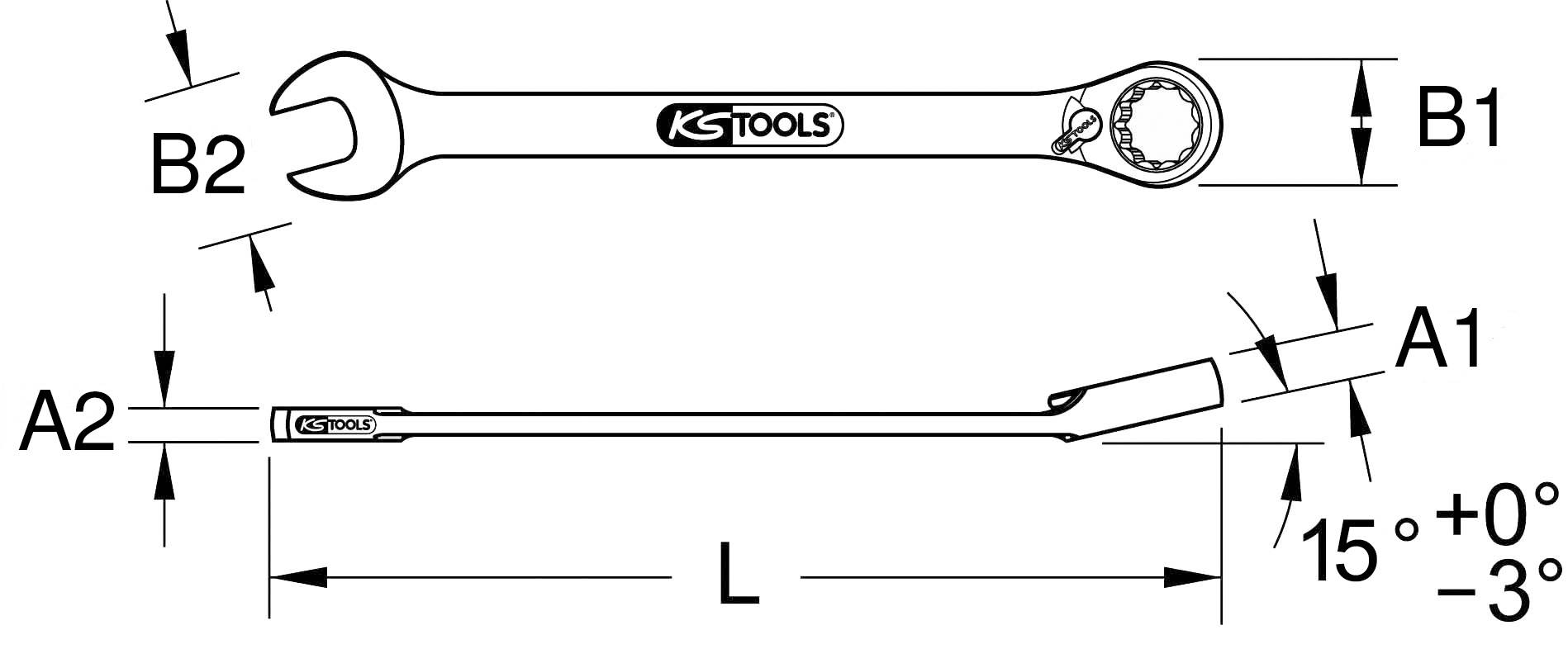

Drawing of a ring spanner with dimensions. Shows various angles and lengths B1, B2, A1, A2, L. Marked with 'KS Tools'.

1/12

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 38.65 / piece)

€

Report legal concerns

Technical specifications

Outer dimension B1: 46.5 mm
Outer dimension B2 51.5 mm
Function attribute 1: Switchable
Fork position: 15° fork position
Total length L in mm: 323 mm
Weight 470 g
Head height (A1) 14.5 mm
Head height (A2) 9.8 mm
Material 1: Finest chromium-vanadium steel, matt chrome-plated
Nm on jaw side: 341.2 Nm
Nm on ring side: 610.8 Nm
DIN 3113, ISO 3318 standard
Profil1: Flank traction
Wrench shape: Offset ring 15°
Width across mm 24 mm
Variant items : 503.5908

Spanner size: 24 mm

Length: 323 mm

Material: Chromium-vanadium steel

DIN standard: DIN 3113
DIN ISO 3318

Weight: 470 g

Product type: Crowfoot wrench

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2688463 KS Tools 503.5924 503.5924 Crowfoot wrench Spanner size (metric) 24 mm

Description

Jaw side with new ratchet mechanismFlank Traction profileIn accordance with DIN 3113 / ISO 3318Jaw setting 15 ° angledRing 15° angledWith changeover leverExactly toothed with 72 teethvery fine satinChrome Vanadium

This text is machine translated.
