Buy KS Tools 503.5929 503.5929 Crowfoot wrench Spanner size (metric) 32 mm

A silver spanners with an open and a ratchet side, suitable for tightening and loosening screws.

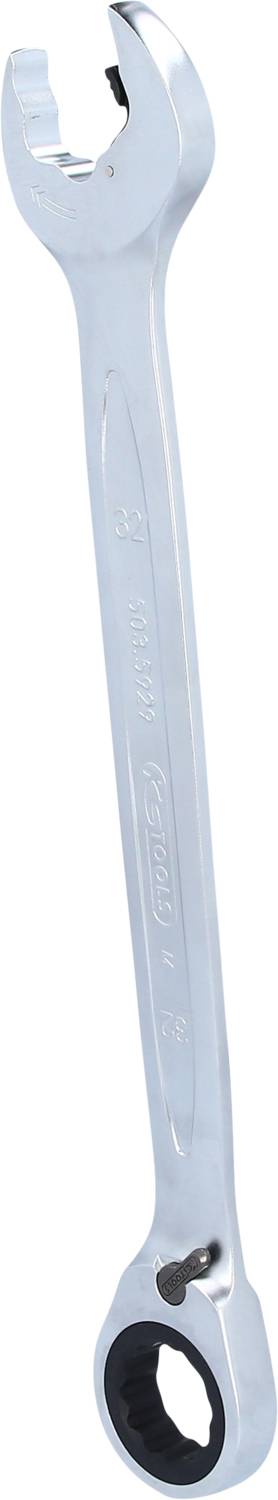

A silver combination spanner standing upright. At the top is an open end, with a ratchet ring at the bottom for flexible use.

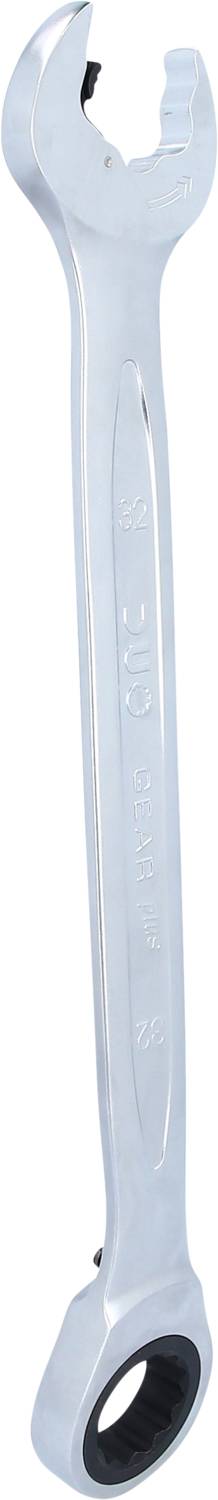

A silver adjustable spanner, also known as a ring spanner, is standing upright. It has two ends: an open jaw and a ring.

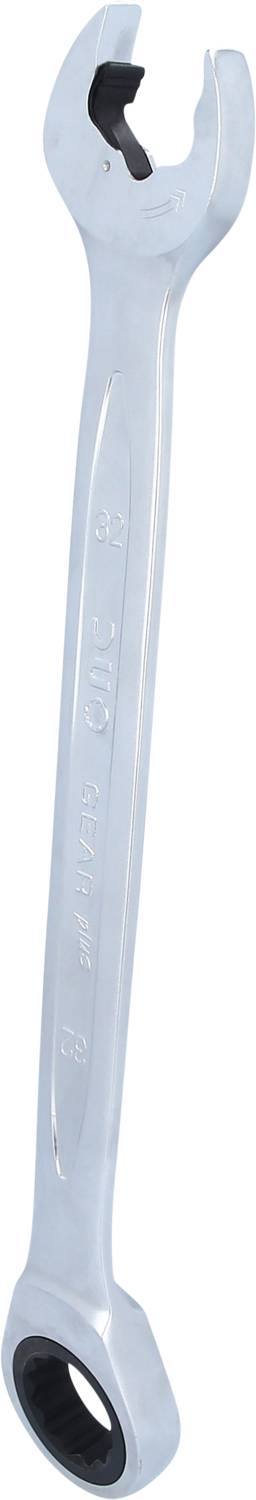

A silver double-sided spanner with an open and a closed end, suitable for nuts or bolts of various sizes.

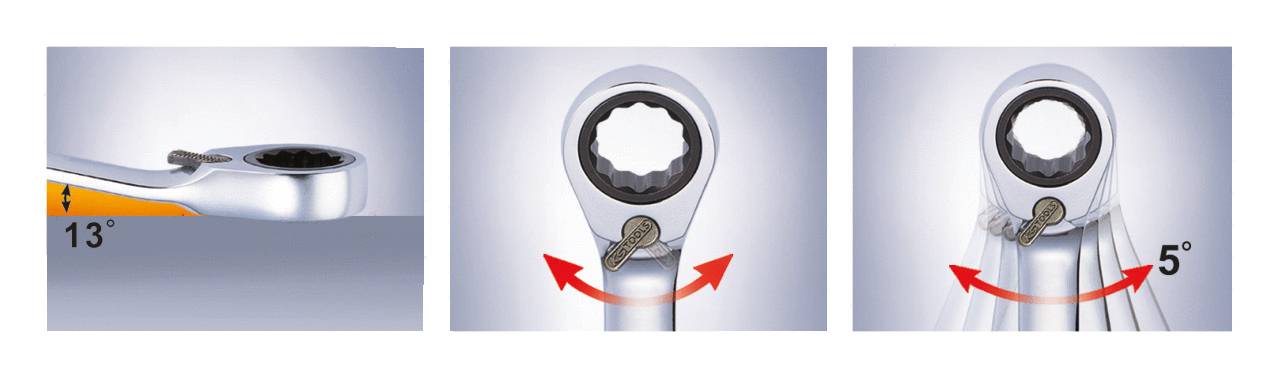

Three images show a spanner. Left: 13° angle. Centre: Locking mechanism. Right: 5° angle of movement.

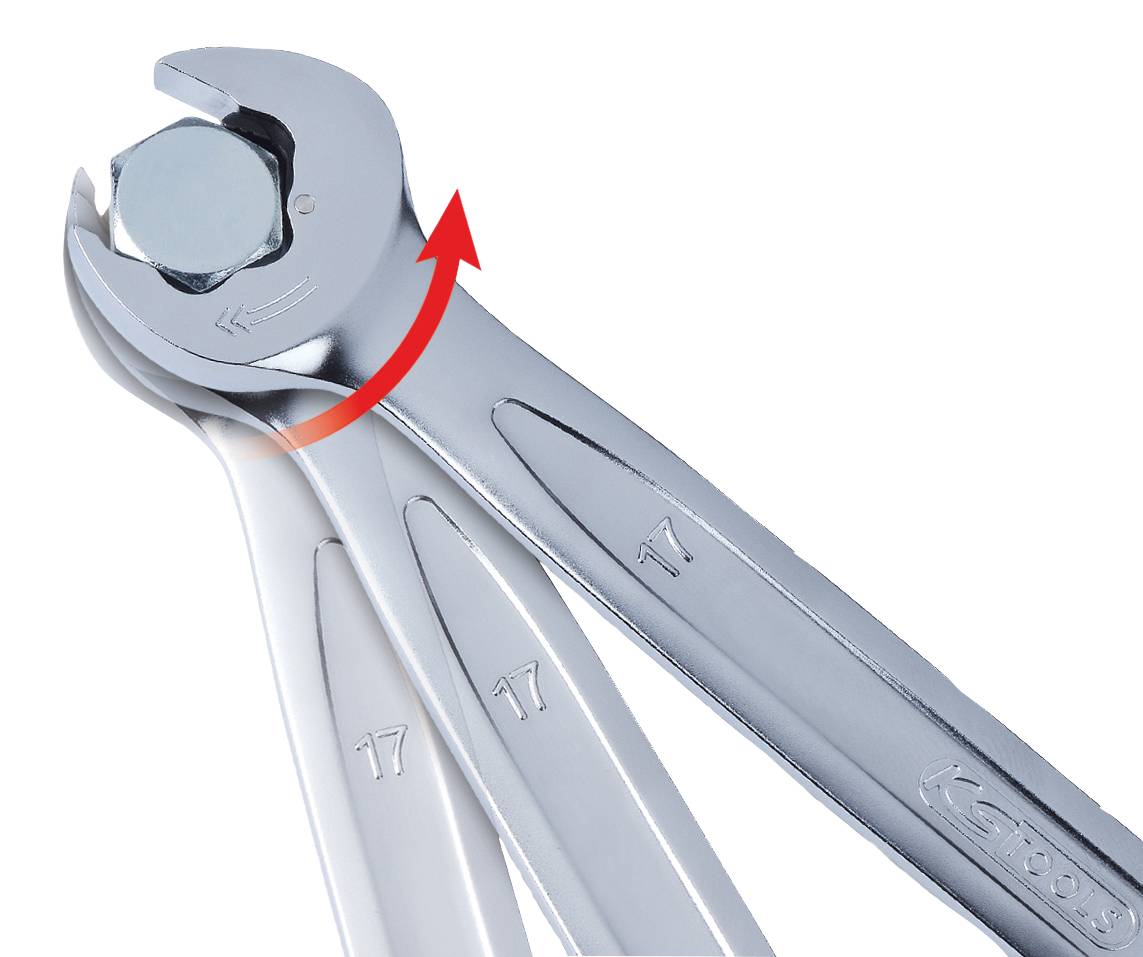

A spanner turns a bolt clockwise. The movement is indicated by a red arrow.

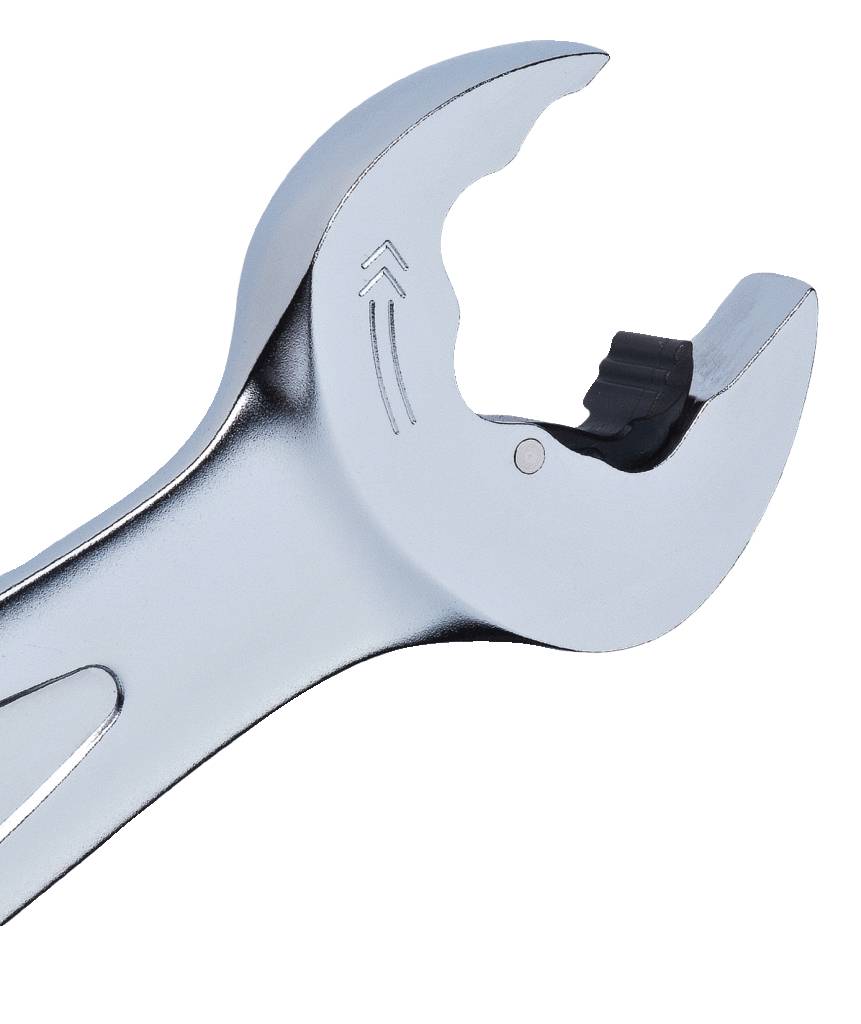

An adjustable metal spanner with an open jaw and an adjustment mechanism for adapting to different screw sizes.

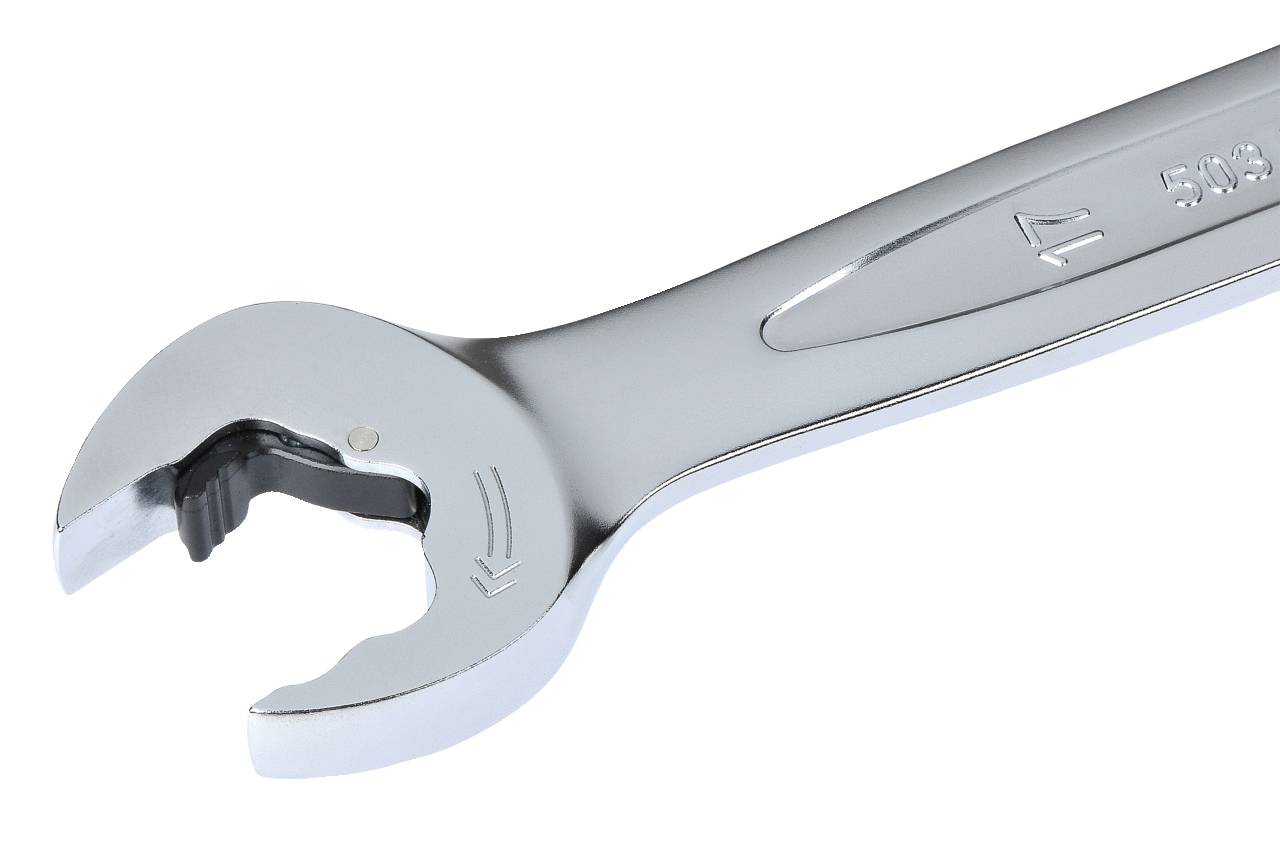

Silver, gleaming adjustable spanner with an open jaw, partially visible on a white background.

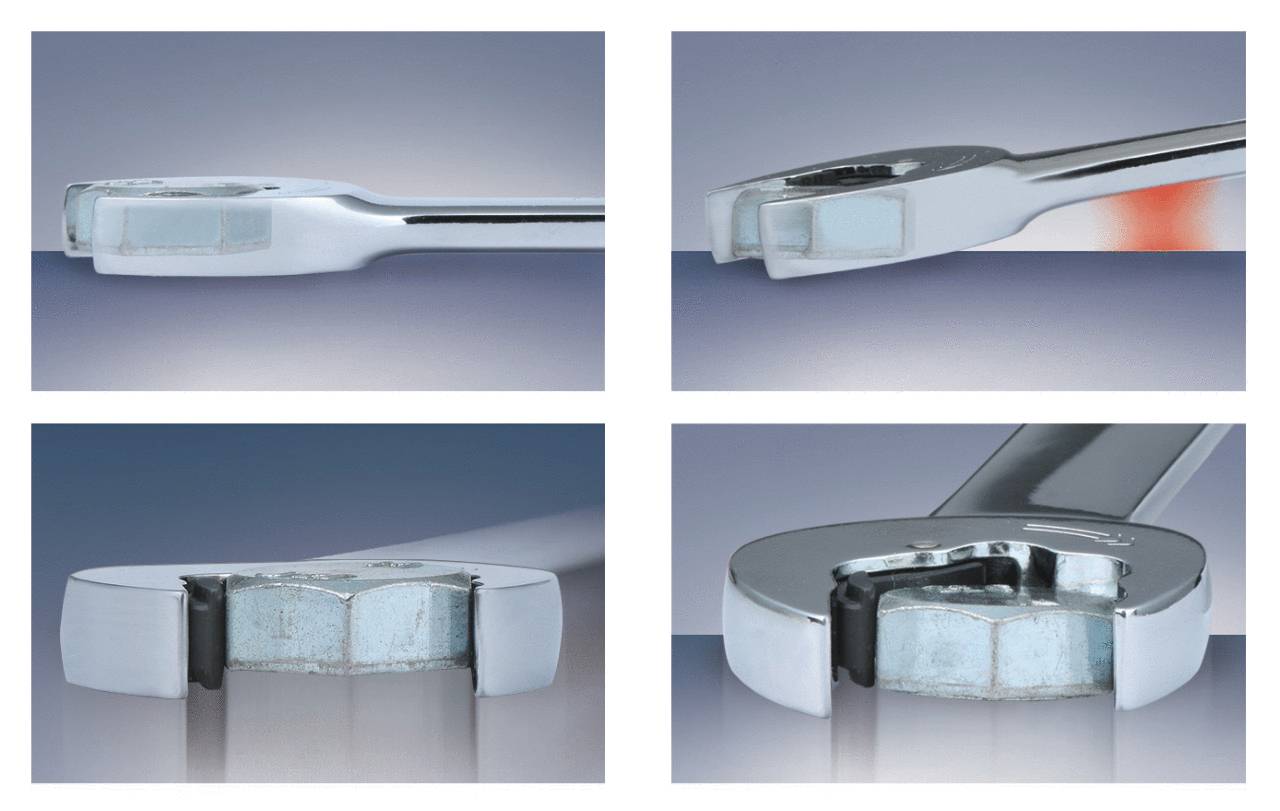

Four images show close-up views of a silver tool from various angles. Focus on the mechanics and structure.

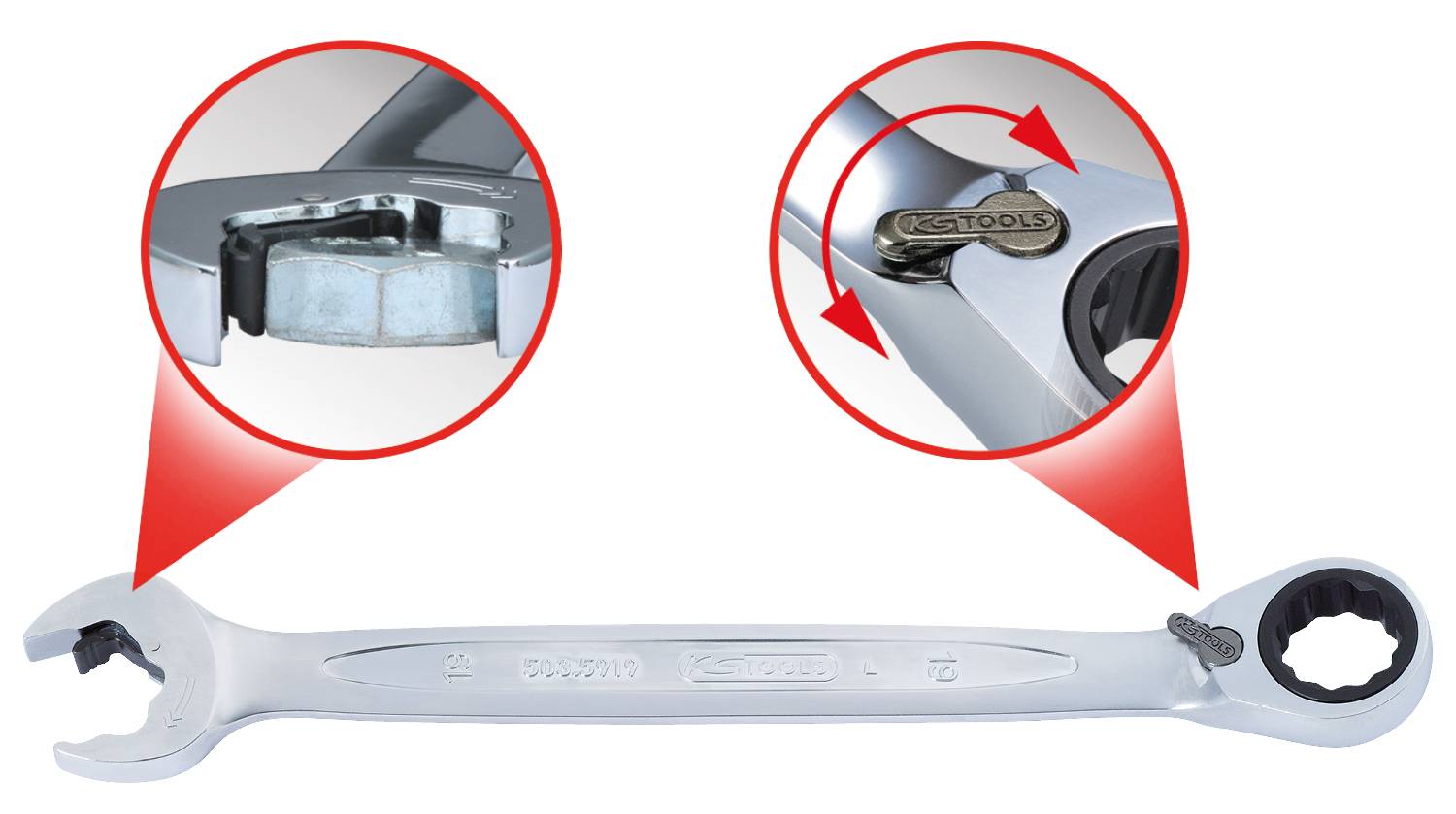

'Ring and jaw spanner with two magnifications: gear system and model number on the surface.'

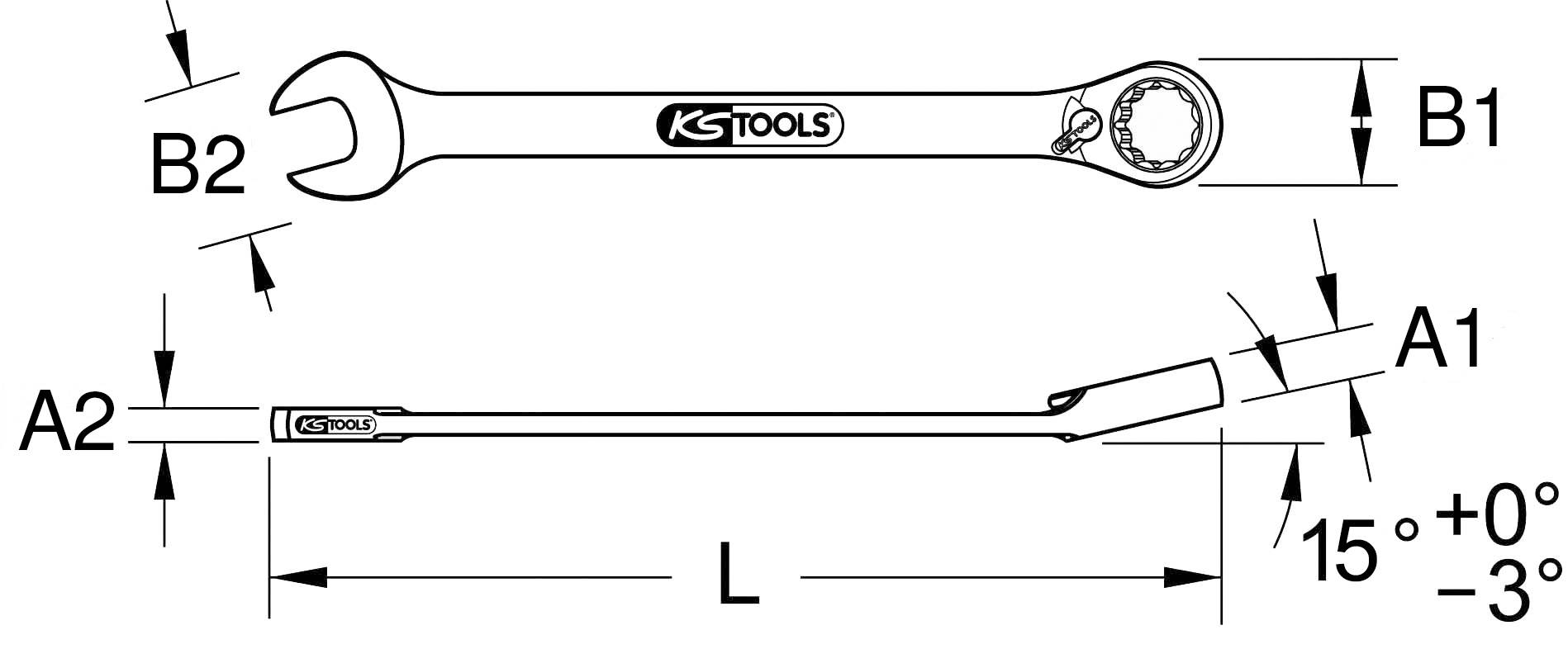

Technical drawing of a jaw wrench by KS Tools. Shows dimensions for length and angle specifications, including B1, B2, A1, A2, L.

1/12

125 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€

Report legal concerns

Technical specifications

Weight 1035 gMaterial 1: Finest chromium-vanadium steel, matt chrome-plated Variant items : 503.5908 Total length L in mm: 418 mmDIN 3113, ISO 3318 standard Profil1: Flank traction Width across mm 32 mmFunction attribute 1: Switchable Fork position: 15° fork position Outer dimension B1: 61.9 mmOuter dimension B2 66.2 mmHead height (A1) 17.6 mmHead height (A2) 12.1 mmWrench shape: Offset ring 15° Nm on jaw side: 650.0 NmNm on ring side: 1086 Nm

Spanner size: 32 mm

Length: 418 mm

Material: Chromium-vanadium steel

DIN standard: DIN 3113
DIN ISO 3318

Weight: 1035 g

Product type: Crowfoot wrench

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2688466 KS Tools 503.5929 503.5929 Crowfoot wrench Spanner size (metric) 32 mm

Description

Jaw side with new ratchet mechanismFlank Traction profileIn accordance with DIN 3113 / ISO 3318Jaw setting 15 ° angledRing 15° angledWith changeover leverExactly toothed with 72 teethvery fine satinChrome Vanadium

This text is machine translated.
