KS Tools 6201703 Puller Clamping range (details) 108 - 220 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€
Only 5 Piece(s) available

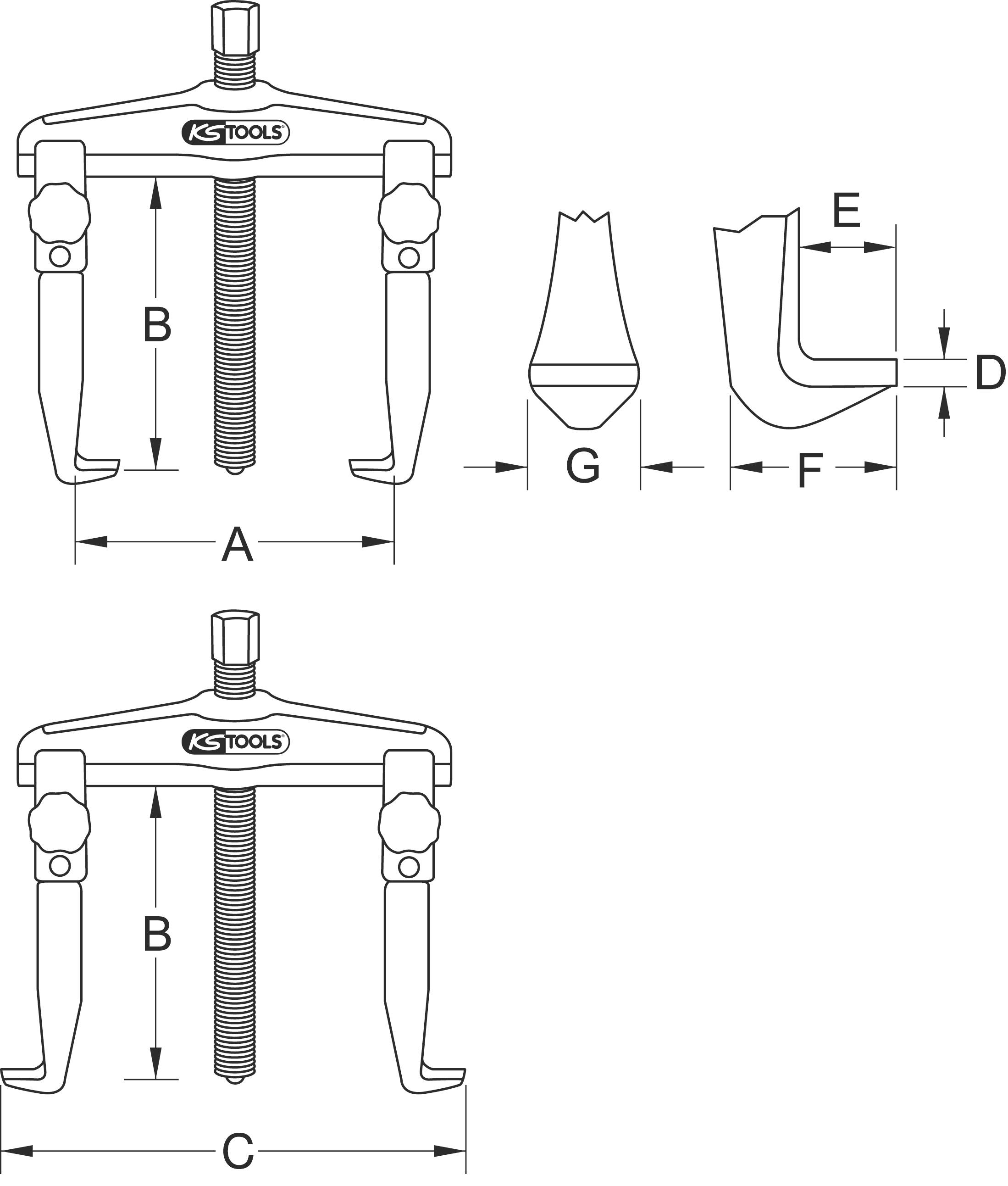

Technical specifications
- Pull hook width G: 25 mm
- Pull hook total depth F: 35 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 16 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:150 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 3000 g
- Material1: Special tool steel
- max. Compressive strength KN: 65.0
- max. Compression force Nm: 150
- max. Pressure force t: 6.5
- Quick adjustment: Yes
- Clamping depth B in mm 150 mm
- Span A in mm 50-160 mm
- Wingspan exterior puller C: 108-220
- Span up to [mm]: 160 mm
- Span [mm]: 50 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 620.1701
- Clamping range
108 - 220 mm
- Dim
- Weight
3000 g
- Content
1 pc(s)
- Span depth (max.)
150 mm
- Hooks
2
- Product type
Puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695364 KS Tools 6201703 Puller Clamping range (details) 108 - 220 mm No. of hooks 2
Description
With quick clamping functionIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
