KS Tools 6203401 Puller Clamping range (details) 20 - 170 mm No. of hooks 2
EAN:
Part number:
Item no:

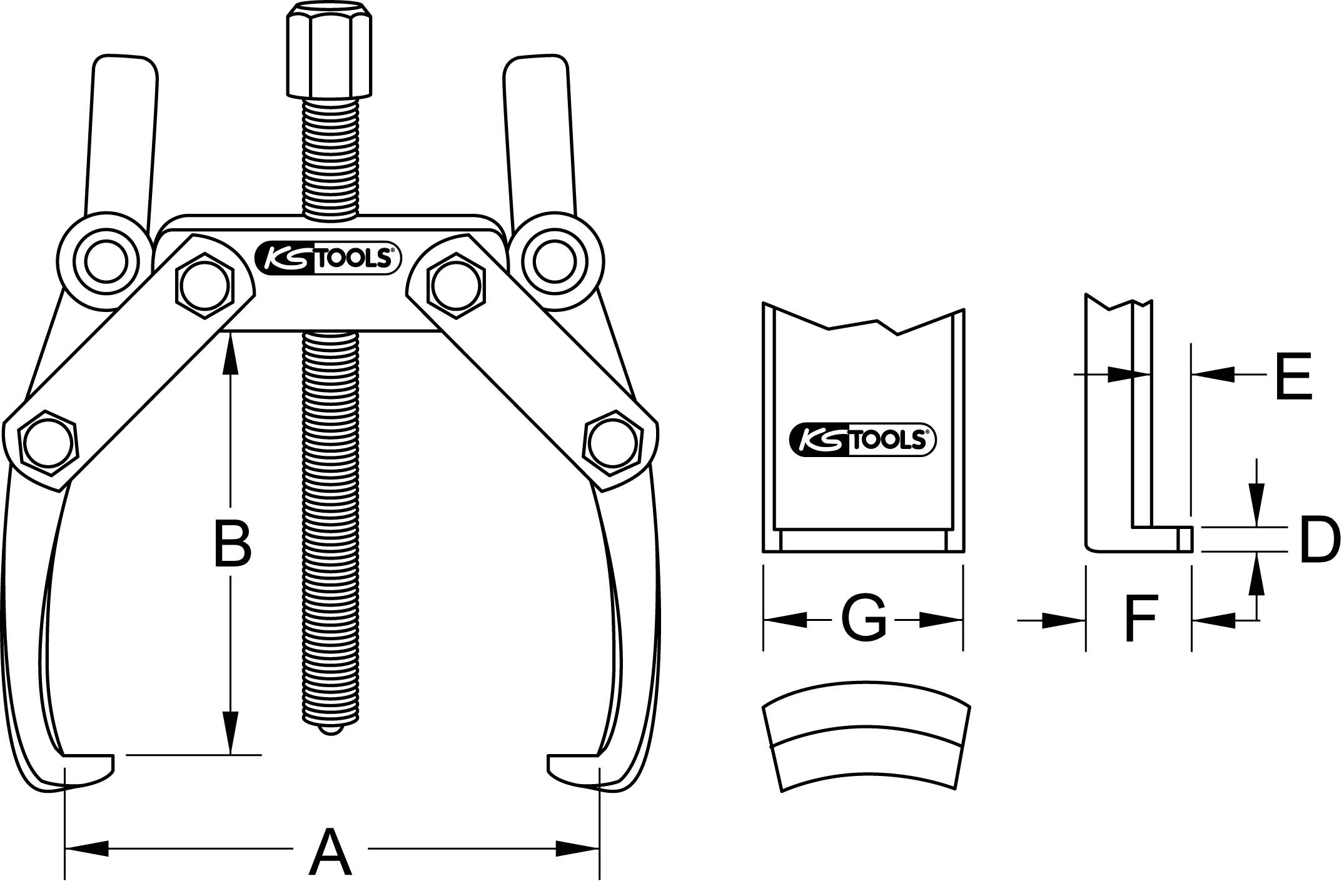

Technical specifications
- Pull hook width G: 16 mm
- Pull hook total depth F: 23 mm
- Pull hook height D 2 mm
- Pull hook tip depth E: 11 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:50 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 1000 g
- Material1: Special tool steel
- max. Compressive strength KN: 35.0
- max. Compression force Nm: 50
- max. Pressure force t: 3.5
- Quick adjustment: No. nein
- Clamping depth B in mm 130 mm
- Span A in mm 20-170 mm
- Span up to [mm]: 170 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 620.3401
- Clamping range
20 - 170 mm
- Dim
- Weight
1000 g
- Content
1 pc(s)
- Span depth (max.)
130 mm
- Hooks
2
- Product type
Puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695378 KS Tools 6203401 Puller Clamping range (details) 20 - 170 mm No. of hooks 2
Description
The clamping depth of hooks can be adjustedExtremely robust spindle with inductively hardened threadSpecial tool steel
