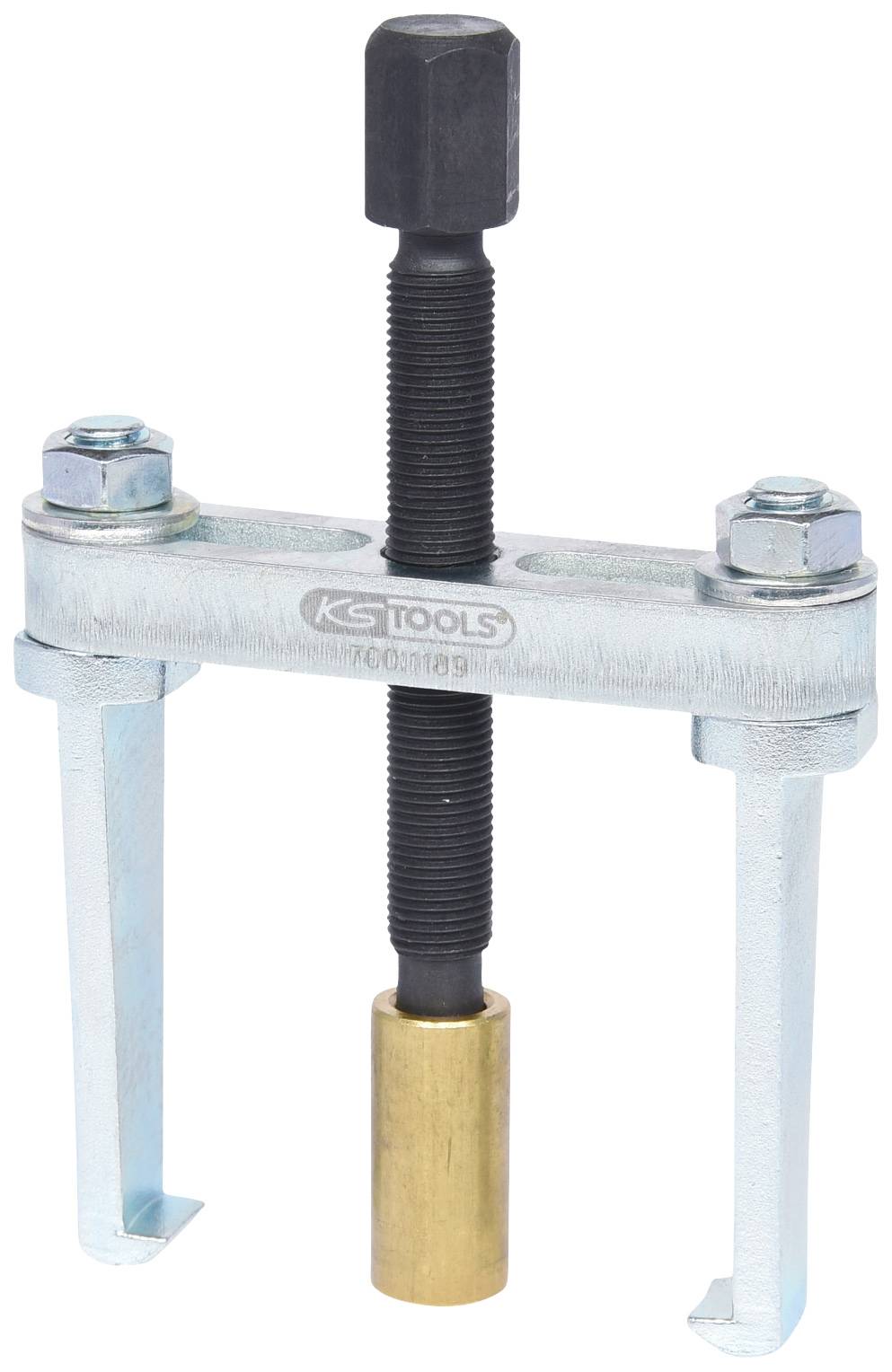

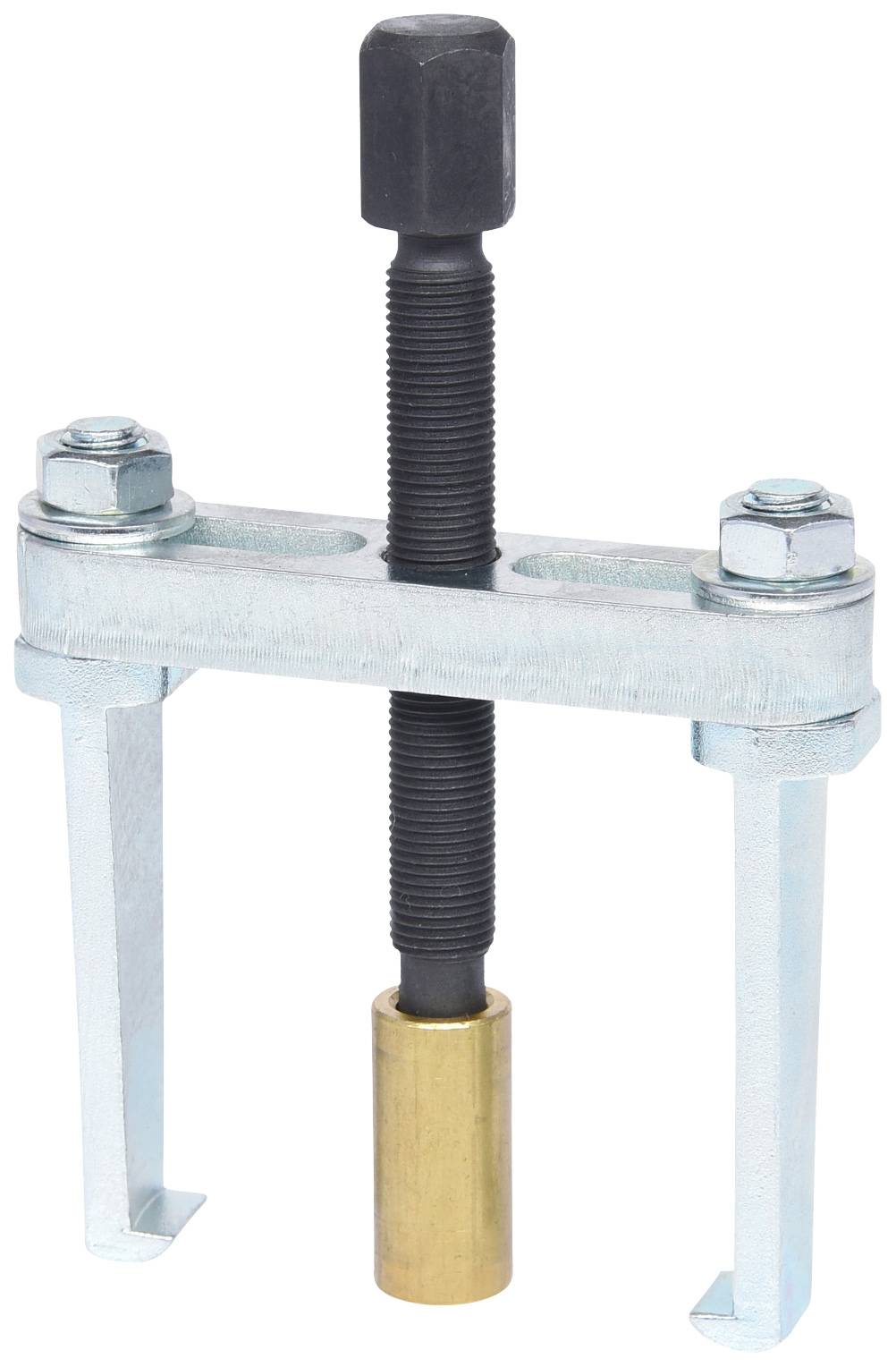

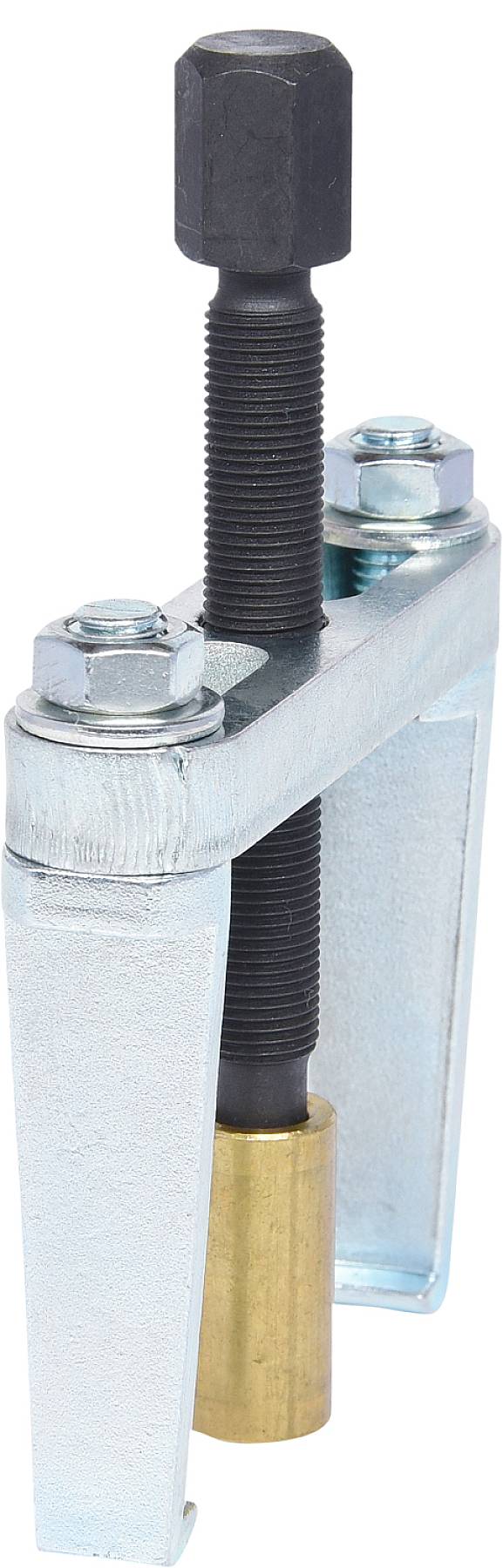

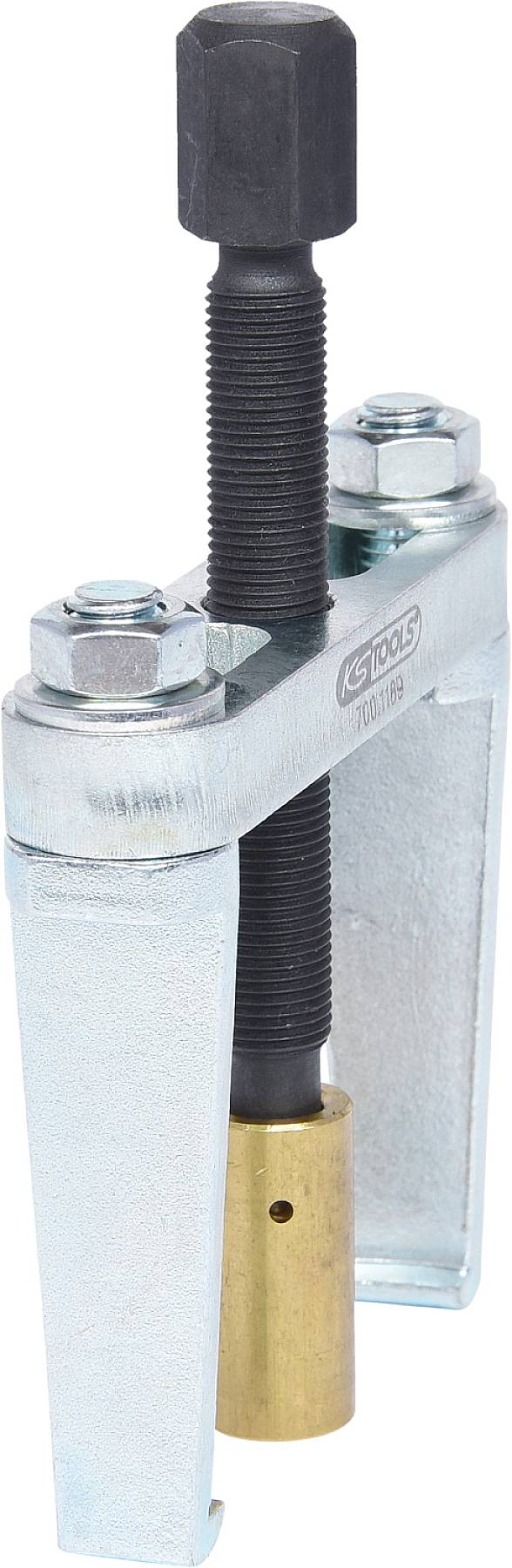

KS Tools 7001189 Screen wiper arm puller Clamping range (details) 20 - 60 mm No. of hooks 2
EAN:
Part number:
Item no:

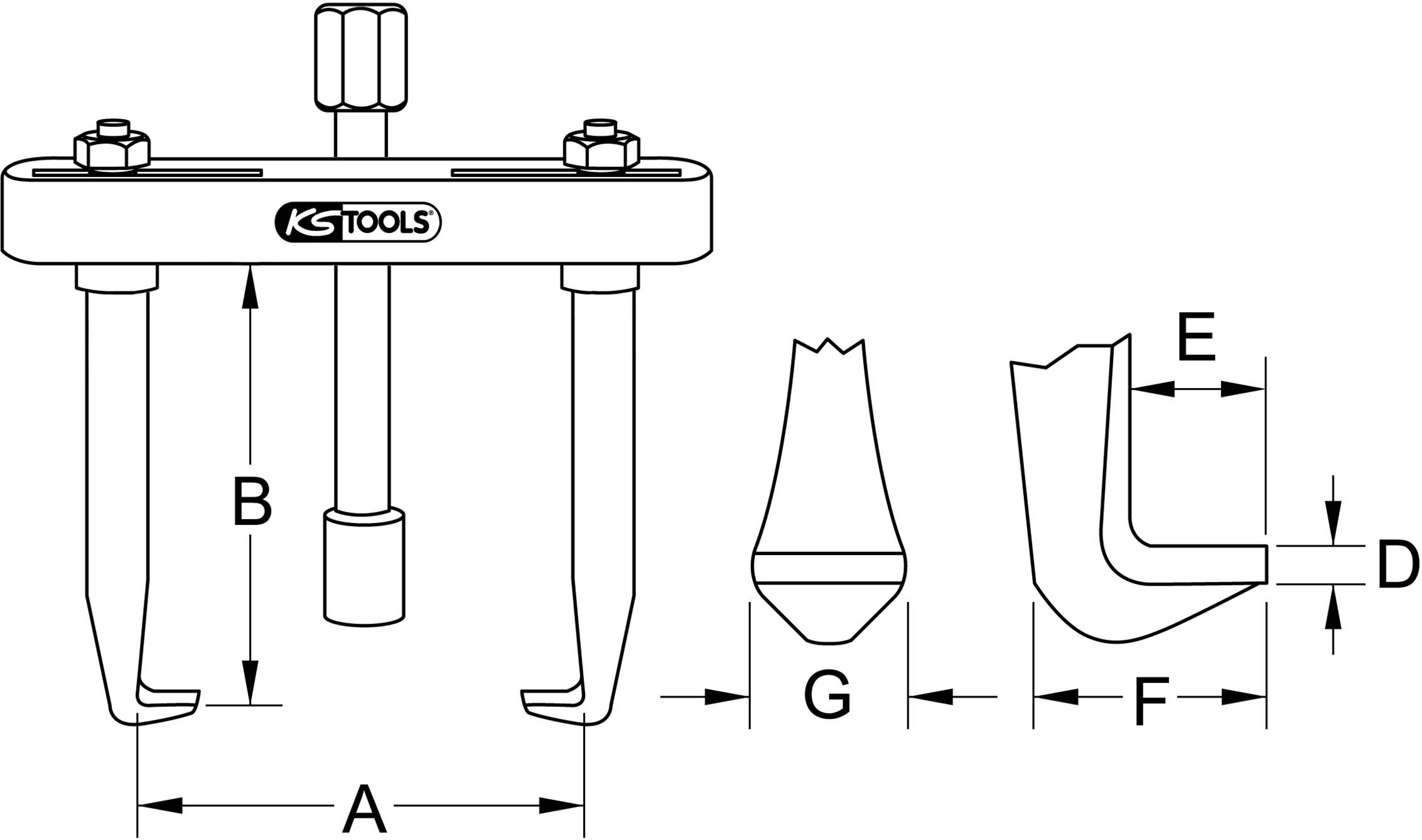

Technical specifications
- Pull hook width G: 12 mm
- Pull hook total depth F: 9 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 4 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 13 mm
- Weight 243 g
- Material1: Special tool steel
- DIN 3120, ISO 1174 standard
- Quick adjustment: No. nein
- Clamping depth B in mm 50 mm
- Span A in mm 20-60 mm
- Span up to [mm]: 60 mm
- Span [mm]: 20 mm
- Spindle size mm M10x115
- Clamping range
20 - 60 mm
- Dim
- Weight
243 g
- Content
1 pc(s)
- Span depth (max.)
50 mm
- Hooks
2
- Product type
Screen wiper arm puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695656 KS Tools 7001189 Screen wiper arm puller Clamping range (details) 20 - 60 mm No. of hooks 2
Description

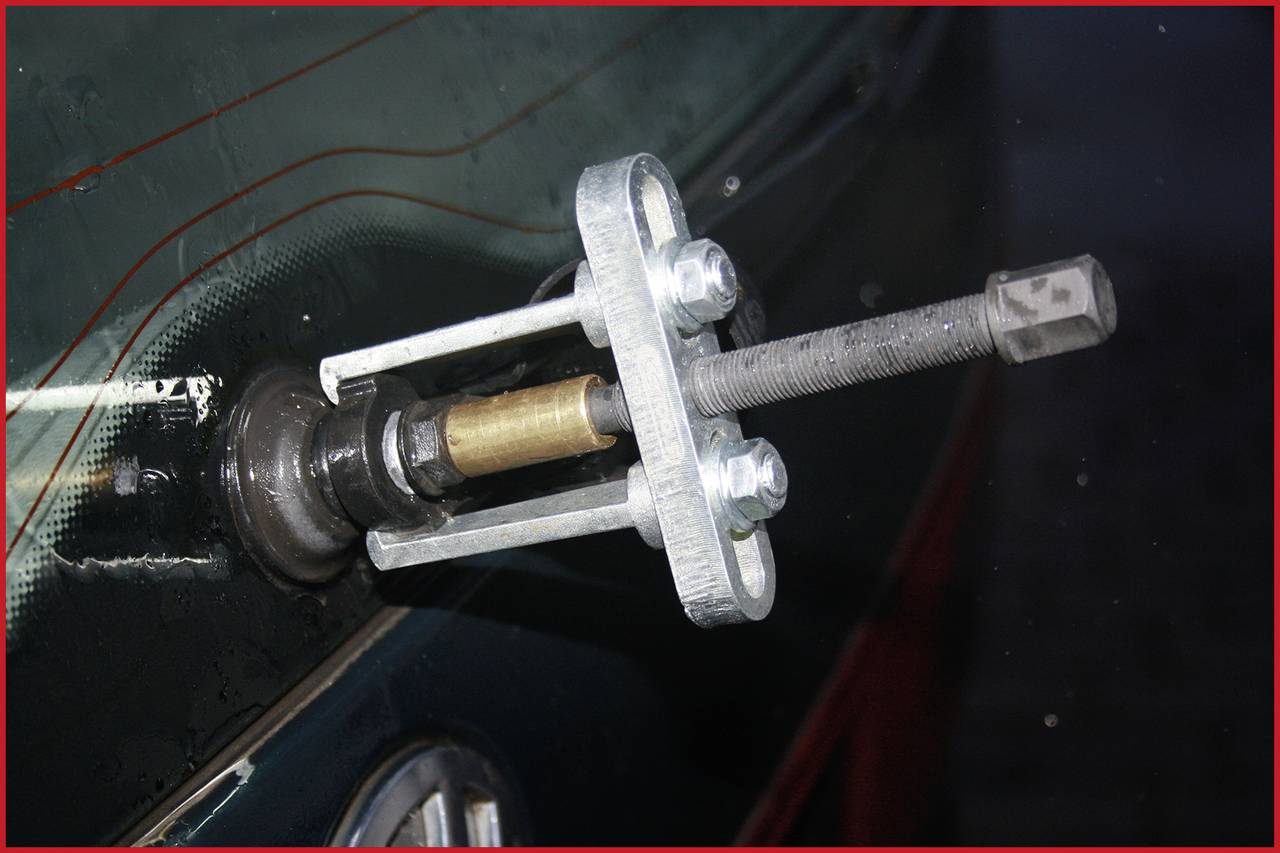

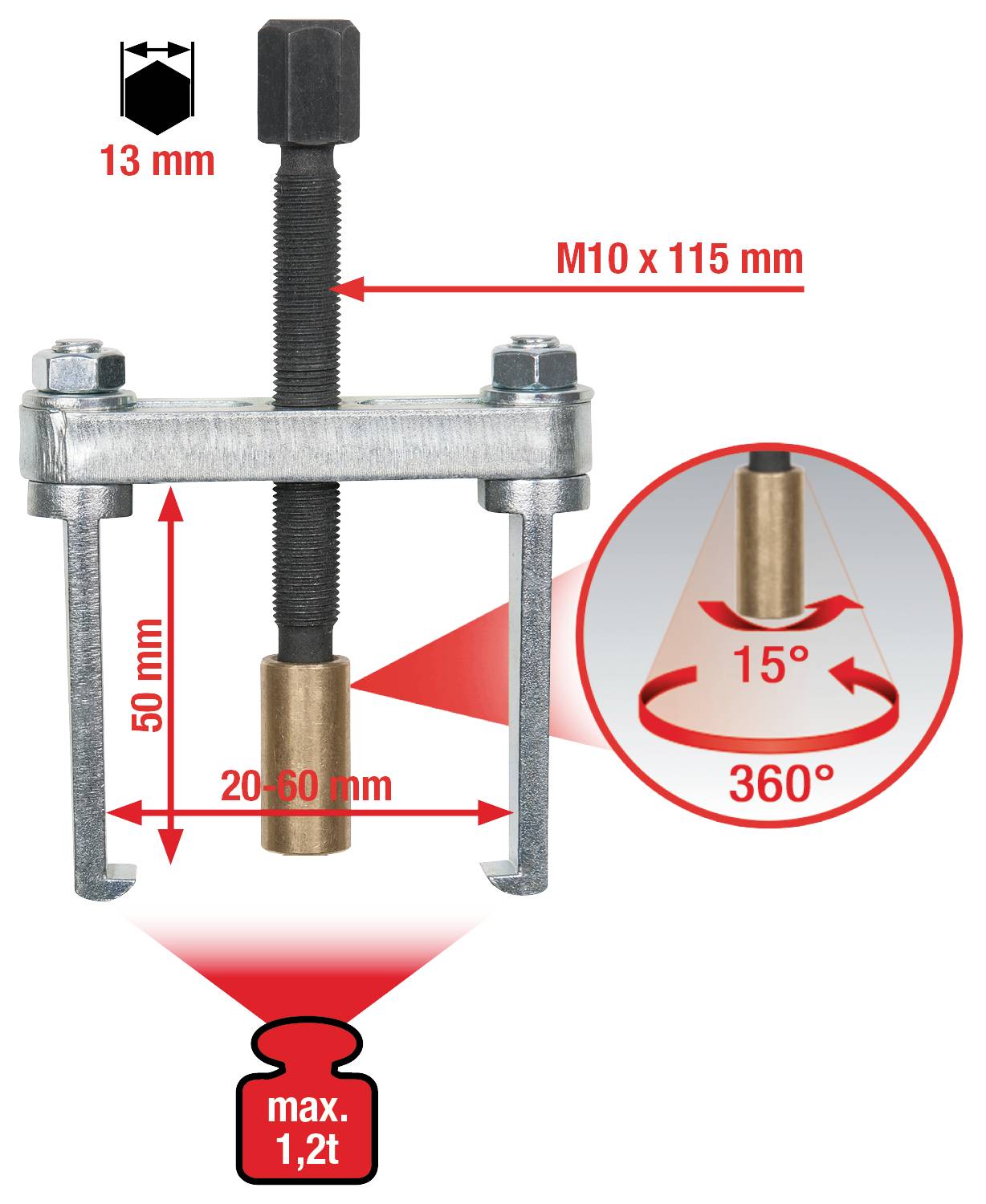

2-hookIdeal suitable for gentle removal of the windscreen wiper armsHollow puller spindle with brass cap for damage-free support on the wiper arm shaft with washing nozzleCentring piece with ball bearingExtremely robust spindle with inductively hardened threadThe spindle is guided in a movable bushingPrevents damage to the body and the wiper armSpecial tool steelApplication areas: Specially for VAG, Ford Galaxy, Seat Alhambra, Mercedes A and B-Class rear windscreen wiper with integrated washing nozzle
This text is machine translated.
This text is machine translated.
