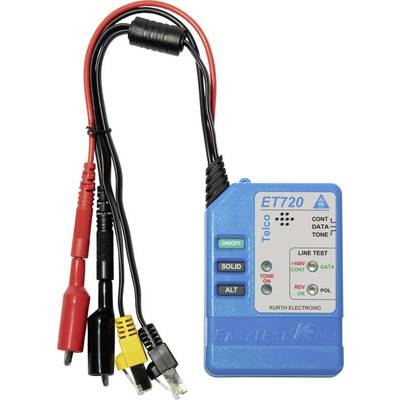

Kurth Electronic Easytest 720 Cable locator Continuity, Location, Cable tracking, Break
EAN:
Part number:
Item no:
Highlights & Details
Search signal generator for cable detector
- ET720 Easytest 720 Telco search signal generator, data port test,
- Overvoltage protection to 120 V AC/DC
- This text is machine translated.
Technical specifications
- Voltage-free testing of all types of cables, such as power cables, telephone cables, bell cables, data cables of all classes, coaxial cables, Wiring harnesses in vehicles, etc.
- Signal feed to active telephone lines
- Data port test by port finder function
- Overvoltage protection to 350V AC / DC
- 6 frequencies for broadcast sound signal can be selected with an accuracy of 1%
- 25 cm test leads made of flexible PVC with alligator clips, a test lead with RJ11 modular plug and a test lead with RJ45 plug
- Impact-resistant and weather-resistant ABS casing
- Distance between PROBE and cable up to 60 cm (with resistance between them, e.g. plaster on a wall, this distance can vary)
- Product type
Cable locator
- Max. cable length
15 km
- Function
Continuity
Location
Cable tracking
Break
- Optical display
Yes (built-in)
- Acoustic signal
Yes (built-in)
- Test sockets
Alligator clips
RJ45 plug
RJ11 plug
- Display
LED
- Dim
(L x W x H) 100 x 70 x 30 mm
- Weight (transmitter)
150 g
- Operating voltage
9 V
- Weight, information
approx., without batteries
- Width
70 mm
- Height
30 mm
- Length
100 mm
- Type
Easytest 720
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3025524 Kurth Electronic Easytest 720 Cable locator Continuity, Location, Cable tracking, Break
Description
Scope of delivery
- ET720 Easytest 720 Telco search signal generator
