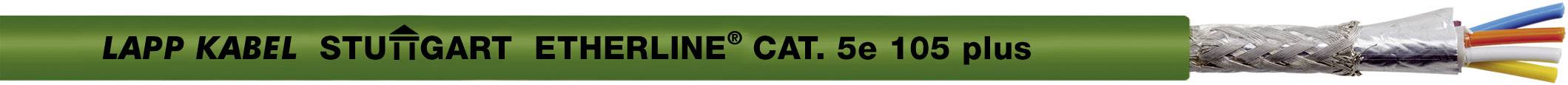

LAPP 2170636/100 Network cable CAT 5e SF/UTP 2 x 2 x 0.33 mm² + 0 2 x 0.34 mm² Green 100 m
EAN:
Part number:
Item no:
Specification
CAT 5e
Shielding
SF/UTP
Cable type
EtherLine
No. of leads
4 x
Cross section (each core)
0.33 mm²
Datasheet (PDF)
Sales and shipping:
Total (1 m = € 4.53)
€
Highlights & Details
ETHERLINE ® CAT.5e 105 plus
Technical specifications
CAT 5e
SF/UTP
- Cable type
EtherLine
- No. of leads
4 x
- Cross section (each core)
0.33 mm²
- Cross section (each core) (part 2)
0.34 mm²
- Cross section
2 x 2 x 0.33 mm² + 0 2 x 0.34 mm²
- Cable features
Simplex
Flexible
UV-resistant
Common shield
- Outside Ø
6.50 mm
- Factory colour
Green
- Content
100 m
- AWG max.
22
- Packaged
No
- Sold per metre
No
- Manufacturer part #
2170636/100
- Type
ETHERLINE CAT.5e 105 plus 2x2xAWG22/7
- Insulation material
Polyethylene (PE)
- Min. temperature range (flexible installation)
-30 °C
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+105 °C
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
- Max. length sold by the metre
100 m
- Product type
Network cable
Documents & Downloads
Datasheet
Datasheet 1334611 LAPP 2170636/100 Network cable CAT 5e SF/UTP 2 x 2 x 0.33 mm² + 0 2 x 0.34 mm² Green 100 m
