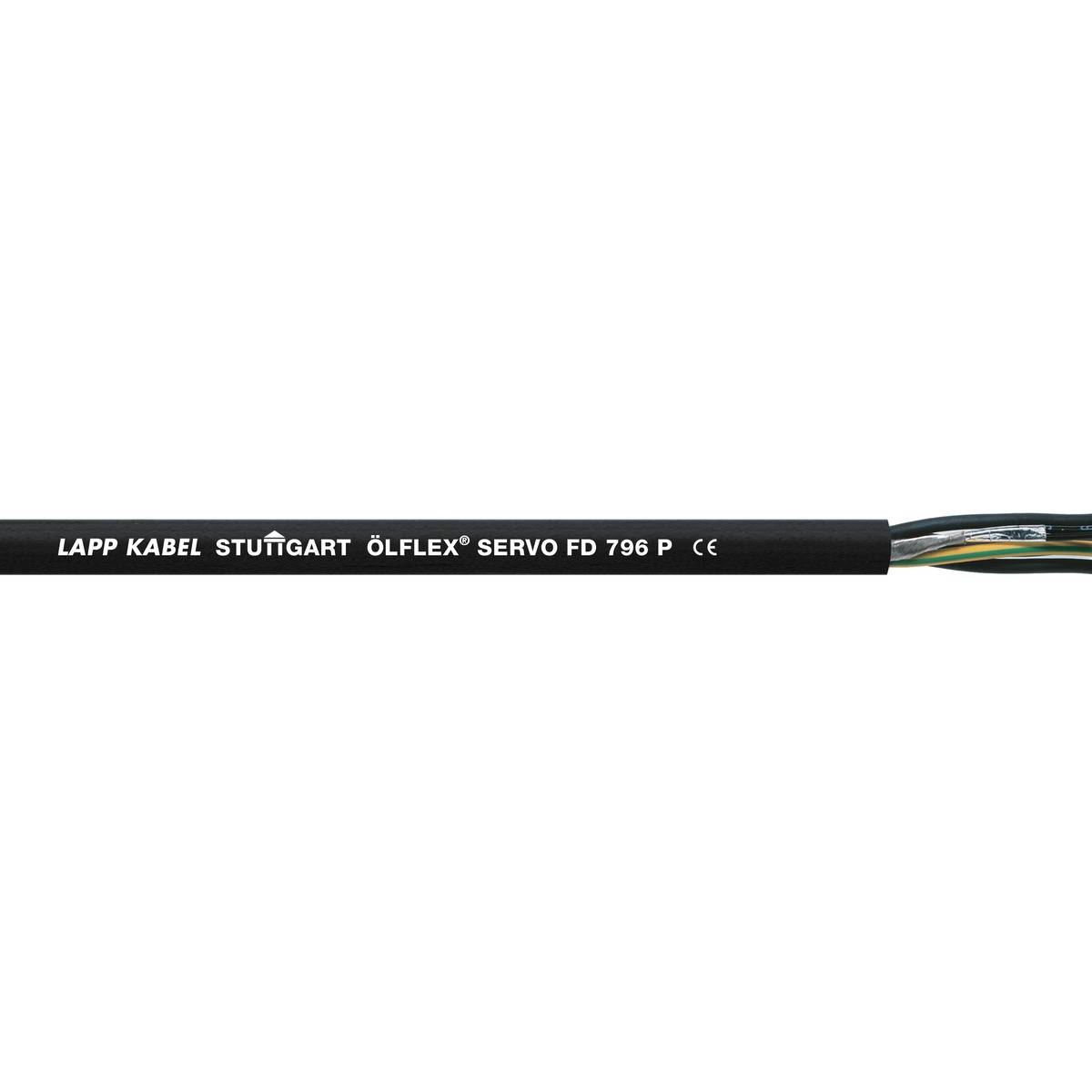

LAPP ÖLFLEX® SERVO FD 796 P Servo lead 4 G 6 mm² + 2 x 1 mm² Black 25330/50 50 m
EAN:
Part number:
Item no:
Cable type
ÖLFLEX® SERVO FD 796 P
Cross section (each core)
6 mm²
Outside Ø
17.10 mm
No. of leads
4 G
Product type
Servo lead
Datasheet (PDF)
Highlights & Details
Servo CABLE OILFLEX ® FD 796 P
Technical specifications
- Bend radius (no. of ODs for flexible installation)
7.5
- Bend radius (no. of ODs for fixed installation)
4
- Cable type
ÖLFLEX® SERVO FD 796 P
- Content
50 m
- Cross section
4 G 6 mm² + 2 x 1 mm²
- Factory colour
Black
- Cross section (each core)
6 mm²
- Cross section (each core) (part 2)
1 mm²
- Halogen-free
Yes
- Insulation material
Polyurethane
- Cable features
Halogen-free
Flame-retardant
Oil-resistant
UV-resistant
PUR coating
- Manufacturer part #
25330/50
- Type
ÖLFLEX SERVO FD 796P 4G6+(2x1)+(2x1,5)
- Nominal voltage
1000 V
- Outside Ø
17.10 mm
- Nominal voltage U0
600 V
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-50 °C
- Max. temperature range (flexible installation)
+90 °C
- Min. temperature range (flexible installation)
-40 °C
- No. of leads
4 G
- No. of leads (part 2)
2 x
- Packaged
Yes
- Core layout
Extra-fine strands according to VDE 0295, Class 6/IEC 60228. 6
- Sold per metre
No
- Product type
Servo lead
Documents & Downloads
Datasheet
Datasheet 1335064 LAPP ÖLFLEX® SERVO FD 796 P Servo lead 4 G 6 mm² + 2 x 1 mm² Black 25330/50 50 m
User & Safety Instructions
User & Safety Instructions 1335064 LAPP ÖLFLEX® SERVO FD 796 P Servo lead 4 G 6 mm² + 2 x 1 mm² Black 25330/50 50 m
Description
Suitable for highly dynamic applications in power chains under harsh conditions. As connecting wire between Servo regulator and motor as well as in an electronic drive technology can be used.
