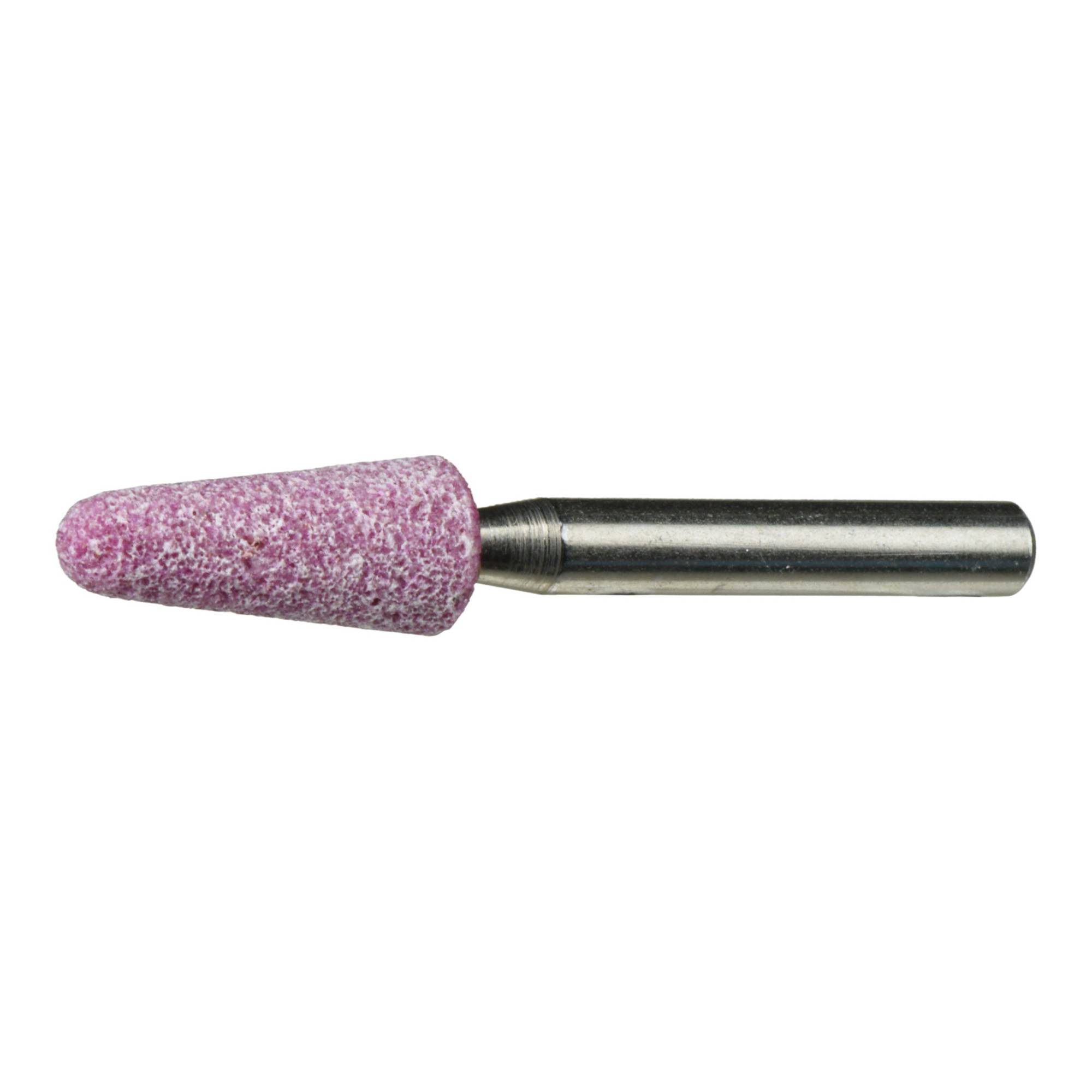

LUKAS-ERZETT A201502040647 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 3.11 / piece)
€
Highlights & Details

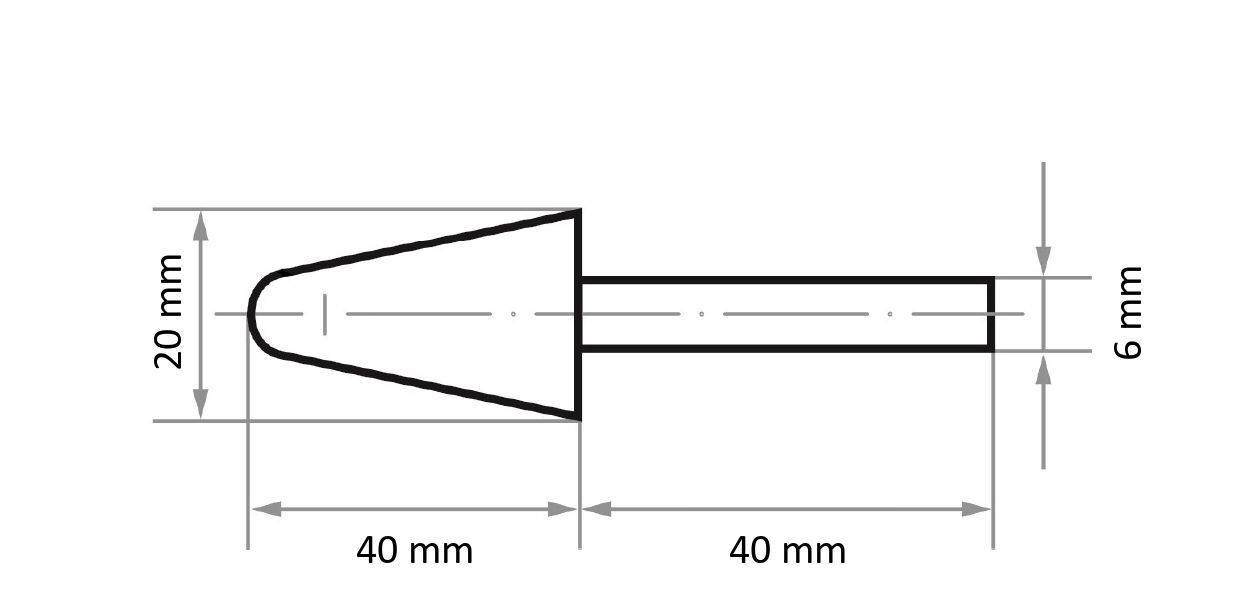

Grinding point KE round conical for stainless steel 20x40 mm shaft 6 mm | corn 36
- Perfect results on stainless steel with a mixture of dark red and pink high-quality corundum
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 6 mm
- Shaft length 40 mm
- Tool form: Round cone
- Grain size - FEPA 36
- Form group - GS: KE - cone
- Grinding material: RKD
- Hardness: O
- Binding type: V ceramic binding
- Binding: V21
- Stars: 2
- Suitability of alloyed, coated steels RM up to 1200: Suitable
- Suitability for tool steels RM up to 1300 N/mm²: Suitable
- Suitability rust, acid, heat-resistant. Steel/cast: Well suited
- Application Precision machining: Suitable
- Suitable for steel: Suitable
- Suitable for Inox/Steel: Well suited
- Product type
Grinding bit
- Shank Ø
6 mm
- Grit size
36
- Shape
round-tapered
- Content
20 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441244 LUKAS-ERZETT A201502040647 Grinding bit 20 pc(s)
Description
Perfect results on stainless steel with a mixture of dark red and pink high-quality corundum
No dangerous shank breakage thanks to high-quality steel shaft
No rust formation during grinding - use in power plant construction possible
No chrome coating
Quality-tested: High safety through regular testing
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
The RKD ceramic grinding pencil is characterized by a mixture of dark red and pink noble corundum and achieves perfect results on stainless steel. Stainless steel is one of the difficult materials to cut. They tend to "lubricate" due to their nickel content and due to poor heat conductivity, the material can overheat in the machining zone. We have developed particularly powerful tools for stainless steel, which are distinguished by outstanding removal performance, even under difficult conditions. These tools contain no iron, no sulfur or no halogens, so chemical changes (corrosion) of the material in the contact zone are usually excluded. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
No dangerous shank breakage thanks to high-quality steel shaft
No rust formation during grinding - use in power plant construction possible
No chrome coating
Quality-tested: High safety through regular testing
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
The RKD ceramic grinding pencil is characterized by a mixture of dark red and pink noble corundum and achieves perfect results on stainless steel. Stainless steel is one of the difficult materials to cut. They tend to "lubricate" due to their nickel content and due to poor heat conductivity, the material can overheat in the machining zone. We have developed particularly powerful tools for stainless steel, which are distinguished by outstanding removal performance, even under difficult conditions. These tools contain no iron, no sulfur or no halogens, so chemical changes (corrosion) of the material in the contact zone are usually excluded. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
System requirements
- Straight grinder
