LUKAS-ERZETT A202900026311 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 1.64 / piece)
€
Highlights & Details

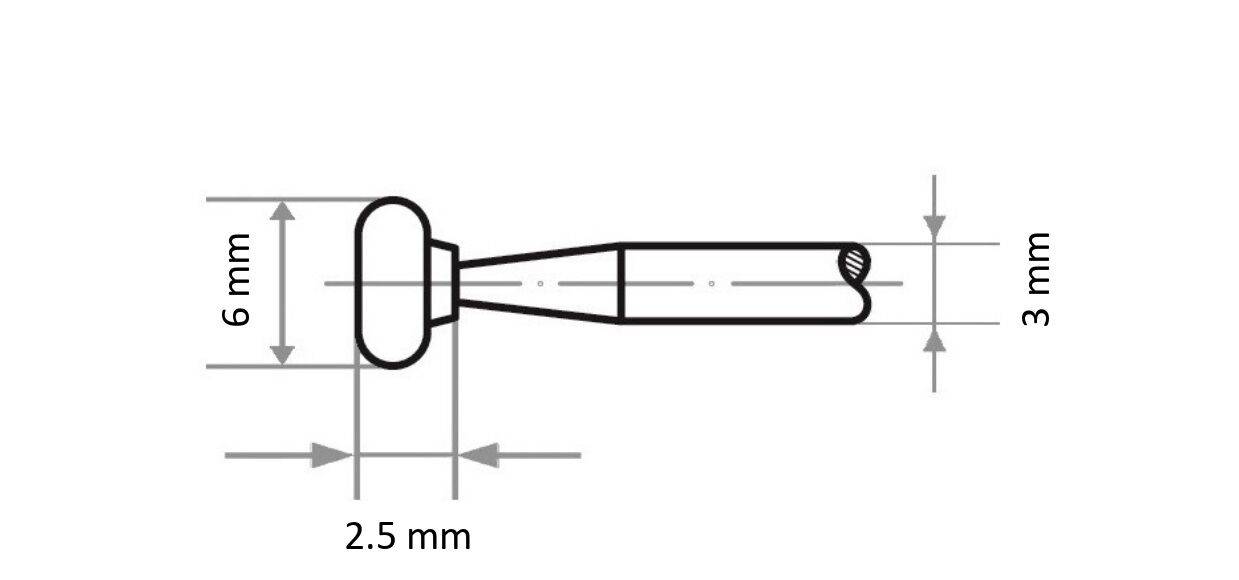

Grinding point D26 special shape for tool steel 6x2.5 mm shaft 3 mm | Korn 100
- Perfect results on tool steel with pink high-quality corundum in brown design
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 3 mm
- Shaft length 30 mm
- Tool form: Special shape
- Grain size - FEPA 100
- Form Group - GS: D - Forms mini grinding pins
- Abrasive:EKBR
- Hardness: M
- Binding type: V ceramic binding
- Binding V1/6
- Stars: 2
- Suitability of alloyed, coated steels RM up to 1200: Suitable
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Application Precision machining: Well suited
- Suitable for steel: Well suited
- Product type
Grinding bit
- Shank Ø
3 mm
- Grit size
100
- Shape
non-standard
- Content
20 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441331 LUKAS-ERZETT A202900026311 Grinding bit 20 pc(s)
Description
Perfect results on tool steel with pink high-quality corundum in brown design
No dangerous shank breakage thanks to high-quality steel shaft
No chrome coating
Stainless steel, zinc-nickel coating
High hardness and sharpness for long durability
Also efficiently splints even harder materials
Quality-tested: High safety through regular testing
Perfect dimensional stability: Fits optimally into the drive machine
The ceramic grinding pin EKBR convinces by its special grain mixture of high-quality corundum pink in brown design and achieves perfect results on tool steel. Precision is required in tool and mold making. Tool steels have a high degree of hardness and strength adapted to the intended use and therefore require special grinding tools to be able to process the workpieces up to the most narrow tolerance ranges. The grinding pins for tool and mold making are very dimensionally stable and chips even the toughest materials. Owing to its micro-crystalline design the ceramic grinding grain is extremely pleasant to splinter and thus self-sharpening. Difficult-to-machine materials such as nickel-base alloys can thus be easily processed. Moreover, a high service life is achieved through the processing of special grain qualities. Our wide and deep offer allows you to process even "the smallest corner".
This text is machine translated.
No dangerous shank breakage thanks to high-quality steel shaft
No chrome coating
Stainless steel, zinc-nickel coating
High hardness and sharpness for long durability
Also efficiently splints even harder materials
Quality-tested: High safety through regular testing
Perfect dimensional stability: Fits optimally into the drive machine
The ceramic grinding pin EKBR convinces by its special grain mixture of high-quality corundum pink in brown design and achieves perfect results on tool steel. Precision is required in tool and mold making. Tool steels have a high degree of hardness and strength adapted to the intended use and therefore require special grinding tools to be able to process the workpieces up to the most narrow tolerance ranges. The grinding pins for tool and mold making are very dimensionally stable and chips even the toughest materials. Owing to its micro-crystalline design the ceramic grinding grain is extremely pleasant to splinter and thus self-sharpening. Difficult-to-machine materials such as nickel-base alloys can thus be easily processed. Moreover, a high service life is achieved through the processing of special grain qualities. Our wide and deep offer allows you to process even "the smallest corner".
This text is machine translated.
System requirements
- Straight grinder
