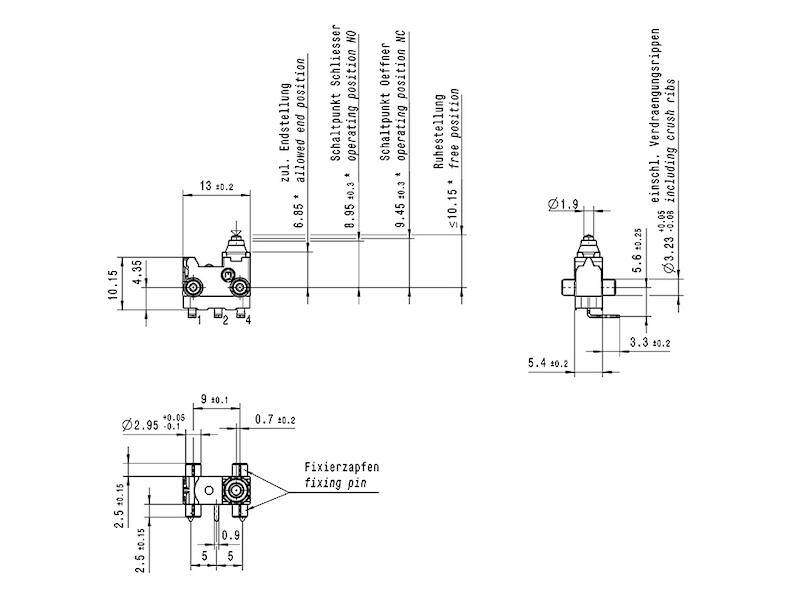

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Marquardt 01065.3603-01 Microswitch 30 V DC 0.1 A 1 x On/(On) Actuator side: IP67/Connection side: IP00 momentary 1 pc(s
Part number:
Item no:
Technical specifications
- Functions
momentary
- Connection
Solder pins (right-angle)
- Contact material
Au
- Operation type
1-button
- Contact type
1 change-over
- Switch position
1 x On/(On)
- Switching voltage
30 V DC
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Durability
200000
Actuator side: IP67/Connection side: IP00
- Actuating force
1.6 N
- Content
1 pc(s)
- Type
01065.3603-01
- Product type
Microswitch
