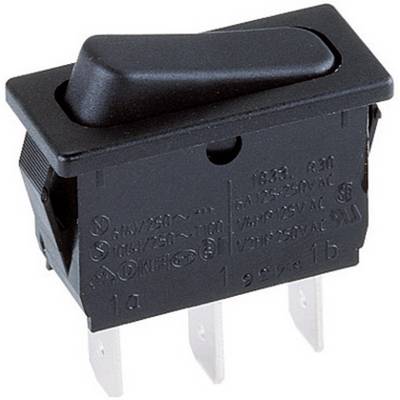

Marquardt 1833.3302 Toggle switch 1833.3302 250 V AC 10 A 1 x On/On IP40 latch 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
352 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.78
10
8% = € 0.21
€ 2.57
25
10% = € 0.29
€ 2.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.78 / piece)
€
Highlights & Details
Rocker Series 1830
Technical specifications
- Approvals ENEC, UL, CSA
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
1 x On/On
- Print motif
None
- Contact material
Ag (Silver)
- Connection
Type C CEE 7/16 plug 6.3 mm
- Switching voltage
250 V AC
- Switching current (max.)
10 A
- Length
31.5 mm
- Width
14 mm
- Recess depth
27 mm
- Front panel thickness
3 mm
IP40
- Content
1 pc(s)
- Dim
(L x W) 31.5 mm x 14 mm
- RoHS-compliant
- Front panel cut-out
30 x 11 mm
- Type
1833.3302
- Material (details)
Plastic
- Type
1 x On/On
- Switching current (inductive)
4 A
- Switching capacity
10 A/250 V AC
- Switching current
10 (4) A
- Connection
Spade plug 6.3 mm
- Product type
Toggle switch
Documents & Downloads
Datasheet
Datasheet 700720 Marquardt 1833.3302 Toggle switch 1833.3302 250 V AC 10 A 1 x On/On IP40 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 700720 Marquardt 1833.3302 Toggle switch 1833.3302 250 V AC 10 A 1 x On/On IP40 latch 1 pc(s)
Certificate
Certificate 700720 Marquardt 1833.3302 Toggle switch 1833.3302 250 V AC 10 A 1 x On/On IP40 latch 1 pc(s)
Description
Tried and tested switching principle with long life and a strong operating characteristics.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
