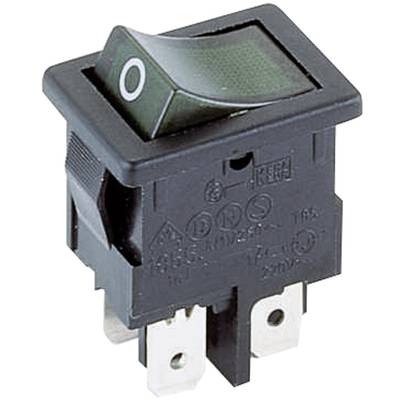

Marquardt 1855.1108 Toggle switch 1855.1108 250 V AC 4 A 2 x Off/On IP40 latch 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
123 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.50
5
6% = € 0.34
€ 5.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.50 / piece)
€
Highlights & Details
Marquardt 1855.1108 Toggle switch 1855.1108 250 V AC 4 A 2 x Off/On IP40 latch 1 pc(s)
Technical specifications
- Approvals ENEC, UL, CSA
- Casing/button colour
Black
Green
- Functions
latch
- Lighting type
Area illumination
- Colour
Green
- Bulb type
Glow lamp
- Switch position
2 x Off/On
- Print motif
0
- Contact material
Ag (Silver)
- Connection
Type C CEE 7/16 plug 4.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
4 A
- Length
21 mm
- Width
15 mm
- Height
22 mm
- Front panel thickness
3 mm
IP40
- Content
1 pc(s)
- Dim
(L x W x H) 21 x 15 x 22 mm
- RoHS-compliant
- Front panel cut-out
19.2 x 12.9 mm
- Type
1855.1108
- Type
2 x on/off
- Switching current (inductive)
1 A
- Switching current
4 (1) A
- Connection
Spade plug 4.8 mm
- Product type
Toggle switch
Documents & Downloads
Datasheet
Datasheet 700592 Marquardt 1855.1108 Toggle switch 1855.1108 250 V AC 4 A 2 x Off/On IP40 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 700592 Marquardt 1855.1108 Toggle switch 1855.1108 250 V AC 4 A 2 x Off/On IP40 latch 1 pc(s)
Description
Miniature-rocker switch with lighting
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
