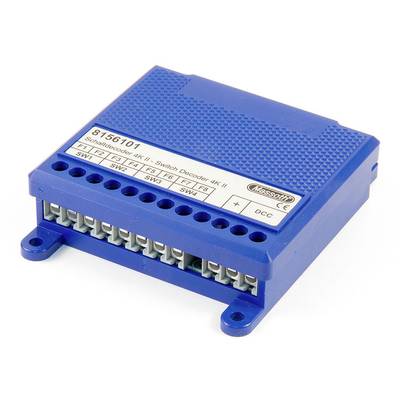

Massoth 8156101 Switch decoder Module, w/o cable, w/o connector

NEW: Now with larger screw terminals
4-way decoder for controlling and switching of motor and point drives of all kinds. All commercially available point drives can be switched. 4 mechanically protected additional contact inputs allow switching via manual contacts, e.g. from a control panel or signal box. The DiMAX switch decoder is a universally applicable switch decoder, which switches up to four switching outputs via digital signal and, if desired, also contact-dependant or individually positioned. For example, with the DiMAX switch decoder digitize a crane truck and thus move the boom in the horizontal and vertical and control the shovel or rope winch. The settings of the switching decoder are of course carried out via CV programming and can usually be carried out via any digital system. In addition, the DiMAX switch decoder directly supports the POM procedure, the popular programming on the track (Program on Main). Of course, regular coil-branch drives (2- and 3-wire) with impulse switching or even real motor-branch drives can be realistically switched, or up to 8 light outputs. As a special feature, the switching decoder has 4 programmable switching inputs, which can switch the switching outputs directly by contact triggering. These are protected by the housing and can be reached from the inside via solder connection. Switch a switch or any other function via a manual button in a track plan or by crossing a track contact with a locomotive.

This text is machine translated.
