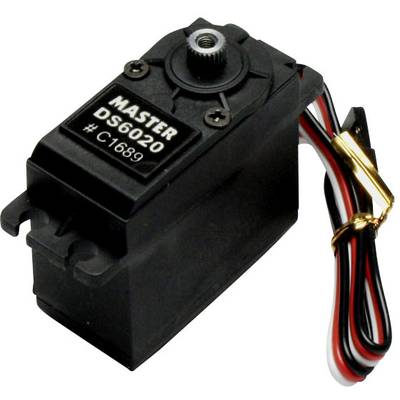

Master Modellbau Standard servo DS6020 MG Digital servo Gear box material: Titanium Connector system: Uni (Graupner / JR
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€
Highlights & Details
Master Modellbau Standard servo DS6020 MG Digital servo Gear box material: Titanium Connector system: Uni (Graupner / JR / Futaba)
- High quality branded servo
- High efficiency, low power consumption
- High adjustment accuracy and powerful
Technical specifications
- Dim
(L x W x H) 40.5 x 20 x 44.5 mm
- Length
40.5 mm
- Width
20 mm
- Height
44.5 mm
- Weight
55 g
- Servo torque (4.8 V)
95 Ncm
- Actuation time at 4.8 V
0.14 s (45°)
- Gear box
Titanium
- Type of bearing
Double ball bearing
- Servo technology
Digital servo
- Connector system
Uni (Graupner / JR / Futaba)
- Voltage
Low
- Manufacturer part #
C1689
- Min. operating voltage
4.8 V
- Operating voltage
4.8 - 6 V
- Max. operating voltage
6 V
- Product type
Standard servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1556176 Master Modellbau Standard servo DS6020 MG Digital servo Gear box material: Titanium Connector system: Uni (Graupner / JR
Description
High-quality master digital servo of the 10-kg class with Titan gear and ball bearings. By a top price/performance ratio catapults this servo to the top in its price class.
Ideal for: Aircraft/Helicopter/Car/boat
This text is machine translated.
Ideal for: Aircraft/Helicopter/Car/boat
This text is machine translated.
Features
- 6-way bolted casing
- Servo middle part of aluminum.
Scope of delivery
- Servo
- Servo Levers
- Control discs
- Fitting Material
- User manual.
