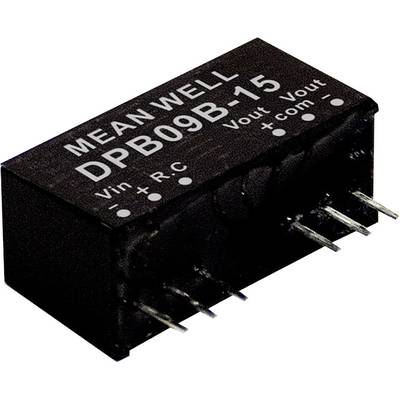

MEAN WELL DPB09B-15 DC/DC converter (module) 300 mA 9 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
3 Piece(s)
Sales and shipping:
Number
Total (€ 15.96 / piece)
€
Only 3 Piece(s) available
Highlights & Details
MEANWELL DC/DC converter modules SPB series 09, dpb 09 SIP8/SIL 8 Case Single and Dual Output Input voltage ratio: 2:1 Power: 9 W
- In the SIP8/SIL8-casing
- For direct PCB mounting
- 2:1 input voltage range
- No minimum load required
- Input/output insulation 1500 V DC
- Protection: short circuit (continuously), overload and input voltage
- Efficiency up to 89%
- Remote ON/OFF control
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter (module)
- Type
DPB09B-15
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Max. output current
300 mA
- Output current (max.) - rounded
300 mA
- Efficiency (max.)
87 %
9 W
- Insulation voltage
1500 V DC
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 24 x 9.6 x 11.2 mm
- Height
11.2 mm
- Length
24 mm
- Width
9.6 mm
- Output voltage (max.)
15 V DC
-15 V DC
- Weight
5 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2143457 MEAN WELL DPB09B-15 DC/DC converter (module) 300 mA 9 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2143457 MEAN WELL DPB09B-15 DC/DC converter (module) 300 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2143457 MEAN WELL DPB09B-15 DC/DC converter (module) 300 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Description
Features
- In the SIP8/SIL8-casing
- For direct PCB mounting
- 2:1 input voltage range
- No minimum load required
- Input/output insulation 1500 V DC
- Protection: short circuit (continuously), overload and input voltage
- Efficiency up to 89%
- Remote ON/OFF control
