MEAN WELL ELG-150-24AB-3Y LED driver Constant voltage 150 W 3.2 - 6.25 A 21.6 - 26.4 V DC 3-in-1 dimmer, Suitable for fl
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

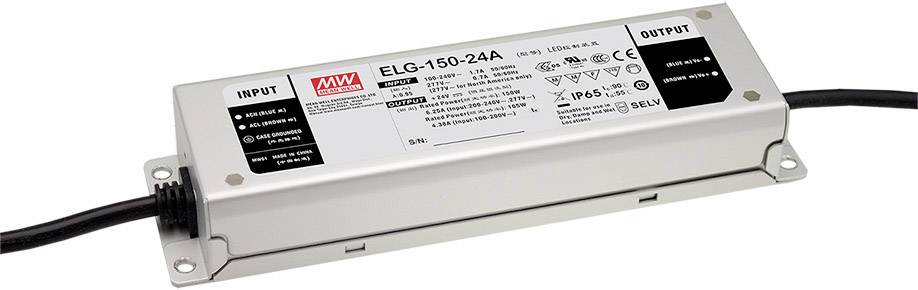

LED switching power supply ELG-150-24AB-3Y
- Constant voltage
- 21.6 - 26.4 V DC
- 3.2 - 6.25 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 219 x 63 x 35.5 mm
- Factory colour
Metal
- Output voltage (max.)
26.4 V DC
- Output voltage (min.)
21.6 V DC
- Test mark
SELV, UL, MM, ENEC, CB
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
dimmable
adjustable
Surge protection
Overvoltage
IP65
- Connection
Open end cable
- Max. power
150 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
3.2 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
950 g
- Power range
150 W (max)
- Type
Pulsed
- Width
63 mm
- Height
35.5 mm
- Length
219 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2113603 MEAN WELL ELG-150-24AB-3Y LED driver Constant voltage 150 W 3.2 - 6.25 A 21.6 - 26.4 V DC 3-in-1 dimmer, Suitable for fl
User & Safety Instructions
User & Safety Instructions 2113603 MEAN WELL ELG-150-24AB-3Y LED driver Constant voltage 150 W 3.2 - 6.25 A 21.6 - 26.4 V DC 3-in-1 dimmer, Suitable for fl
Warranty Terms
Warranty Terms 2113603 MEAN WELL ELG-150-24AB-3Y LED driver Constant voltage 150 W 3.2 - 6.25 A 21.6 - 26.4 V DC 3-in-1 dimmer, Suitable for fl
Description
With the ELG series of MEAN WELL we perform for you LED power supplies in the program, which is characterized by its variety.
With a setup time of less than 500 ms and a stand-by consumption of less than 0.5W fulfill the power supplies of the series ELG also in September 2016 Eco-design directive 2009/125/EC. intensified limit
This text is machine translated.
With a setup time of less than 500 ms and a stand-by consumption of less than 0.5W fulfill the power supplies of the series ELG also in September 2016 Eco-design directive 2009/125/EC. intensified limit
This text is machine translated.
Features
- Constant voltage
- Independent operating device
- Metal housing
- Wide-range input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
- SELV compliant
- IP65, output voltage and current limitation via internal potentiometer on the bottom of the housing can be set, dimming via running control cable, 3 in 1 dimming function (0...10 V DC, PWM, 100k ohm potentiometer)
- In the primary cable running protective conductor
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
