Buy MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

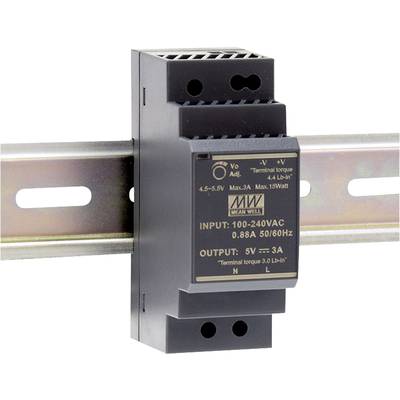

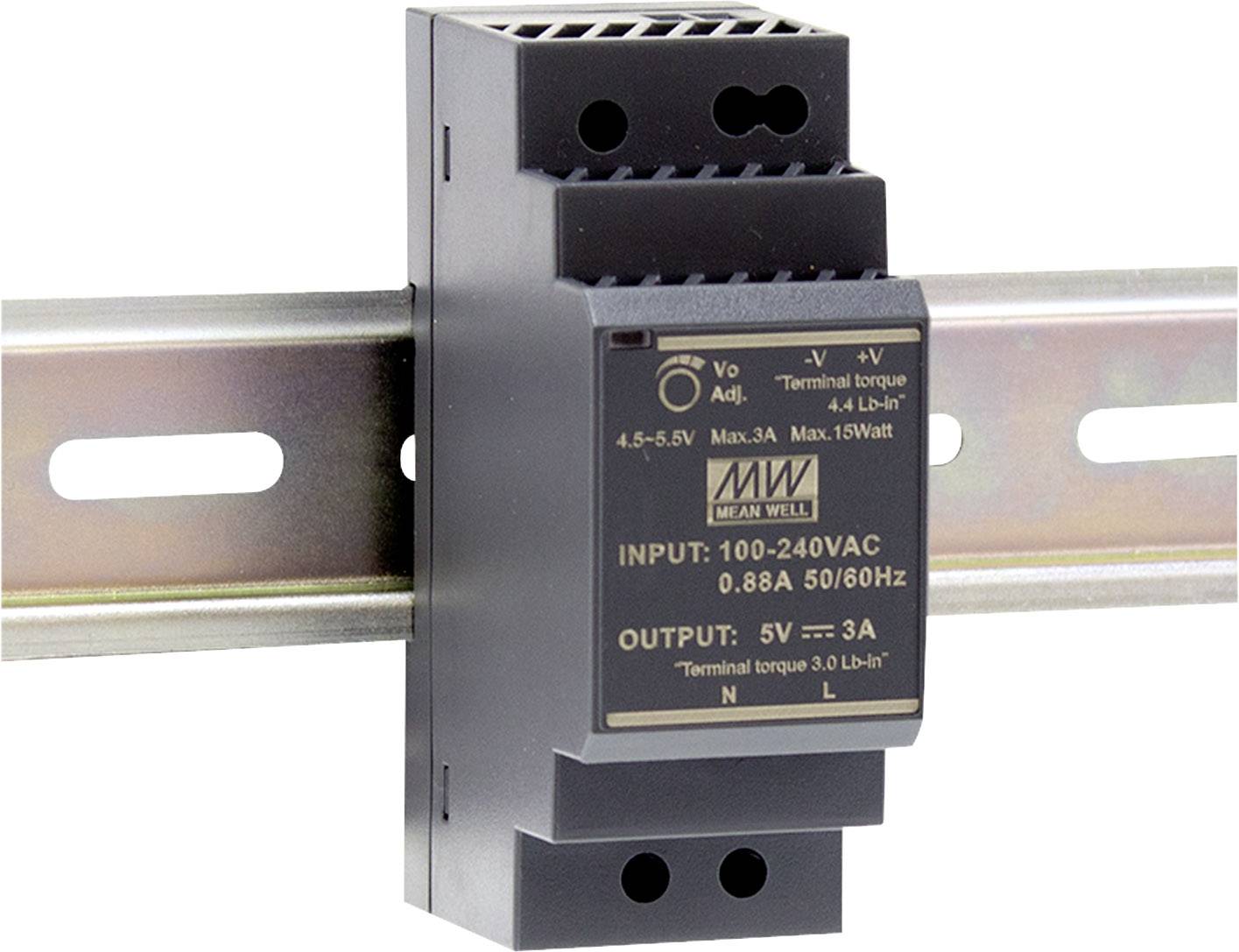

Image similar

Datasheet (PDF)

160 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 14.28 / piece)

€

Report legal concerns

Highlights & Details

DIN-Rail Mounting Single Output 1-phase power: 30 W

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Low idle power
LED display for power-on
Insulation category II

Technical specifications

Nominal input voltage: 230 V/AC
115 V/AC

Type: Pulsed

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 48 V DC

Input voltage: 85-264 V AC

Input voltage (max.): 264 V AC

Max. output current: 0.75 A

Output current (max.) - rounded: 750 mA

: 36 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 35 x 54.5 x 90 mm

Weight: 120 g

Output voltage (max.): 55.2 V DC

Output voltage (min.): 43.2 V DC

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Manufacturer part #: HDR-30-48

Content: 1 pc(s)

MTBF: 968100 h

Width: 54.5 mm

Height: 90 mm

Length: 35 mm

Max. temperature: +70 °C

Min. temperature: -30 °C

Type: HDR-30-48

Screen size diagonal (inches): 24 inch

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Product type

Min. input voltage

MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894083

This article

36 W

264 V AC

48 V DC

Adjustable

230 V/AC115 V/AC

1 x

750 mA

Rail mounted PSU (DIN)

85 V AC

MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837893

60 W

264 V AC

24 V DC

Adjustable

115 V/AC230 V/AC

1 x

2.5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-60-12 Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837938

60 W

264 V AC

12 V DC

Adjustable

115 V/AC230 V/AC

1 x

5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-40-12 Rail mounted PSU (DIN) 12 V DC 3.34 A 40.08 W No. of outputs:1 x Content 1 pc(s)

Item no:1837978

40.08 W

264 V AC370 V DC

12 V DC

Adjustable

115 V/AC230 V/AC

1 x

3.34 A

Rail mounted PSU (DIN)

90 V AC127 V DC

MEAN WELL DRA-40-24 Rail mounted PSU (DIN) 24 V DC 1.7 A 40.8 W No. of outputs:1 x Content 1 pc(s)

Item no:1838057

40.8 W

264 V AC370 V DC

24 V DC

Adjustable

115 V/AC230 V/AC

1 x

1.7 A

Rail mounted PSU (DIN)

90 V AC127 V DC

MEAN WELL HDR-30-5 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:1894082

15 W

264 V AC

5 V DC

Adjustable

230 V/AC115 V/AC

1 x

3 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-24 Rail mounted PSU (DIN) 24 V DC 1.5 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894084

36 W

264 V AC

24 V DC

Adjustable

230 V/AC115 V/AC

1 x

1.5 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-15 Rail mounted PSU (DIN) 15 V DC 2 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:1894085

30 W

264 V AC

15 V DC

Adjustable

230 V/AC115 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-12 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:1894086

24 W

264 V AC

12 V DC

Adjustable

230 V/AC115 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-100-48 Rail mounted PSU (DIN) 48 V DC 1.92 A 92.2 W No. of outputs:1 x Content 1 pc(s)

Item no:1894087

92.2 W

264 V AC

48 V DC

Adjustable

230 V/AC115 V/AC

1 x

1.92 A

Rail mounted PSU (DIN)

85 V AC

Documents & Downloads

Datasheet

Datasheet 1894083 MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1894083 MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1894083 MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

Description

Even smaller and more powerful than the first generation (DR series) on DIN rail power supplies (DIN-rail) in a plastic housing is the new series HDR of mean well. Especially in the building automation and building control, the power supplies with 30 W (HDR-30), which correspond to protection class II The HDR-family of mean corrugated has a step-shaped plastic housing, has an input voltage range of 85 to 264 VAC (also available) and offers 277 VAC models with 5 V, 12 V, 15 V, 24 V and 48 V.
Thanks to the slim design measures the height is only 90 mm, the width 2 SU (35 mm). They can be used on the standardised DIN rail TS-35/7.5 and TS-35/15. To their properties also include a low no-load consumption of< 0,3W, a high degree of efficiency up to 91% and an adjustable DC output voltage as well as a wide operating temperature range (-30 to +70 °C). Also a LED display for operation is available.
The HDR-series of mean corrugated meets the European standard DIN EN 43880, the regulation of the European Union for harmonic current according to EN61000-3-2 class A, as well as all safety regulations according to UL 60950-1, UL508 and EN 61558-2-16.

This text is machine translated.

Features

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Low idle power
LED display for power-on
Insulation category II
