Buy MEAN WELL HDR-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

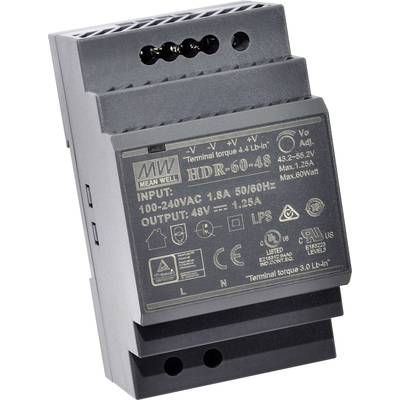

A DIN rail mounting power supply by Mean Well, model HDR-60-48, with input range 100-240VAC and 48V output.

Image similar

Datasheet (PDF)

507 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 19.32 / piece)

€

Report legal concerns

Highlights & Details

DIN-Rail Mounting Single Output 1-phase power: 60 W

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Low idle power
LED display for power-on
Insulation category II

Technical specifications

Nominal input voltage: 230 V/AC
115 V/AC

Type: Pulsed

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V DC

Input voltage: 85-264 V AC

Input voltage (max.): 264 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 52.5 x 54.5 x 90 mm

Weight: 190 g

Output voltage (max.): 29 V DC

Output voltage (min.): 21.6 V DC

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Manufacturer part #: HDR-60-24

Content: 1 pc(s)

MTBF: 927600 h

Width: 54.5 mm

Height: 90 mm

Length: 52.5 mm

Max. temperature: +70 °C

Min. temperature: -30 °C

Type: HDR-60-24

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Product type

Min. input voltage

MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837893

60 W

264 V AC

24 V DC

Adjustable

115 V/AC

1 x

2.5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-60-12 Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837938

60 W

264 V AC

12 V DC

Adjustable

115 V/AC

1 x

5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-40-12 Rail mounted PSU (DIN) 12 V DC 3.34 A 40.08 W No. of outputs:1 x Content 1 pc(s)

Item no:1837978

40.08 W

264 V AC

12 V DC

Adjustable

115 V/AC

1 x

3.34 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-40-24 Rail mounted PSU (DIN) 24 V DC 1.7 A 40.8 W No. of outputs:1 x Content 1 pc(s)

Item no:1838057

40.8 W

264 V AC

24 V DC

Adjustable

115 V/AC

1 x

1.7 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL HDR-30-5 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:1894082

15 W

264 V AC

5 V DC

Adjustable

230 V/AC

1 x

3 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894083

36 W

264 V AC

48 V DC

Adjustable

230 V/AC

1 x

750 mA

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-24 Rail mounted PSU (DIN) 24 V DC 1.5 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894084

36 W

264 V AC

24 V DC

Adjustable

230 V/AC

1 x

1.5 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-15 Rail mounted PSU (DIN) 15 V DC 2 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:1894085

30 W

264 V AC

15 V DC

Adjustable

230 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-12 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:1894086

24 W

264 V AC

12 V DC

Adjustable

230 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-100-48 Rail mounted PSU (DIN) 48 V DC 1.92 A 92.2 W No. of outputs:1 x Content 1 pc(s)

Item no:1894087

92.2 W

264 V AC

48 V DC

Adjustable

230 V/AC

1 x

1.92 A

Rail mounted PSU (DIN)

85 V AC

Documents & Downloads

Datasheet

Datasheet 1894079 MEAN WELL HDR-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1894079 MEAN WELL HDR-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 1894079 MEAN WELL HDR-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1894079 MEAN WELL HDR-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Description

The new HDR series from Meanwell is smaller and more powerful than the first generation (DR series) of DIN rail power supplies (DIN rail) in the plastic casing. 60W power supplies (HDR-60), meeting protection class II are used particularly in building automation and house control. The Meanwell HDR family features a layered plastic enclosure, an input voltage range of 85 to 264VAC (also available 277VAC), and offers 5V, 12V, 15V, 24V and 48V models.
Thanks to its slim design, the height measures only 90mm, the width 3SU (52.5mm). They can be mounted on the standard rails TS-35/7.5 as well as TS-35/15. Its properties also include low no-load consumption of <0.3W, high efficiency of up to 91% and an adjustable DC output voltage as well as a wide operating temperature range (-30 to +70 °C). There is also an LED display for operation.
The HDR-series from Meanwell complies with the European standard DIN EN43880, the regulation of the European Union for harmonic current as per EN61000-3-2 class A as well as all safety regulations according to UL60950-1, UL508 and EN61558-2-16.

This text is machine translated.
