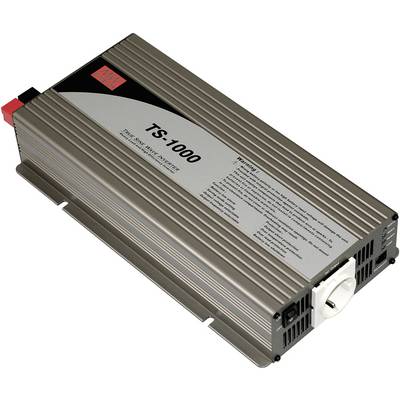

MEAN WELL Inverter TS-1000-212B 1000 W 12 V DC - 200 V, 220 V, 230 V, 240 V Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€
Only 1 Piece(s) available
Technical specifications
- Input voltage
10.5 - 15 V DC
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
200 V
220 V
230 V
240 V
1000 W
- Input voltage
12 V DC
- Inputs
Screw terminals
- Output
PG socket
- Nominal load efficiency
90 %
- Weight
4300 g
- Cooling method
Fan
- Width
184 mm
- Height
70 mm
- Length
345 mm
- Peak output power
2000 W
- Type
TS-1000-212B
- Features
Sine wave
- Connection
CEE 7/4 socket
- Input voltage (max.)
15 V DC
- Min. input voltage
10.5 V DC
- Type
Synchronised
Documents & Downloads
Datasheet
Datasheet 1292353 MEAN WELL Inverter TS-1000-212B 1000 W 12 V DC - 200 V, 220 V, 230 V, 240 V Sine wave
User & Safety Instructions
User & Safety Instructions 1292353 MEAN WELL Inverter TS-1000-212B 1000 W 12 V DC - 200 V, 220 V, 230 V, 240 V Sine wave
Information
Information 1292353 MEAN WELL Inverter TS-1000-212B 1000 W 12 V DC - 200 V, 220 V, 230 V, 240 V Sine wave
Warranty Terms
Warranty Terms 1292353 MEAN WELL Inverter TS-1000-212B 1000 W 12 V DC - 200 V, 220 V, 230 V, 240 V Sine wave
Description
True sine wave output (THD <3%) · Power On/Off switch · Front panel indicator for operation status · Battery low alarm, Battery low shutdown · Protections: over voltage/over temperature/overload/output short/input reverse polarity · Built-in fan On/Off control function
Features
- Real sine output (THD< 3%)
- On/Off switch
- Status indicator
- Battery alarm, battery shutdown
- Protected against overvoltage, overheating, overload, short-circuit and polarity reversal
- Regulated fan (on/off)
