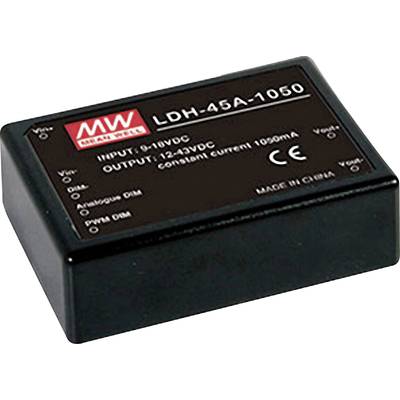

Image similar
Image similar
MEAN WELL LDH-45B-1050 DC/DC converter (print) 45.15 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€
Technical specifications
- PSU type: SMPS
- Number of inputs: 1.
- Type
LDH-45B-1050
- Min. input voltage
18 V DC
- Input voltage (max.)
32 V DC
- No. of outputs
1 x
45.15 W
- Connection
Pins
- Dim
(L x W x H) 22.70 x 75.00 x 53.00 mm
- Height
53.00 mm
- Length
22.70 mm
- Width
75.00 mm
- Content
1 pc(s)
- Output current (min.)
1.05 A
- Output voltage (max.)
43 V DC
- Output voltage (min.)
21 V DC
- Weight
138.00 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 1292780 MEAN WELL LDH-45B-1050 DC/DC converter (print) 45.15 W No. of outputs: 1 x Content 1 pc(s)
Information
Information 1292780 MEAN WELL LDH-45B-1050 DC/DC converter (print) 45.15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1292780 MEAN WELL LDH-45B-1050 DC/DC converter (print) 45.15 W No. of outputs: 1 x Content 1 pc(s)
Description
DC/DC step-up converter · Constant current output · Wide input voltage range · Built-in EMI filter, (comply with EN55015) · Built-in PWM, + analog DIM, remote ON/OFF · Short circuit and over temperatute protections · Suitable for driving illumination LED · Cooling by free air convection · LDH-_: with solder pins · LDH-_W: with wires
Features
- DC/DC step-up converter
- Constant current output
- Wide input voltage range
- Built-in EMI filter (EN 55015)
- PWM, + analogue DIM, Remote ON/OFF
- Protection against: Short-circuit and overheating
- Suitable for controlling LED lighting
- Cooling by free convention
- LDH: design with solder pins
- LDH_W: design with wires
