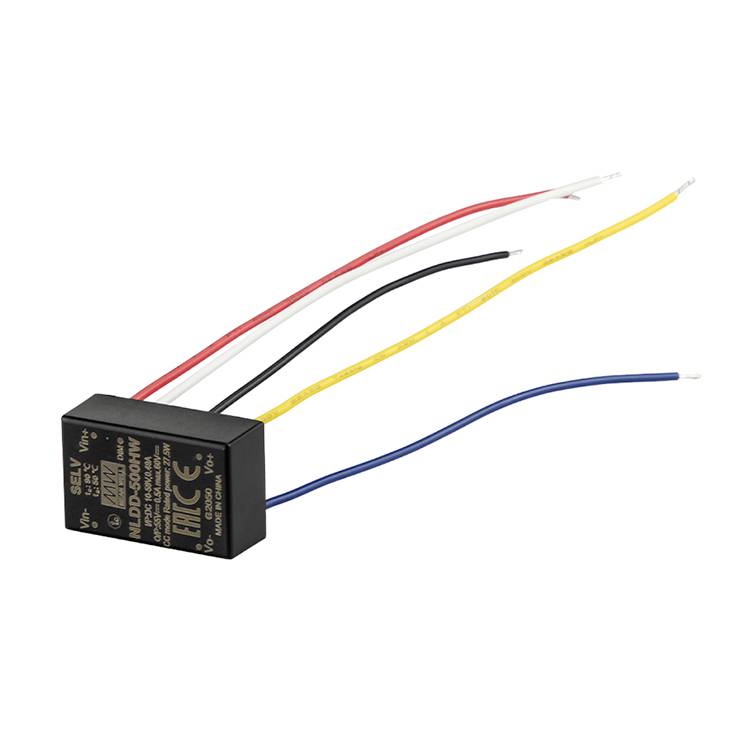

MEAN WELL NLDD-500HW DC/DC converter 6 V 0.5 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€
Only 4 Piece(s) available
Highlights & Details
Mean Well DC/DC-LED-driver 0.5 A 6 V 52 V PWM analogue control voltage
- Application: LightingHousing: Closed
- This text is machine translated.
Technical specifications
- Connection type, input: Stranded wireConnection type, output: Stranded wireLength of feed line, input: 10 cmLength of feed line, output 10 cm
- Type
NLDD-500HW
- Min. input voltage
10 V DC
- Input voltage (max.)
56 V DC
- Output voltages
6 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
96 %
- Dim
(L x W x H) 32.10 x 20.50 x 12.50 mm
- Height
12.50 mm
- Length
32.10 mm
- Width
20.50 mm
- Content
1 pc(s)
- Output voltage (max.)
52 V
- Output voltage (min.)
6 V
- Max. temperature
+50 °C
- Min. temperature
-40 °C
- Weight
18 g
- Product type
DC/DC converter
