Buy MEAN WELL RD-125B SMPSU 133 W

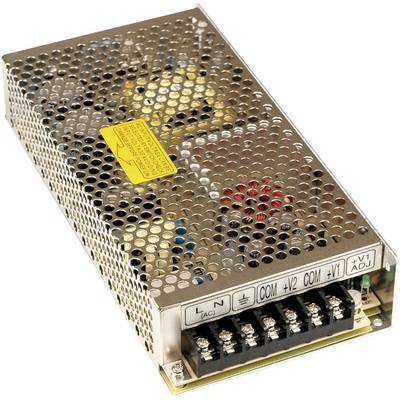

A metal enclosure with ventilation slots, showing the transformer and power connections. There are multiple terminal blocks on the side.

Image similar

Datasheet (PDF)

18 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 29.40 / piece)

€

Report legal concerns

Highlights & Details

Switching power supply case

Output /
Power 133 W
Screw terminal

Technical specifications

Dim: (L x W x H) 199.00 x 98.00 x 38.00 mm

Height: 38.00 mm

Length: 199.00 mm

Width: 98.00 mm

Connection: Screw terminal

Type: closed

Type: RD-125B

Input voltage (max.): 264 V AC

Min. input voltage: 88 V AC

No. of inputs: 1 x

No. of outputs: 2 x

: 133 W

Output voltage: +5/+24 V/DC

Output current (details): 2-10/0.4-5 A

Type: Synchronised

Weight: 700.00 g

Product type: SMPSU

Documents & Downloads

Datasheet

Datasheet 1292936 MEAN WELL RD-125B SMPSU 133 W

Information

Information 1292936 MEAN WELL RD-125B SMPSU 133 W

Warranty Terms

Warranty Terms 1292936 MEAN WELL RD-125B SMPSU 133 W

Description

Enclosed case, screw terminals · AC input range 115V/230V selectable by switch · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Long life 105°C electrolytic capacitors · RID-125: isolated outputs
