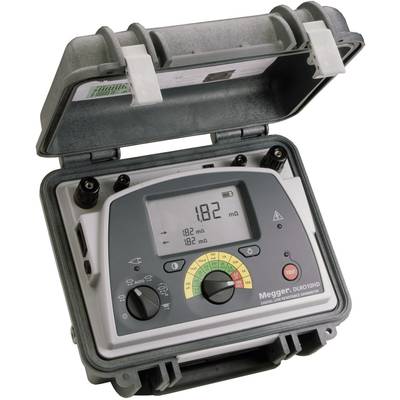

Megger DLRO10HD KC1-TL3-C Ohmmeter
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 4,192.44 / piece)
€
Only 2 Piece(s) available
Highlights & Details
DLRO10 HD, Micro Ohmmeter with 10-A-test current
- Five test modes can be selected with a rotary switch
- Automatic start function
- Resolution up to 0.1 PH, measuring range up to 2500 ΩPrufstrom 0.1 mA up to 10 A
- Selection of high or low output power
- Input protection up to 600 V
- Rechargeable battery or mains operation
- Extremely robust housing IP65 degree of protection IP54, when the cover is closed.
- Mains Operation
Technical specifications
- Measuring range: 0 - 2500,0 μΩ, 250.00 mΩ, 2500,0 mΩ, 25,000 MW, 250.00 Ω, 2500,0 Ω
- Test current: 0.1 mA, 1 mA, 10 mA, 100 mA, 1 A, 10 A (DC)
- Measurement category CAT III/300 V (with test leads DH7)
- Display (details): Main display with 5 digits and next to Display with 2 x 5.
IP65
- Power supply (details)
6 V, 7 Ah, lead-gel battery, power supply 90 - 264 V, 50-60Hz
- Dim
(L x W x H) 31.5 x 28.5 x 18.1 cm
- Weight
6.7 kg
- Height
18.1 cm
- Length
31.5 cm
- Width
28.5 cm
- Frequency range
Manufacturer's standards (no certificate)
- Display type
Digital (LCD)
- Reading category
CAT III 300 V
- Reading type
Resistance
- Product type
Ohmmeter
Documents & Downloads
Datasheet
Datasheet 106276 Megger DLRO10HD KC1-TL3-C Ohmmeter
User & Safety Instructions
User & Safety Instructions 106276 Megger DLRO10HD KC1-TL3-C Ohmmeter
Conformity certificate
Conformity certificate 106276 Megger DLRO10HD KC1-TL3-C Ohmmeter
Description
The DLRO10 HD is a Micro Ohmmeter with up to 10-A-test current. The device offers you five test modes, a high resolution up to 0.1 Mikro-Ohm, a basic accuracy up to 0.2 percent and a special mode for the measurement of inductive test specimens. The measuring device is perfectly suitable for many different applications, such as the testing of welded joints or the winding resistance large motors and transformers. The robust outdoor housing has protection class IP65, with battery IP54.
This text is machine translated.
This text is machine translated.
Features
- IP65 outdoor housing (lid closed)
- Large, illuminated outdoor-LC-Display
- Mains or battery operated.
Scope of delivery
- KC1 Kelvin clip 3 m · Test lead bag (in lid) · CD-ROM · Printed quick start guide · Complete CD instructions.
- This text is machine translated.
