Metrel MI 3209 Insulation tester 999 V 9.9 Ω
EAN:
Part number:
Item no:
Technical specifications
- Product type
Insulation tester
- Test voltage
999 V
- Reading type
Insulation resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
0.01 MΩ - 9.9 TΩ
IP65/67
- Dim
(L x W x H) 33.5 x 34.5 x 16 cm
- Display type
Digital
- Max. frequency
500 Hz
- Min. frequency
10 Hz
- Frequency range
10 Hz - 500 Hz
- Insulation resistance (max.)
9.9 Ω
- Voltage reading range (max.)
550 V
- Reading category
CAT IV 600 V
- Width
34.5 cm
- Height
16 cm
- Length
33.5 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2481889 Metrel MI 3209 Insulation tester 999 V 9.9 Ω
Description

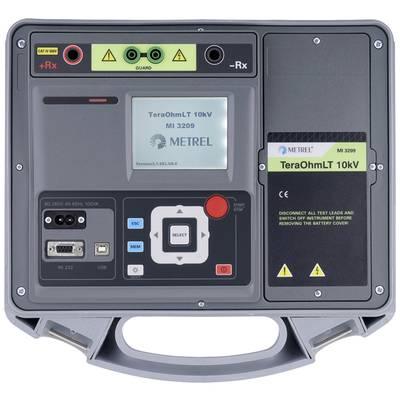

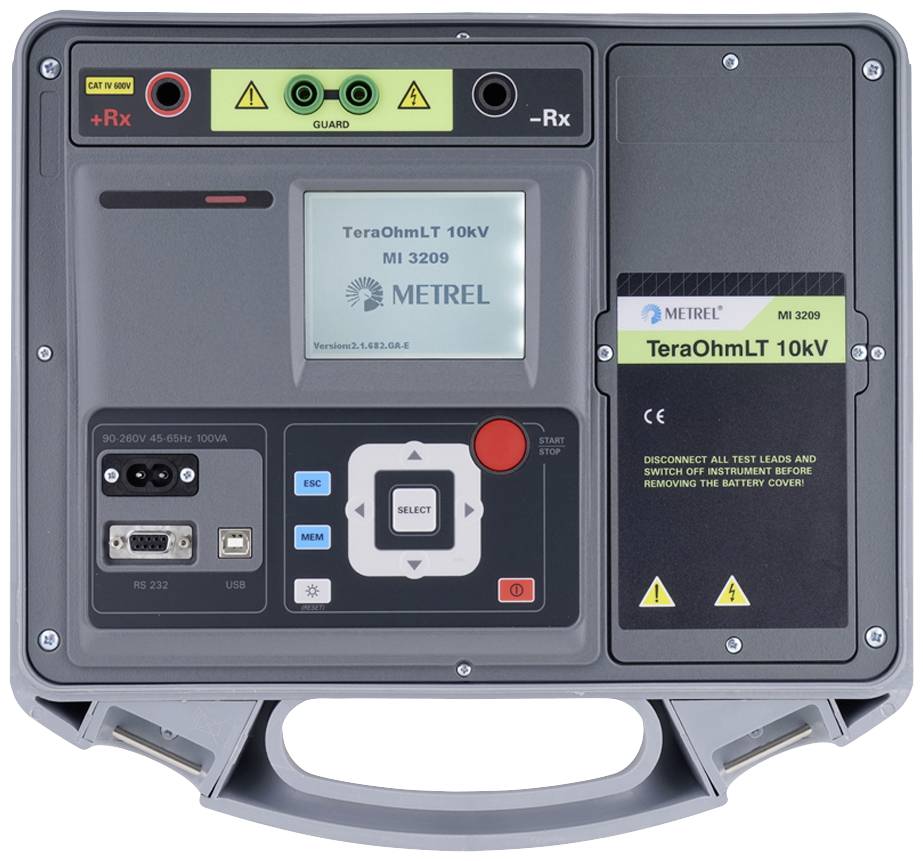

The MI 3209 TeraOhm LT 10kV portable meter measures the resistance of DC voltages up to 10 kV. With excellent IP protection (IP65) and power and battery supply, the device is at home even in the most demanding working environments.
Measurement functions
Insulation measurement
DIAGNOSTIC CHECK (PI, DAR, DD)
Step voltage test
Testing of dielectric strength (DC) up to 10 kV
Voltage and frequency measurement up to 550 V TRMS
This text is machine translated.
Measurement functions
Insulation measurement
DIAGNOSTIC CHECK (PI, DAR, DD)
Step voltage test
Testing of dielectric strength (DC) up to 10 kV
Voltage and frequency measurement up to 550 V TRMS
This text is machine translated.
Features
- Testing of power transformers
- Measurement of converters in distribution networks
- Check the insulation resistance of rotating machines and cables
- Regular inspection and maintenance of production equipment
- Troubleshooting and analysis of all kinds of insulation problems
- Testing of high-voltage generators
- Testing of over-voltage conductors
Scope of delivery
- Device MI 3209 TeraOhmLT 10 kV
- 10 kV test leads, 2 m, 2 items (red, black)
- 10 kV alligator clips, 2 pieces (red, black)
- Test lead, green, 2 m
- Crocodile clip, green
- Power cable;
- PC software SW 0113 HVLink PRO (license A 1275)
- Manual "Guide for modern insulation tests"
- User manual
- Calibration certificate
