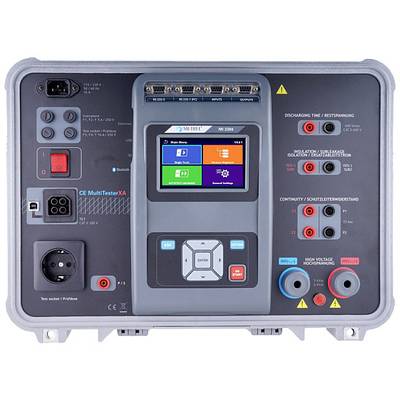

Metrel MI 3394 LN VDE tester kit
EAN:
Part number:
Item no:
Number
Total (€ 7,869.75 / piece)
€
Technical specifications
- Product type
VDE tester kit
Manufacturer's standards (no certificate)
- Dim
- Reading range
- Type
MI 3394 LN
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536367 Metrel MI 3394 LN VDE tester kit
Description
THE LINE set is intended for automated testing of devices during production. The MI 3394, in conjunction with the A 1460, offers the user full hands-free operation while the test is carried out. Meterl ES Manager software allows you to configure test procedures (sequences) that are uploaded to the tester and used for automated testing. Test sequences can be started via a remote control pedal or the Tip Commander. Predefined test limits are used to evaluate PASS/FAIL status, with results automatically saved to the microSD memory card. Unique ID of the tested machines / systems can be added via barcode scanners during the test procedure.
This text is machine translated.
This text is machine translated.
Features
- User-defined automatic test sequences via PCSW Meterl ES Manager.Execution of test sequences using A 1460 CE test adapter.Hands-free operation.PASSED / FAILED and warning lights.Programmable inputs and outputs.Programmable messages, pauses and several different execution commands.The execution of all tests via a test connection.Built-in microSD memory card (8GB supplied with unit).A 1460 has an integrated in robust fuse housing, which enables countless replacement of protection fuses.A 1460 has built-in parallel test ports to the test socket (allows the user to connect custom test ports).The Test Commander has a built-in LED torch lamp and PASSED/FAILED status LEDs.Execution of the test commands via the Test Commander test button.A barcode reader allows the identification of devices with a barcode.
Scope of delivery
- Mi 3394 CE measuring device CE MultiTesterXAA 1460 CE test adapterA 1105 Barcode-readerA 1511 Tip ComanderContinuity test cable 2.5 m, 2 piecesContinuity test cable 1.5 m, 2 piecesInsulation test lead, red 2.5 mInsulation test lead, black 2.5 mCrocodile clip, black, 3 piecesCrocodile clip, red, 2 piecesDischarge cablePower cable;Bag for accessoriesCalibration certificateRS232 cable / EthernetUSB cable / USB isolatorA 1521 USB IsolatorCD with operating instructions (full version)PC SW Meterl ES Manager
Hints
Supplied with German license.
