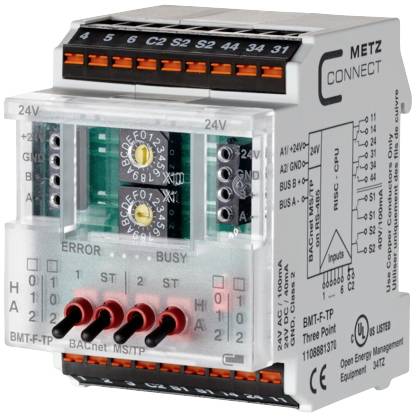

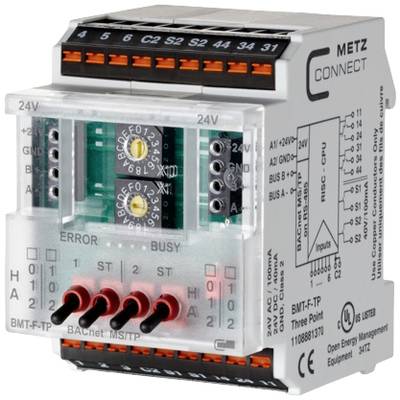

Metz Connect 1108881370 24 V AC, 24 V DC 100 mA No. of outputs:4 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Max. Current consumption 100 mA/AC; 40 mA/DC
- Relay output: 2x two-stage
- Switching voltage relay output max. 250 V/AC
- Continuous current relay output 6 A / relay
- Semiconductor output 2 NO contact
- Switching voltage semiconductor output max. 40 V AC/DC
- Continuous current semi-conductor output 100 mA
- Connection terminal 4-pin
- Colour: grey
- Inputs
6 digital
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
- Output voltage (nominal)
24 V AC
24 V DC
- No. of outputs
4 x
- Dim
(L x W x H) 60 x 50 x 69.30 mm
- Weight
126 g
- Output voltage (max.)
24 V AC
24 V DC
- Operating temperature (max.)
+55 °C
- Operating temperature (min.)
-5 °C
- Manufacturer part #
1108881370
- Content
1 pc(s)
- Width
50 mm
- Height
69.30 mm
- Length
60 mm
IP40
- Type
BMT-F-TP BACnet MS/TP
Documents & Downloads
Datasheet
Datasheet 3164649 Metz Connect 1108881370 24 V AC, 24 V DC 100 mA No. of outputs:4 x Content 1 pc(s)
Description
The BACnet MS/TP three-point module with 6 digital inputs, 2 two-stage relay outputs and 2 digital outputs were developed for decentralized switching tasks. It is suitable e.g. multistage pumps and fans Use roller blinds. In this case, the relay contacts must be protected by suitable load-dependent measures. Via a BACnet client, the inputs and outputs can be switched and queried using standard objects. Input terminals 1 - 6 are connected with the C2 two-pole through potential-free switches or contacts. The module has a manual control level for the outputs. The module address and the bit rate are set via two switches on the front side. Suitable for decentralized mounting on support rail TH35 as per IEC 60715 in electric distributors. Connection with spring clamps (Push-In).
This text is machine translated.
This text is machine translated.
Features
- Intelligent components
- BACnet
- BACnet MS/TP
- BACnet MSTP
- BACnet I/Os
- I/O module
- I/O components
- Mixing modules
- Digital input - output
- RS485
- Decentralized mounting
- 45 mm cap size
