Buy Microchip Technology PIC16F690-I/SO Embedded microcontroller SOIC 20 8-Bit 20 MHz I/O number 18

A rectangular, black integrated circuit with eight metal connections on each side, lying on a white surface.

Image similar

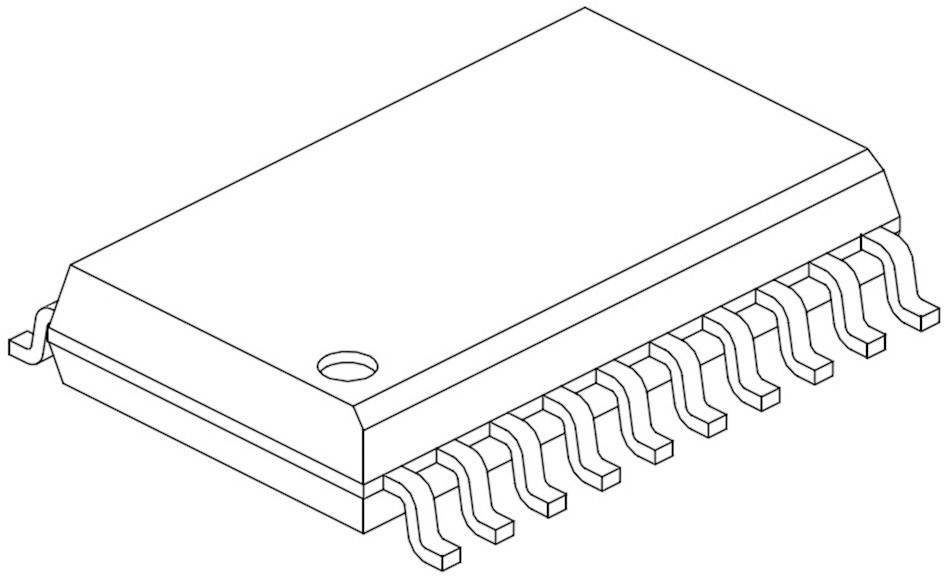

Line drawing of an integrated circuit with multiple pins along the sides, illustrated at a perspective angle.

1/2

Image similar

Product type

Embedded microcontroller

Clock speed

20 MHz

Series

PIC® 16F

Type

PIC16F690-I/SO

Manufacturer

Microchip Technology

Datasheet (PDF)

132 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 4.03 / piece)

€

Report legal concerns

Technical specifications

Type: PIC16F690-I/SO

Product type: Embedded microcontroller

Manufacturer: Microchip Technology

Manuf. code: MCP

Enclosure: SOIC 20

Clock speed: 20 MHz

Series: PIC® 16F

Core size: 8-Bit

Processor core: PIC

Oscillator type: Internal

Peripherals: Brown-out Detect/Reset
POR
PWM
WDT

I/O number: 18

Program memory type: FLASH

Supply voltage (max.): 5.5 V

Supply voltage (min.): 2 V

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Data converter (embedded microcontroller): A/D 12x10b

EEPROM size: 256 x 8

Connectivity: I²C
SPI
UART/USART

Program memory size: 7 KB (4 K x 14)

RAM size: 256 x 8

RoHS-compliant

Type: PIC16F690-I/SO

Casing: SOIC 20

Documents & Downloads

Datasheet

Datasheet 160433 Microchip Technology PIC16F690-I/SO Embedded microcontroller SOIC 20 8-Bit 20 MHz I/O number 18
