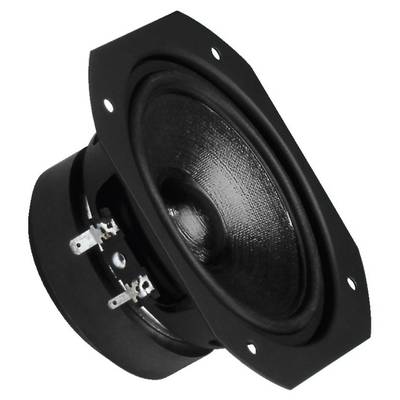

Monacor MSH-115 4 inch 11.5 cm Mid-range speaker 50 W 8 Ω Recessed speaker
EAN:
Part number:
Item no:
10 Piece(s)
Sales and shipping:
Number
Total (€ 47.05 / piece)
€
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 85 Hz
- Max. Frequency range: fx-10000 Hz
- Maximum capacity 120 WMAX (400-5000 Hz)
- Nominal load (P): 50WRMS
- Avg. Sound pressure (1W/m): 89 dB
- Suspension compliance (cms): 0.8 mm/N
- Moved mass (MMS): 4.5 g
- Mechanical quality (Qms): 1.98
- Electrical quality (Qes): 0.55
- Total quality (Qts): 0.43
- Equivalent volume (Vas): 4 l
- Dc resistance (Re): 6.3 ohm
- Power factor (BxL): 4.8 Tm
- Schwingspulenind. (Le): 0.3 mH
- Voice coil diameter: 25 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-1.5 mm
- Eff. Cone area (sd): 55 cm2
- Magnet weight: 230 g
- Weight: 0.6 kg
- Product type
Mid-range speaker
- Speaker size (inch)
4 inch
- Speaker size (cm)
11.5 cm
- RMS capacity
50 W
- Max. load
120 W
- Min. frequency
49 Hz
- Max. frequency
10000 Hz
- Impedance
8 Ω
- Sound pressure
87 dB
- Recess diameter
10.1 cm
- Recess depth
11 cm
- Weight
600 g
- Features
Recessed speaker
- Frequency range
49 Hz - 10000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332239 Monacor MSH-115 4 inch 11.5 cm Mid-range speaker 50 W 8 Ω Recessed speaker
Description
Features
- Hi-Fi mid-range
- High-end technology suitable for the SPH-. . . Series
- Specially coated diaphragm
- Highly restrictive dust cap
- Extra-flat basket (does not need will be!)
- Top-Linearitat
- Optimum Ground Drive Ratio
- Large broadband technology
- Hi-fi for highest demands
- This text is machine translated.
