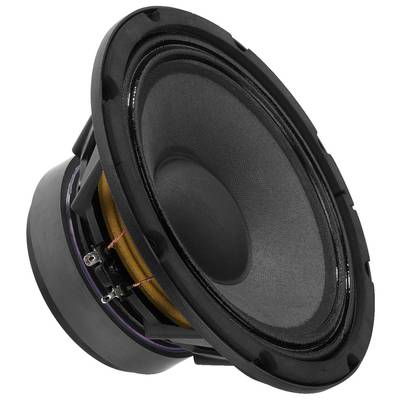

Monacor SP-8/150PRO 8 inch 20.32 cm Subwoofer 150 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
3 Piece(s)
Sales and shipping:
Number
Total (€ 68.90 / piece)
€
Only 3 Piece(s) available
Technical specifications
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 56 Hz
- Max. 3-3000 Hz frequency range: f
- Maximum capacity 300 WMAX
- Nominal load (P): 150WRMS
- Avg. Sound pressure (1W/m): 93 dB
- Suspension compliance (cms): 0.35 mm/N
- Moved mass (MMS): 22.8 g
- Mechanical quality (Qms): 1.52
- Electrical quality (Qes): 0.41
- Total quality (Qts): 0.32
- Equivalent volume (Vas): 22 l
- Dc resistance (Re): 7.2 ohm
- Power factor (BxL): 11,96 Tm
- Schwingspulenind. (Le): 2.0 mH
- Voice coil diameter: diameter. 50 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-6 mm
- Eff. Cone area (sd): 213 cm2
- Magnet weight: 850 g
- Weight: 1.9 kg
- Product type
Subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.32 cm
- RMS capacity
150 W
- Max. load
300 W
- Min. frequency
3 Hz
- Max. frequency
3000 Hz
- Impedance
8 Ω
- Sound pressure
93 dB
- Recess diameter
18.5 cm
- Recess depth
100 mm
- Weight
2.52 kg
- Frequency range
3 Hz - 3000 Hz
Documents & Downloads
Documents & Downloads
Datasheet
Datasheet 1332631 Monacor SP-8/150PRO 8 inch 20.32 cm Subwoofer 150 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1332631 Monacor SP-8/150PRO 8 inch 20.32 cm Subwoofer 150 W 8 Ω
Description
Description
Features
- Professional PA woofer from IMG Stage Line. This exception speaker from the L-RAY bass module combines the extremely small 20-cm format a high load capacity, a good level of efficiency and a stunning mechanical stability, making it a real woofer for limit frequencies, for the one 30-cm-PA-bass (12) needs. PA Compact Woofer, subwoofer, 300WMAX, 150WRMS, 8 Ohm
- Heavy-duty 20 cm woofer and subwoofer (8")
- Heat-resistant voice coil and vented pole drive system
- Very long-stroke interpretation for deep and loud bass playback
- Progressive membrane no voltage for high reliability
- Sturdy cast aluminum basket
- Ideal for 2-way systems and compact subwoofer"
- This text is machine translated.
