Multimetrix ERT 201 Earth ground meter
EAN:
Part number:
Item no:
Number
Total (€ 424.37 / piece)
€
Only 4 Piece(s) available
Highlights & Details
ERT 201 digital earth resistance tester
- Earthing measurement via 2-wire or 3-wire method
- 3 MEASURING RANGES: 20 Ω / 200 Ω / 2000 Ω
- DATA-HOLD function
- Operation via batteries, device indicates battery capacity
- Designed to meet the requirements of IEC-1010 / EN 61010
- Supplied in carrying case
Technical specifications
- Ranges and resolutions for earthing measurement:
- 0…19.99 Ω (0.01 Ω)
- 0…199.9 Ω (0.1 Ω)
- 0…1999 Ω (1 Ω)
- Reading range - voltage
0 - 200 V AC
- Dim
(L x W x H) 100 x 27.5 x 26 mm
- Weight
550 g
- Content
1 pc(s)
- Height
26 mm
- Length
100 mm
- Width
27.5 mm
- Insulation resistance range
Manufacturer's standards (no certificate)
- Display
LCD
- Reading category
CAT III 150 V
- Measuring type
Ground spike
- Type
ERT 201
- Product type
Earth ground meter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2366268 Multimetrix ERT 201 Earth ground meter
Conformity certificate
Conformity certificate 2366268 Multimetrix ERT 201 Earth ground meter
Description
The Multimetrix ERT 201 is an easy-to-use digital earth tester. It was developed to meet the requirements of IEC-1010 / EN 61010.
The ERT 201 can be used to perform ground testing using the 2-wire or 3-wire method.
A test current of 2 mA enables a measurement of the earthing resistance resistance, without tripping of residual current circuit breakers in the circuit to be tested.
The result of the last measurement remains on the display until the next measurement (data hold).
This text is machine translated.
The ERT 201 can be used to perform ground testing using the 2-wire or 3-wire method.
A test current of 2 mA enables a measurement of the earthing resistance resistance, without tripping of residual current circuit breakers in the circuit to be tested.
The result of the last measurement remains on the display until the next measurement (data hold).
This text is machine translated.

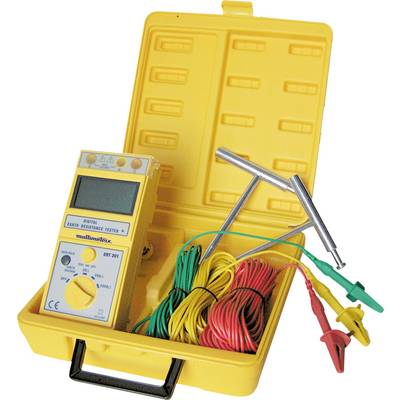

Scope of delivery
- 3 test leads (15 m red, 10 m yellow, 5 m green)
- 2 earth (T-shaped)
- 1 user manual (FR-EN)
