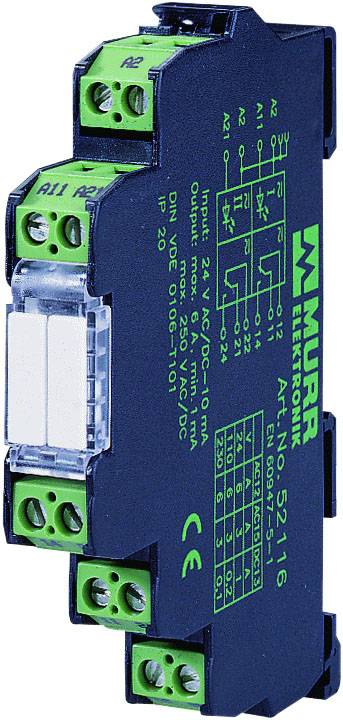

Murrelektronik 52160 Industrial relay Nominal voltage: 230 V DC/AC Switching current (max.): 6 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Contact type
1 change-over
Nominal voltage
230 V DC/AC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 55.45 / piece)
€
Technical specifications
- Mounting type: Snaps onto mounting rail (EN 60715)
- LED display: LED (green)
- Minimum load current 10 mA (12 V/DC)
- Test isolation voltage 4 kV
- Switching frequency: Max. 10 Hz
- Product type
Industrial relay
- Type
52160
- Connection
Screw terminal
- Response time
10 ms
- Fall time
15 ms
- Contact type
1 change-over
- Contact material
AgSnO2
- Nominal voltage
230 V DC/AC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
- Durability
20000000 switching cycles
- Features
+ LED display
- Max. temperature
+55 °C
- Min. temperature
-20 °C
- Length
70 mm
- Width
12.4 mm
- Height
90 mm
- Dim
(L x W x H) 70 x 12.4 x 90 mm
- Content
1 pc(s)
