Buy KS Tools 6203606 Puller Clamping range (details) 50 - 400 mm No. of hooks 2

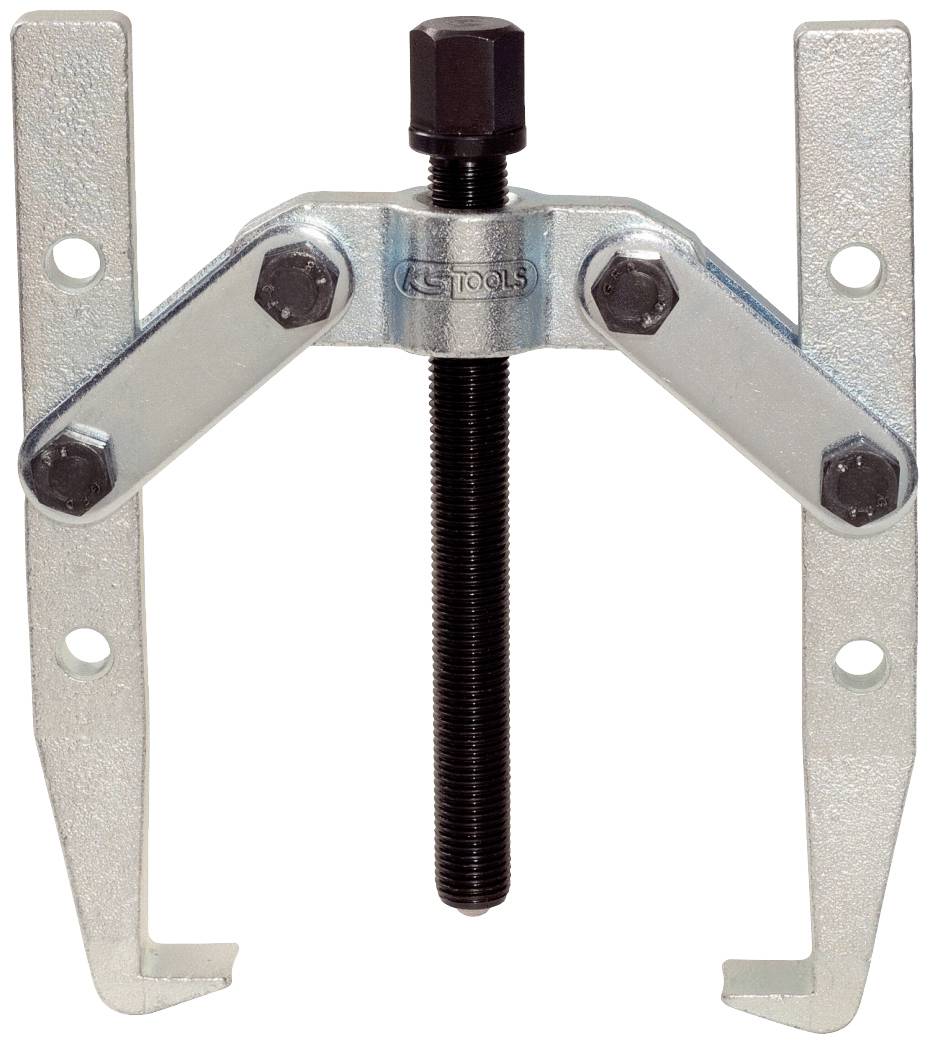

Two-pronged puller with metal arms and a central screw, used for loosening tightly fitted components such as bearings or gears.

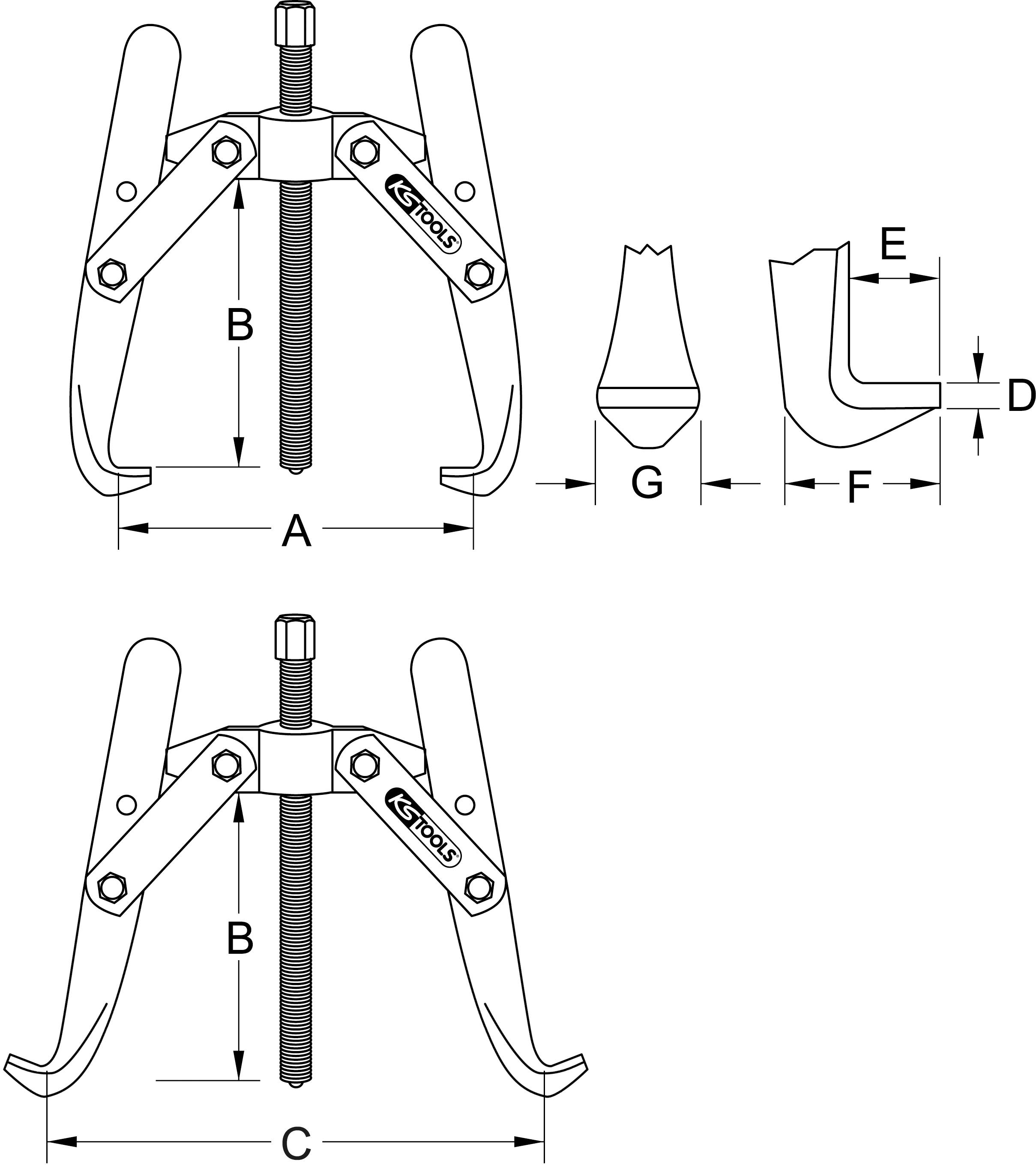

Two pullers in technical drawing. At the top, width 'A' and height 'B' are shown, below the width 'C'. Side view shows dimensions 'D', 'E', 'F', 'G'.

1/2

Sales and shipping:

Number

Piece(s)

Total (€ 239.50 / piece)

€

Report legal concerns

Technical specifications

Pull hook width G: 30 mm
Pull hook total depth F: 48 mm
Pull hook height D 5 mm
Pull hook tip depth E: 25 mm
Number of pull hooks: With 2 pull-off hooks
Hexagon drive in mm: 22 mm
Torque max Nm:120 Nm
Functional attribute 1: Adjustable clamping depth
Weight 6400 g
Material1: Special tool steel
max. Compressive strength KN: 60.0
max. Compression force Nm: 120
max. Pressure force t: 6
Quick adjustment: No. nein
Clamping depth B in mm 400 mm
Span A in mm 50-400 mm
Span up to [mm]: 400 mm
Span [mm]: 50 mm
Spindle size mm: G1/2"x14g x 270
Variant items : 620.3601

Clamping range: 50 - 400 mm

Dim

Weight: 6400 g

Content: 1 pc(s)

Span depth (max.): 400 mm

Hooks: 2

Product type: Puller

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695385 KS Tools 6203606 Puller Clamping range (details) 50 - 400 mm No. of hooks 2

Description

The clamping depth of hooks can be adjustedHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel

This text is machine translated.
