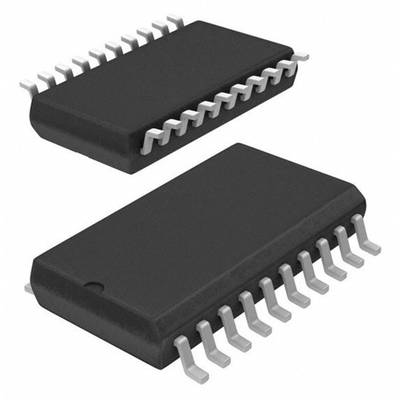

Image similar
Image similar
Nexperia 74HCT273D,653 Logic IC - Flip-Flop Master reset Non-inverting SOIC 20
EAN:
Part number:
Item no:
Enclosure
SOIC 20
Max. operating voltage
5.5 V
Mounting type
Surface-mount
Product type
Logic IC - Flip-Flop
Type
74HCT273D,653
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.38
300
11% = € 0.04
€ 0.34
500
13% = € 0.05
€ 0.33
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.38 / piece)
€
Technical specifications
- Type
74HCT273D,653
- Enclosure
SOIC 20
- Manufacturer
Nexperia
- Manuf. code
NEX
- Series
74HCT
- Logic type
D type
- Functions
Master reset
- No. of elements
1
- Bits per element
8
- Propagation delay (max.)
30 ns
- Propagation delay (V reference)
4.5 V
- Propagation delay CL reference
50 pF
- Output type
Non-inverting
- Trigger type
Positive slope
- Output current (low)
4 mA
- Output current (high)
5.2 mA
- Standyby current
8 µA
- Min. operating voltage
4.5 V
- Max. operating voltage
5.5 V
- Operating voltage
4.5 - 5.5 V
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Input capacitance
3.5 pF
- Clock speed
36 MHz
- Mounting type
Surface-mount
- Product type
Logic IC - Flip-Flop
Documents & Downloads
Datasheet
Datasheet 1115155 Nexperia 74HCT273D,653 Logic IC - Flip-Flop Master reset Non-inverting SOIC 20
Description
Integrated circuits from leading manufacturers. Please read our extensive documentation which is free to download.
