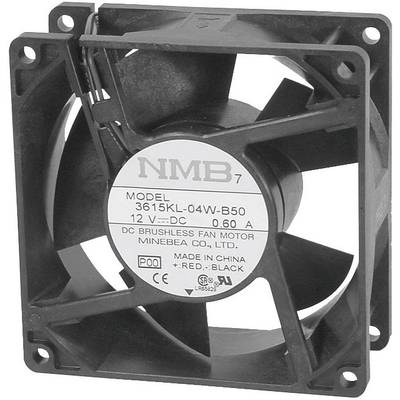

Image similar
1/2
Image similar
NMB Minebea 3610KL-05W-B50 Axial fan 24 V DC 93 m³/h (L x W x H) 92 x 92 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
No. of wires
2
Power
3.84 W
Type of bearing
Ball bearing
Datasheet (PDF)
180 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 25.20
-17 %
€
Technical specifications
- Product type
Axial fan
- Type
3610KL-05W-B50
- Nominal voltage
24 V DC
- No. of wires
2
- Max. current consumption
160 mA
3.84 W
- Type of bearing
Ball bearing
- Rotational speed
3200 U/min
- Noise emission (max.)
41 dB
- Air flow rate
93 m³/h
- Connection
Open end cable
- Cable length
30.00 cm
- Factory colour
Black
- Material
Plastic
100000 h
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
92 mm
- Width
92 mm
- Height
25 mm
- Dim
(L x W x H) 92 x 92 x 25 mm
- Output (max.) (details)
1.55 m3/min
- Max. noise generation
41 dBa
- Current consumption
0.25 A
- Type
3610KL-05W-B50-P00
- Temperature range
-10 - +70 ºC °C
- Operating voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 189418 NMB Minebea 3610KL-05W-B50 Axial fan 24 V DC 93 m³/h (L x W x H) 92 x 92 x 25 mm
Description
This ball bearing fans from NMB ® meets the highest quality standards. Direction of rotation of the rotor-side left , over bars blowing.
