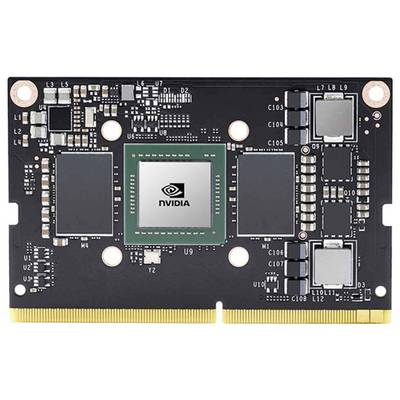

Nvidia Jetson TX2 NX Jetson TX2 4 GB 4 x
Part number:
Item no:
Technical specifications
- - AI performance: 1.33 TFLOPS
- - GPU: NVIDIA Pascal™ architecture with 256 NVIDIA® CUDA® computing units
- - CPU: Dual-core NVIDIA Denver 2 64-bit CPU and Quad-Core Arm® Cortex®-A57 MPCore
- - Memory: 4 GB, 128-bit LPDDR4 / 51.2 GB/s.
- - Data storage: 16 GB eMMC 5.1
- - Power: 7.5 W | 15 W.
- - PCIe: 1 x1 + 1 x2 / PCIe Gen2, total 30 GT/s.
- - CSI camera
- - Up to 5 cameras (12 via virtual channels)
- - 12 tracks MIPI, CSI-2 (3x4 or 5x2)
- - D-PHY 1.2 (up to 30 Gbps)
- - Video encoding
- - 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265)
- - 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264)
- - Video decoding
- - 2 x 4K60 | 4 x 4p30 | 7 x 1080p60 | 14x 1080p30 (H.265 & H.264)
- - Display
- - 2 Multi-mode DP 1.2/eDP 1.4/HDMI 2.0
- - 1x 2 DSI (1.5 Gbps/lane)
- - Network: 10/100/1000 BASE-T Ethernet
- - SO-DIMM slot 260-pin
- - Dimensions (LxB): 70 x 45 mm
- Type
Jetson TX2
- Processor cores (No.)
4 x
4 GB
- Memory type
eMMC
- Memory capacity
16 GB
- Internal ports
PCIe 2.0
- External ports
HDMI™
- Length
70 mm
- Width
45 mm
- Product type
SBC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386459 Nvidia Jetson TX2 NX Jetson TX2 4 GB 4 x
Description
NVIDIA Jetson TX2 NX provides the next step in AI performance for entry-level embedded and edge products. Compact, energy efficient and Ideal for your next AI solution - from manufacturing to retail to agriculture and life sciences. Pre-trained AI models, the Transfer Learning Toolkit and the NVIDIA JetPack™ SDK help you quickly bring your best product to market.
