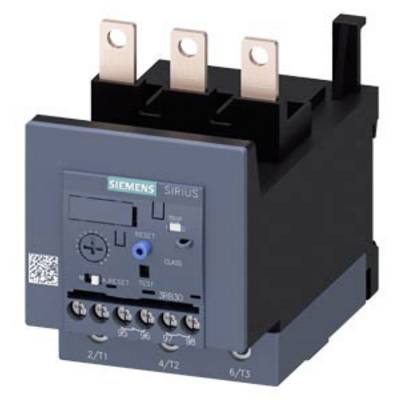

O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XB0 1 pc(s)
EAN:
Part number:
Item no:
Product type
O/L relay
Contact type
1 maker
1 breaker
Type
3RB3046-1XB0
Type
S3
Operating voltage
1000 V AC
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 222.69 / piece)
€
Technical specifications
- Mounting type: installing contactor
- Contact protection against electrical shock: Finger-safe vertically for contact from the front according to IEC 60529
- Number of pins: 3
- Tripping class: CLASS 10 E
- Product type
O/L relay
- Type
3RB3046-1XB0
- Type
S3
- Operating voltage
1000 V AC

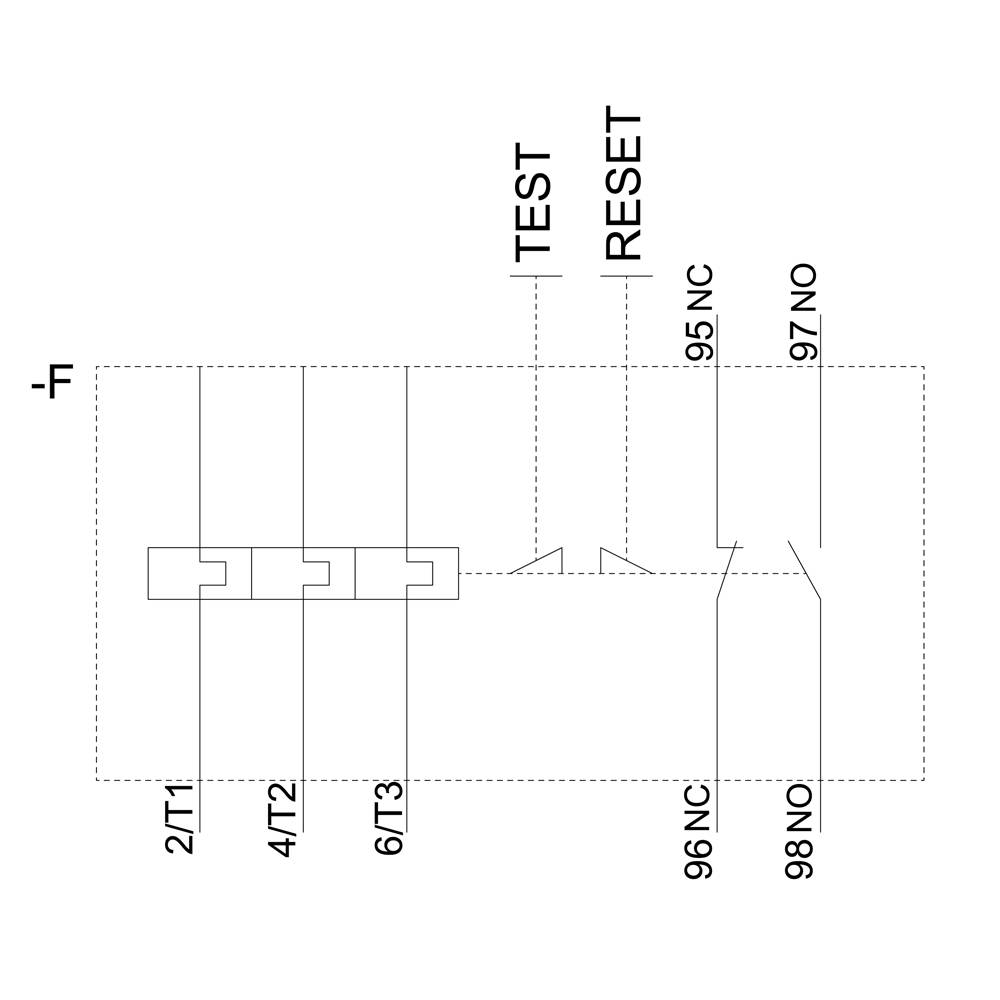

- Contact type
1 maker
1 breaker
- Connection
Screws
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

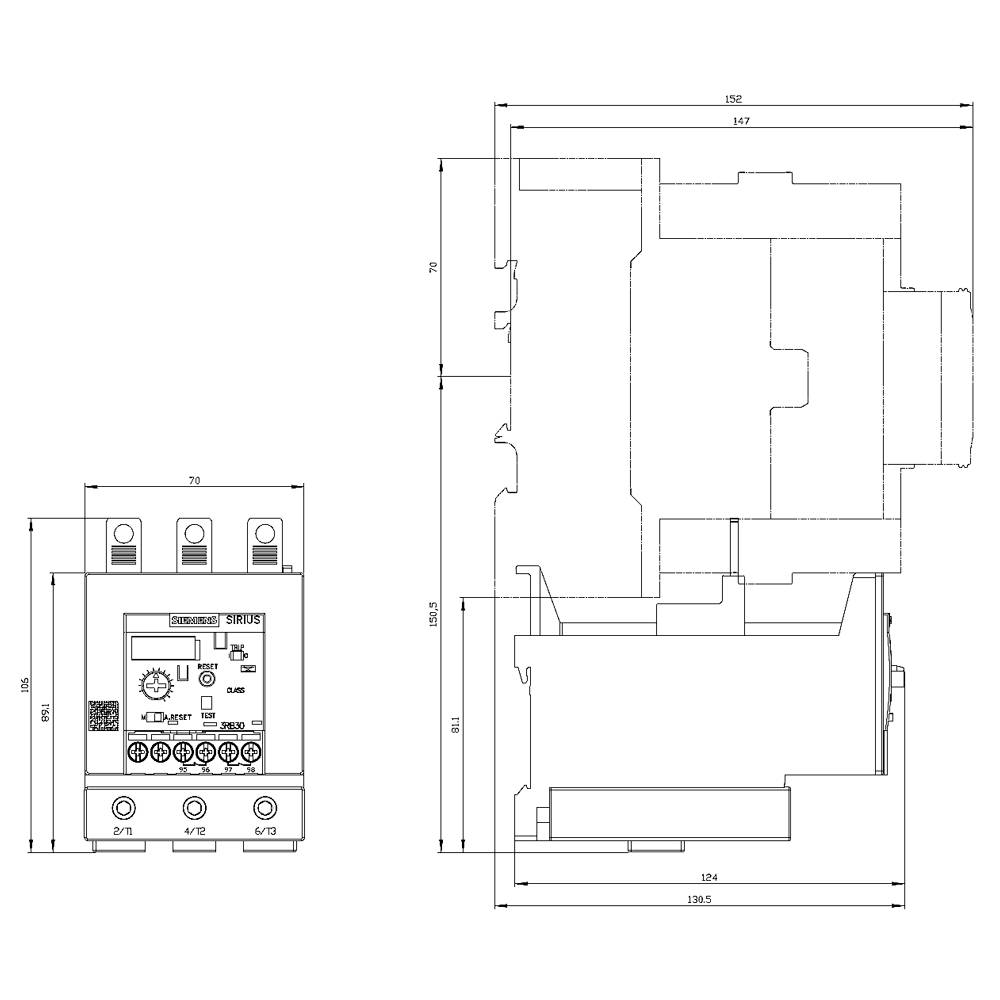

- Width
70 mm
- Height
106 mm
- Dim
(L x W x H) 124 x 70 x 106 mm
- Content
1 pc(s)
- AWG max.
1
- AWG (min.)
10
- Factory colour
Multicolour
- Nominal current
115 A
- Length
124 mm
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (inflexible) (min.)
2.5 mm²
Separate positioning
1
1
0
CLASS 10
Screw connection
Documents & Downloads
Datasheet
Datasheet 1699523 O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XB0 1 pc(s)
Datasheet 1699523 O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XB0 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1699523 O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XB0 1 pc(s)
