Buy O/L relay 1 maker, 1 breaker Siemens 3RB3143-4UW1 1 pc(s)

A Siemens electromechanical control unit, Sirius model. Rectangular housing with connections and operating elements on the front panel.

Image similar

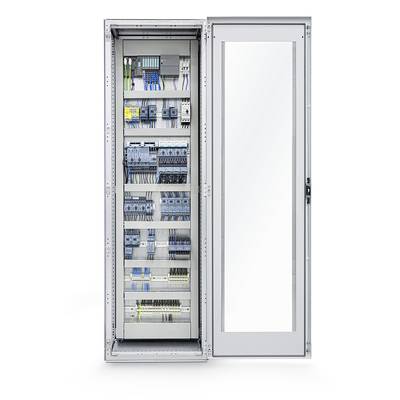

An open electrical cabinet reveals multiple shelves packed with electrical components and wiring, neatly arranged.

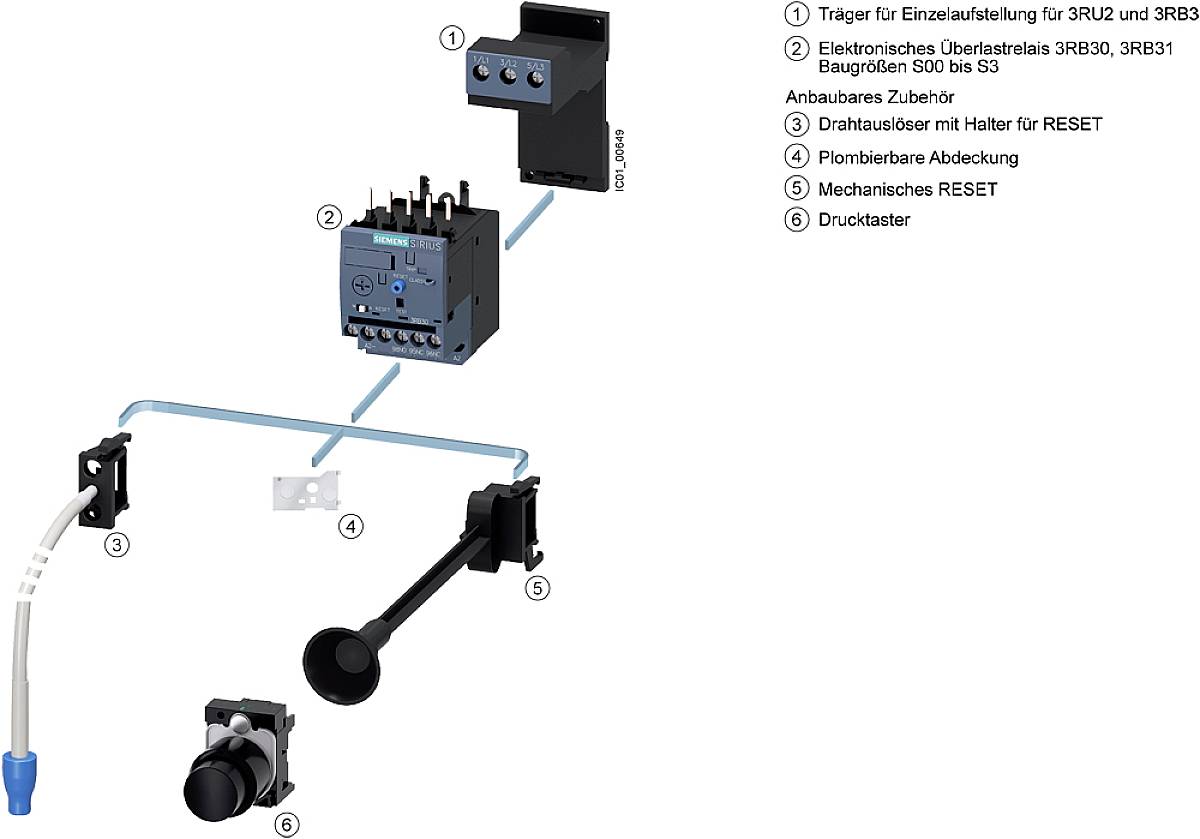

'Diagram shows an electrical control system with accessories: carriers, overcurrent relays, push buttons and more with labels.'

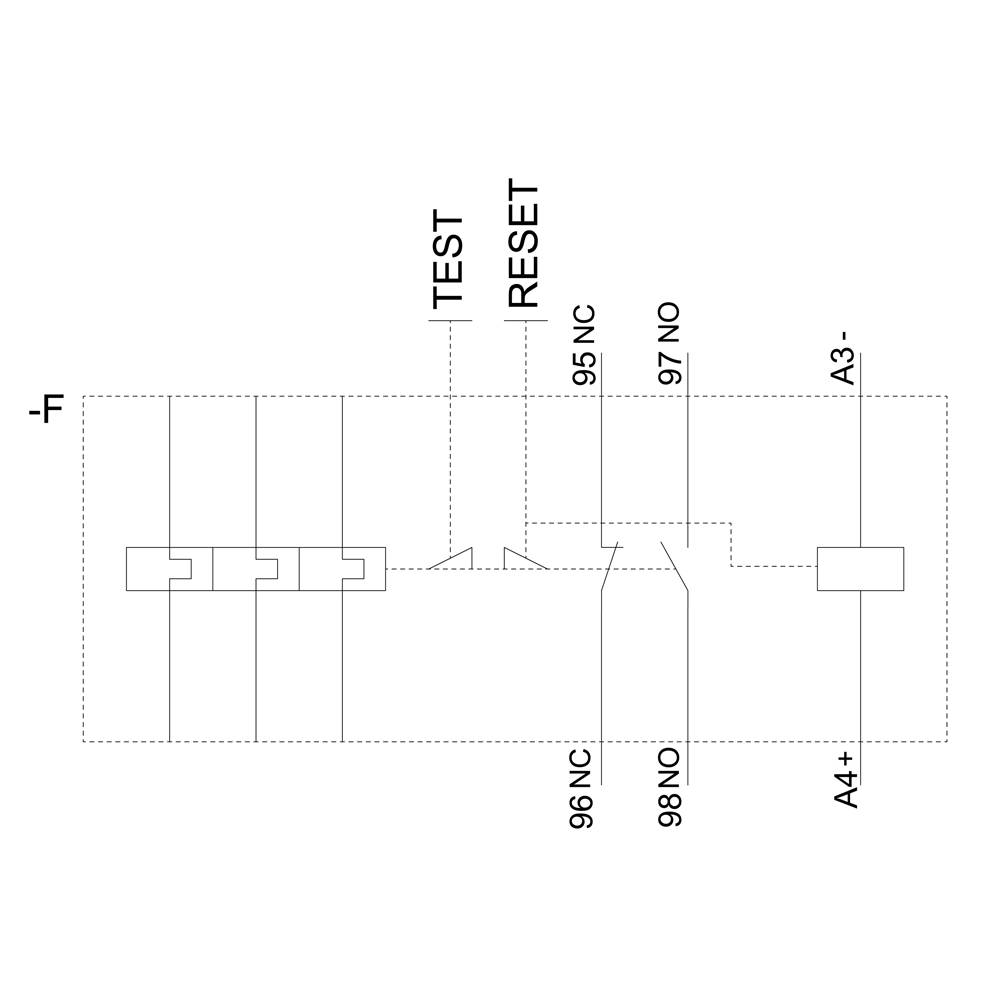

Circuit diagram with labels: 'TEST', 'RESET', terminals '95 NC', '96 NC', '97 NO', '98 NO', 'A3-', 'A4+', showing relay connections.

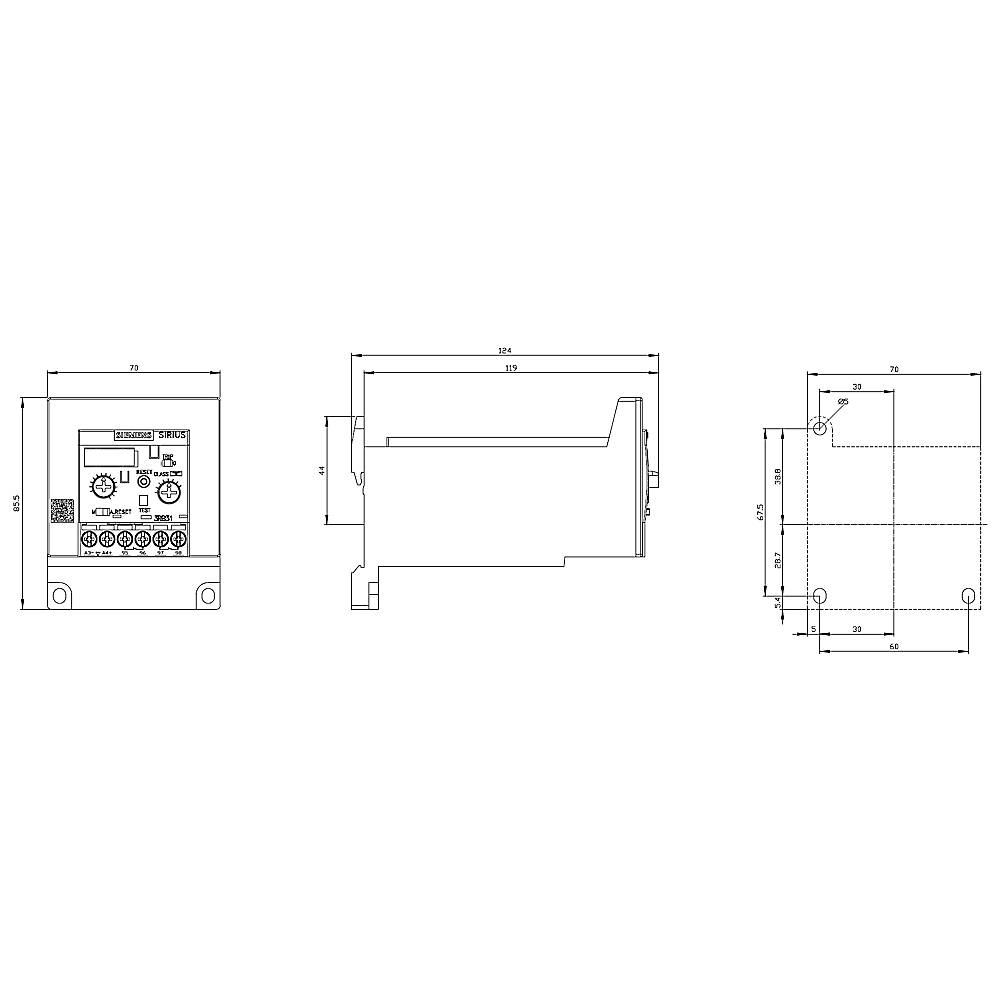

Technical drawing of an electrical device showing front, side, and top views. Includes specific dimensional specifications and construction details.

1/5

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 273.11 / piece)

€

Report legal concerns

Technical specifications

Mounting type: stand-alone installation
Contact protection against electrical shock: Finger-safe
Number of pins: 3
Tripping class: CLASS 5E, 10E, 20E and 30E adjustable

Type: 3RB3143-4UW1

Type: S3

Operating voltage: 1000 V AC

Contact type: 1 maker
1 breaker

Connection: Ring-type transformer

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 70 mm

Height: 106 mm

Dim: (L x W x H) 124 x 70 x 106 mm

Content: 1 pc(s)

Length: 124 mm

Nominal current: 50 A

AWG max.: 14

AWG (min.): 20

: Separate positioning

: 1

: 1

: 0

: Adjustable

: Through-feed current converter

Product type: O/L relay

Documents & Downloads

Datasheet

Datasheet 1704704 O/L relay 1 maker, 1 breaker Siemens 3RB3143-4UW1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1704704 O/L relay 1 maker, 1 breaker Siemens 3RB3143-4UW1 1 pc(s)

Description

Overload relay 32...115 A for motor protection Size S3, Class 20E Contactor mounting Main circuit: Screw Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset
