Buy O/L relay Siemens 3RU2116-0FB1 1 pc(s)

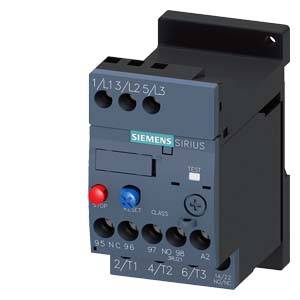

A Siemens electronic overload relay, model Sirius. It features adjustment buttons and connection terminals for three-phase motor control.

Image similar

An open electrical cabinet with multiple stacked shelves of electrical components and wiring, viewed from the front.

Schematic of a switching element with various components: mountings, overload trigger, remote RESET, wire attachments, push buttons, and cover.

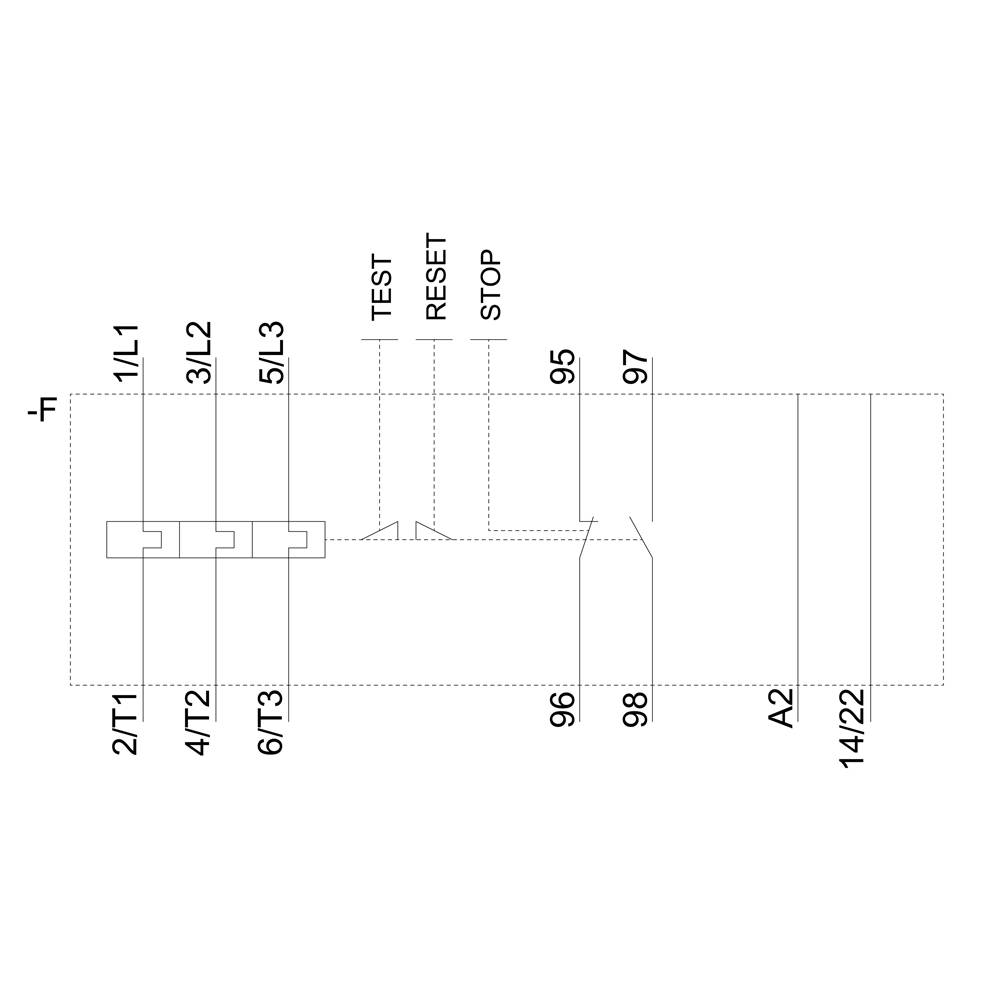

Circuit diagram with numbered cables and labels: 'TEST', 'RESET', 'STOP'. Connections and symbols illustrated.

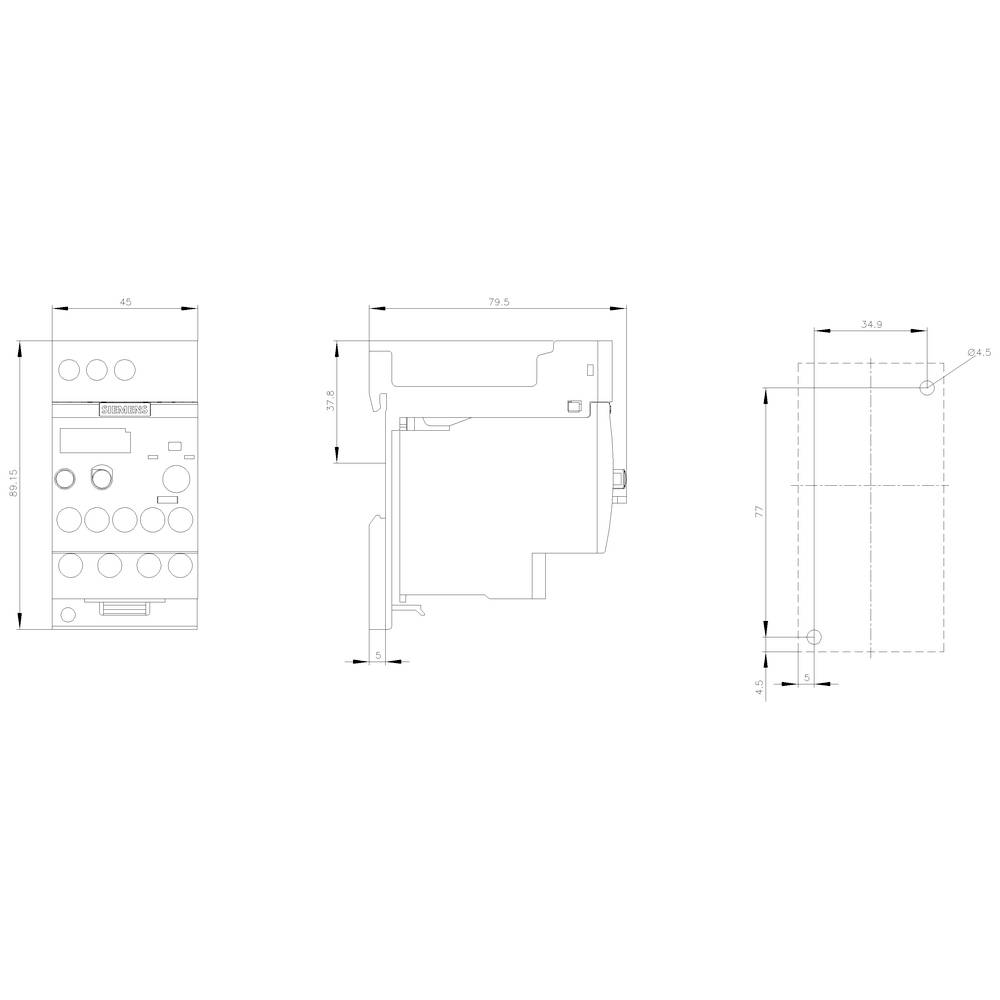

Technical drawing of a device with front, side, and top view. Dimensions specified in millimetres; interfaces and mounting points highlighted.

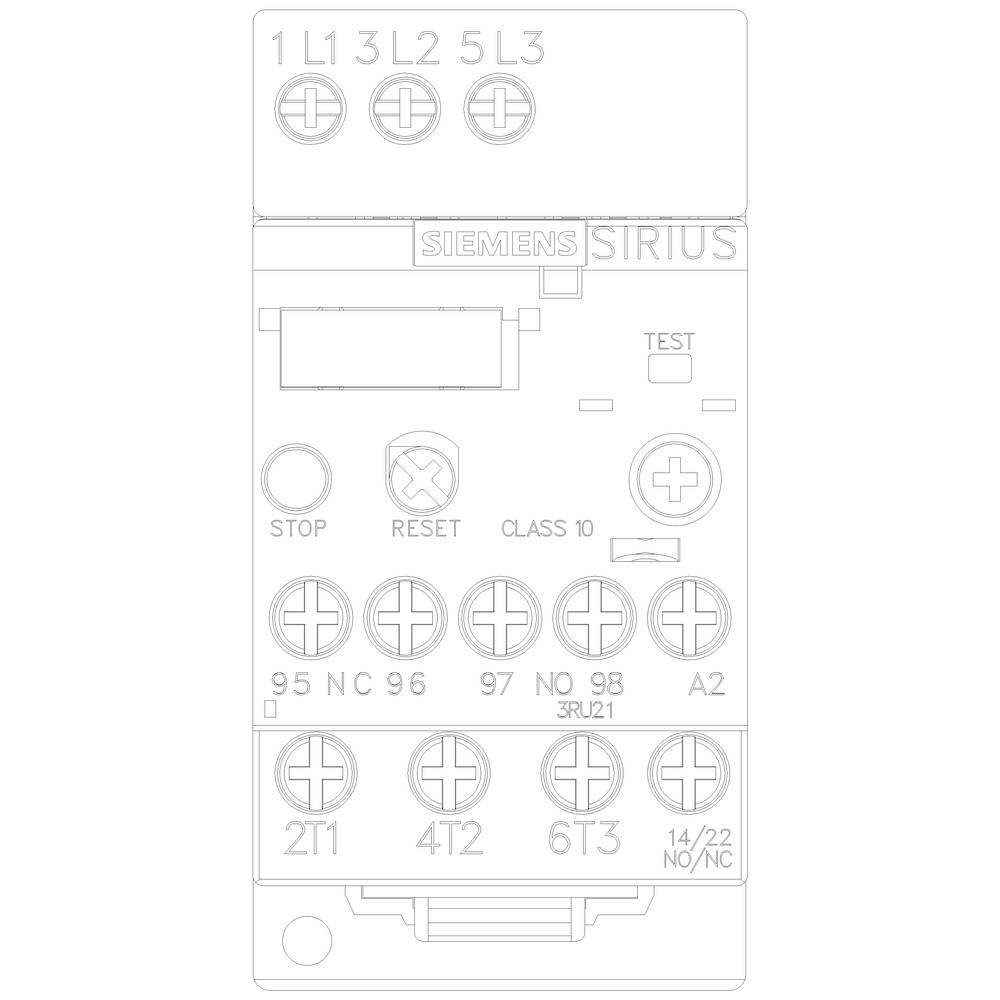

An electrical switching device with multiple connection terminals and buttons, including 'STOP' and 'RESET'. Labelled 'Siemens Sirius' at the top.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Type: 3RU2116-0FB1

Type: S00

Operating voltage: 690 V

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 89 mm

Depth: 80 mm

Dim: (W x H x D) 45 x 89 x 80 mm

Content: 1 pc(s)

Nominal current: 0.5 A

AWG max.: 12

AWG (min.): 20

Cross section (flexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

Product type: O/L relay

Documents & Downloads

Datasheet

Datasheet 1730543 O/L relay Siemens 3RU2116-0FB1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730543 O/L relay Siemens 3RU2116-0FB1 1 pc(s)

Description

Overload relay 0.55...0.80 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
