Buy O/L relay Siemens 3RU2126-1FC0 1 pc(s)

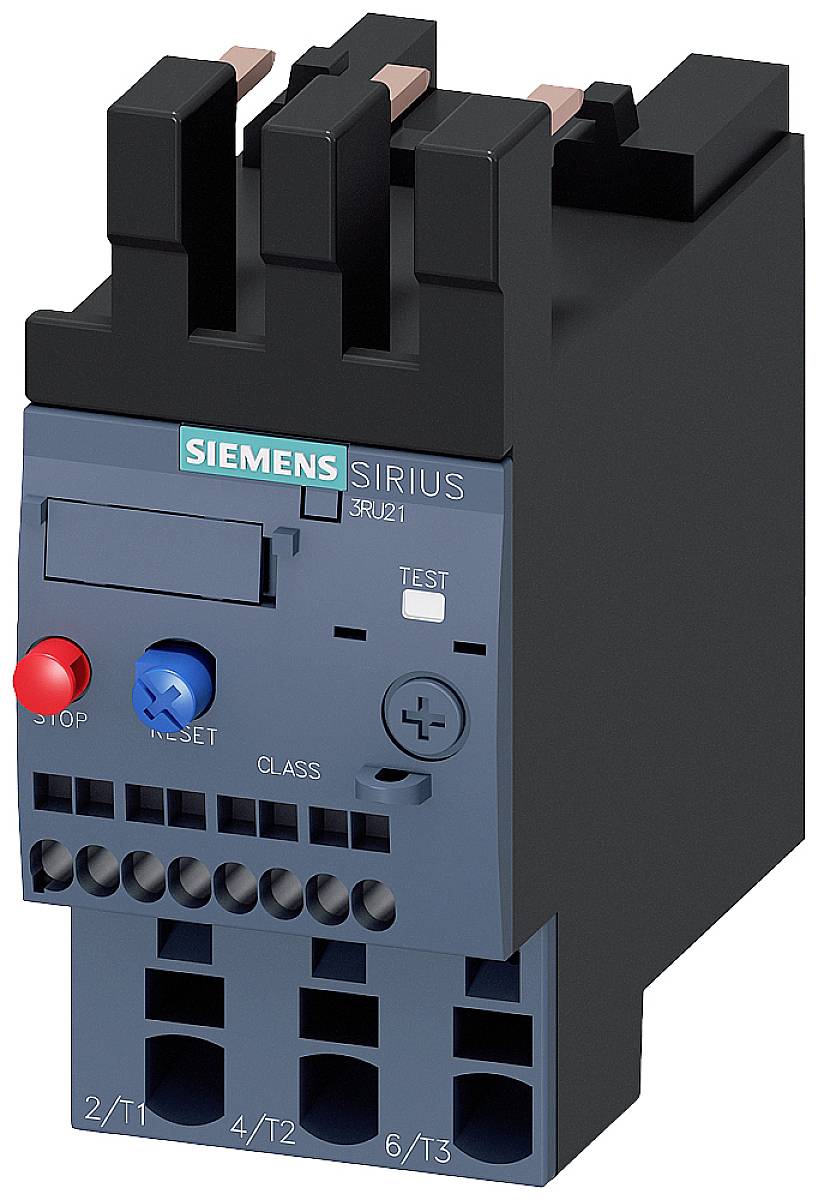

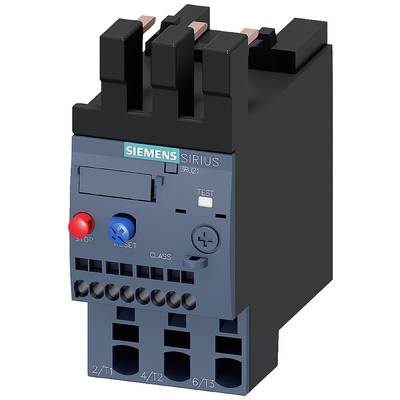

A Siemens Sirius overload relay with operating elements such as a red button to stop, a blue button to reset, test button and display for class setting.

Image similar

An open electrical cabinet with various electrical components and cables, organised in multiple rows and levels.

'Diagram shows an electrical switching device with descriptions of components: 1 to 7 indicate mountings, overload relays and reset mechanisms.'

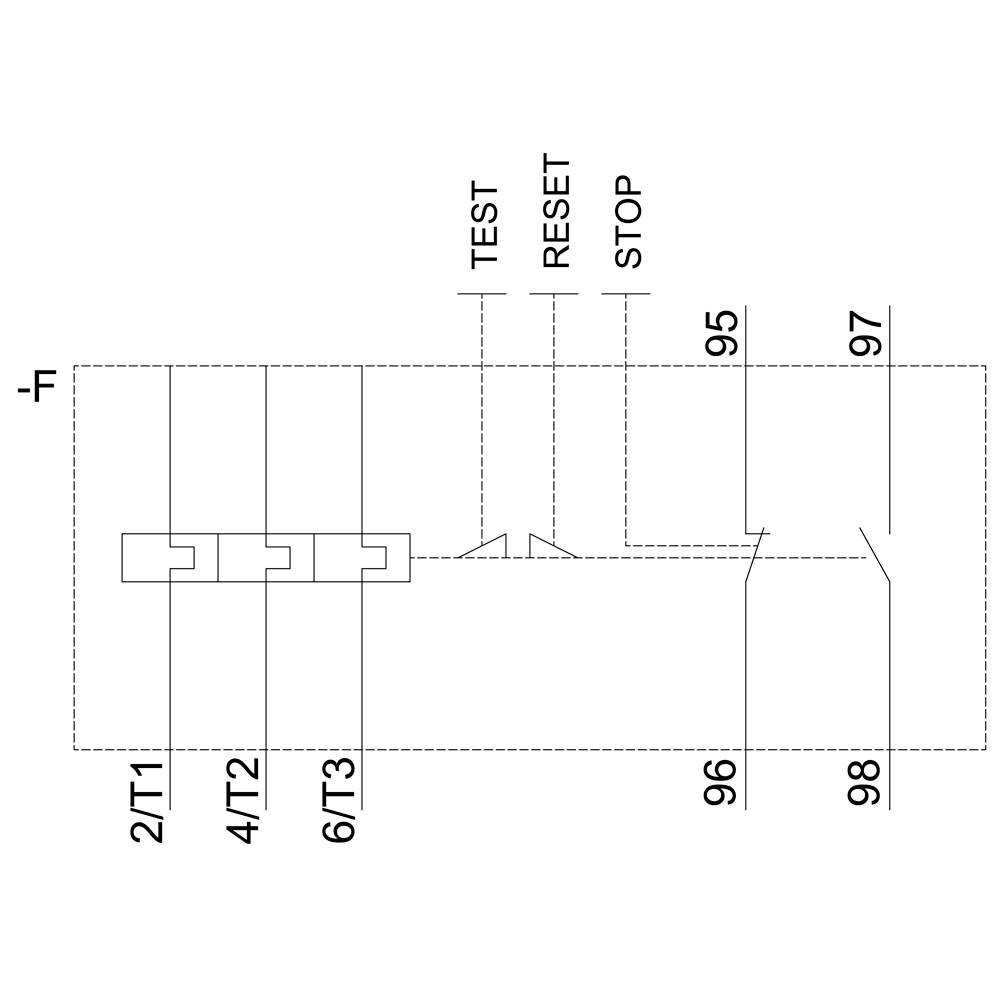

Circuit diagram with three vertical lines, labelled as TEST, RESET, STOP. Additional labels: 2/T1, 4/T2, 6/T3.

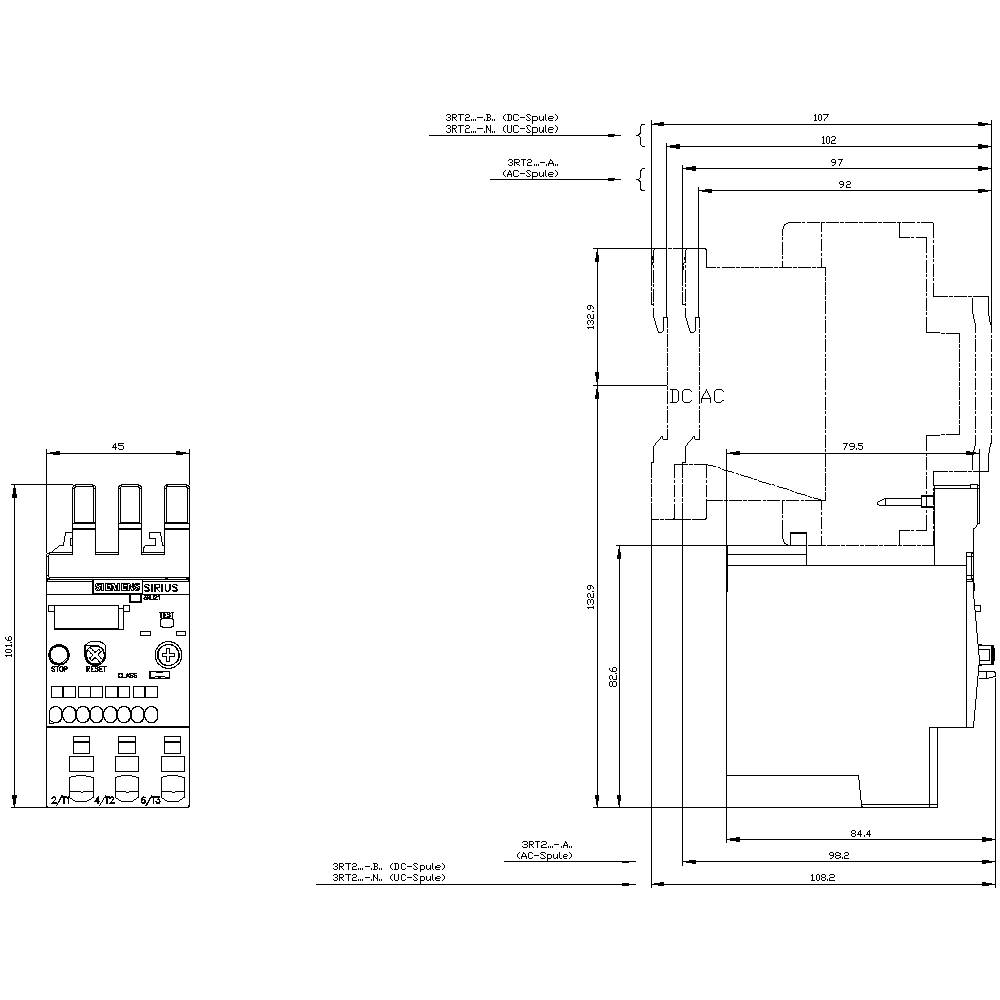

A diagram shows the technical drawings of an electrical relay with precise dimensions in millimetres.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 63.86 / piece)

€

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Type: 3RU2126-1FC0

Type: S0

Operating voltage: 690 V

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 102 mm

Depth: 84 mm

Dim: (W x H x D) 45 x 102 x 84 mm

Content: 1 pc(s)

Nominal current: 5 A

AWG max.: 8

AWG (min.): 18

Cross section (flexible) (max.): 10 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (inflexible) (min.): 1 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

Product type: O/L relay

Documents & Downloads

Datasheet

Datasheet 1706097 O/L relay Siemens 3RU2126-1FC0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1706097 O/L relay Siemens 3RU2126-1FC0 1 pc(s)

Description

Overload relay 9.0...12.5 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
