OKDO SOM A I/O Board 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€
Highlights & Details

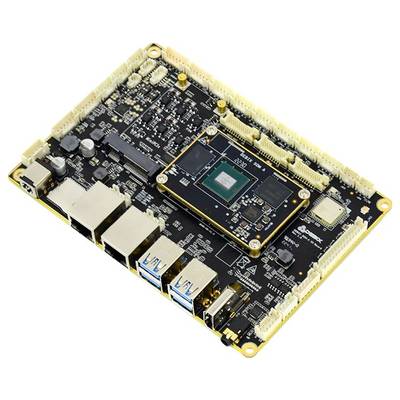

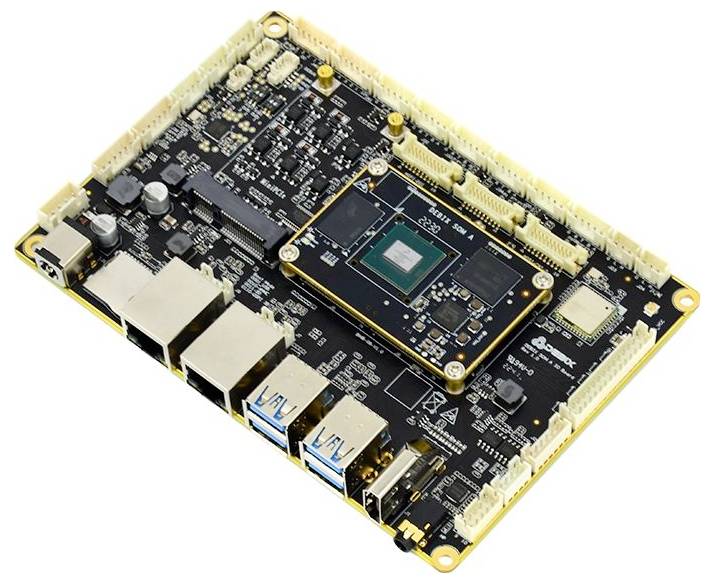

OKDO SOM A I/O Board
- Take advantage of the powerful i.MX 8M Plus processor with the feature-rich I/O board interfaces.
- The product supports not only booting eMMC on the DEBIX SOM A, but also booting Micro SD and SPI Nor Flash.
- The serial interfaces, CAN and GPIO on the I/O board have been developed with respect to industrial and IoT applications and are physically isolated.
- Supports 2 Gigabit Ethernet with PoE function, 2.4 GHz & 5 GHz Wi-Fi and Bluetooth 5.0.
Technical specifications
- HDMI:1 x HDMI-output, type A-socket
- LVDS: 1 x dual channel LVDS output, supports single channel 8-bit and dual channel 8-bit output (2*15 pin/2.0 mm pin header), 1 x backlight connector (1*6 pin/2.0 mm pin header), 1 x I2C touch panel connector (1*6 pin/2.0 mm pin header)
- MIPI: 1 x 4 lane MIPI DSI (2*10 pin/1.25 mm pin header), 2 x 4 lane MIPI CSI (2*10 pin/1.25 mm pin header)
- Audio: 1 x headphone and microphone combination port, 3.5 mm jack, compatible with built-in header design, 1 x line-in, analogue input, 1 x L&R speaker output, Max. 3 W@4 Ω (1*4 pin/2.0 mm pin strip), 1 x SPDIF TX/RX audio connector (1*4 pin/1.25 mm pin strip)
- Communication: 2 x independent MAC gigabit RJ45 port with POE power supply (POE power module required), 2.4 GHz and 5 GHz Wi-Fi and Bluetooth 5.0, external SMA antenna ports for Wi-Fi and 4 G
- SIM slot 1 x micro SIM slot, push-up slot
- SD-slot 1 x micro SD-slot, push-pop-up-slot
- Mini PCI: Supports 4 G mini PCIe modules such as Quectel 4 G modules, built-in SIM card, etc., supports Lora mini PCIe module, supports mini PCIe extensions for network cards, SATA and serial interfaces
- USB 3.0: 4 x USB 3.0 host, double-layer type A interface
- USB 2.0: 3 x USB 2.0 host (1*4 pin/2.0 mm pin strip)
- Serial ports - 6 x physically isolated RS232/RS485 (you can select only one from two), compatible with UART TTL 3.3 V without physical isolation, 1 x UART TTL 3.3 V system debug port
- GPIO: 4 x physically isolated DI, supports dry contact and wet contact, 4 x physically isolated DO, supports wet contact, compatible with dry contact of an external relay
- CAN: 2 x physically isolated CA
- LED and key: 1 x Power LED, 2 x programmable LED, 1 x ON/OFF The interfaces mentioned above share a connector (1*6 pin/2.0 mm pin strip), built-in small key for eMMC upgrade without disassembly
- DC socket: 1 x DC socket for 5.5 mm x 2.1 mm DC plug, 1 x integrated power supply connection (1*4 pin/2.54 mm pin header)
- Current input: 12 V DC standard, supports a wide voltage range of 12 V DC∼36 V.
- Dimensions 146.0 x 102.0 mm
- Operating temperature: -20 ∼70 for system video and audio communication Other I/O interfaces Power supply Mechanical ℃ ℃ Standard, -40 ℃∼85 ℃ optional
- SoC
i.MX 8M
- Clock speed
2.4 GHz
5 GHz
- Memory type
eMMC
- Internal ports
DSI (display)
- External ports
HDMI™
- Wi-Fi
built-in
- Bluetooth
5.0
- Length
102.0 mm
- Width
146.0 mm
- Product type
SBC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3350523 OKDO SOM A I/O Board 2.4 GHz, 5 GHz
Description
Polyhex DEBIX SOM A I/O Board is a carrier board specially designed for use with the DEBIX SOM A. The I/O board is simply connected to the DEBIX SOM A via 4 double-sided board-to-board sockets on the front. Based on i.MX 8M Plus, this core board offers the perfect solution for industrial control, IoT connectivity and multimedia applications.
