Omron G6RN-1 24DC PCB relay 24 V DC 8 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
30 V DC
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Highlights & Details
Omron G6RN-1 24DC PCB relay 24 V DC 8 A 1 change-over 1 pc(s)
- Low profile, only 10 mm wide
- 8 mm leakage and creepage distance
- Insulation class III
Technical specifications
- Sealed (RT III)
- Product type
PCB relay
- Type
G6RN-1 24DC
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
2620 Ω
- Contact type
1 change-over
- Contact material
AgNi+Au
- Switching voltage (max.)
30 V DC
250 V AC
- Switching current (max.)
8 A
- Max. switching capacity
150 W
2000 VA
- Connection
Solder pins
- Min. temperature
-40 °C
- Max. temperature
+85 °C

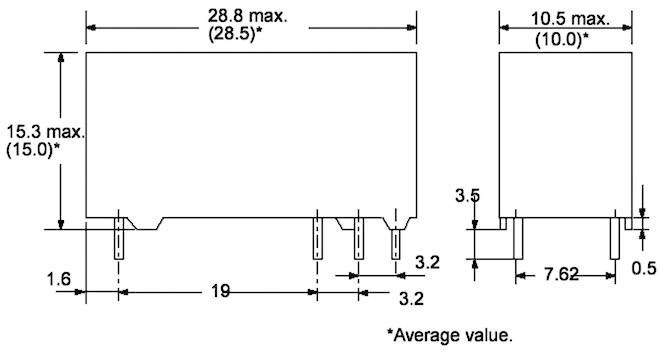

- Length
28.8 mm
- Width
10 mm
- Height
15.3 mm
- Dim
(L x W x H) 28.8 x 10 x 15.3 mm
- Content
1 pc(s)
- RoHS-compliant
- Engineering Part No
G6RN1ADC24
- Power consumption
approx. 220 mW
- Nominal voltage (details)
24 V DC
- Switching capacity
max. 2000 VA/150 W
- Temperature range
-40 - +85 ºC °C
Documents & Downloads
Datasheet
Datasheet 503926 Omron G6RN-1 24DC PCB relay 24 V DC 8 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 503926 Omron G6RN-1 24DC PCB relay 24 V DC 8 A 1 change-over 1 pc(s)
Description
Monostabile PCB relay with the following approvals: DIN EN 61810-1(VDE), UL and CSA. Meets the EU RoHS/WEEE requirements. Ideal for domestic heating systems and industrial applications.
