Buy Panasonic Triangulation sensor MQW70A1224EMJ MQW70A1224EMJ Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

A rectangular sensor with the label 'MG-W20A-DC12-24V'. It has red sensor surfaces and adjustment buttons.

Image similar

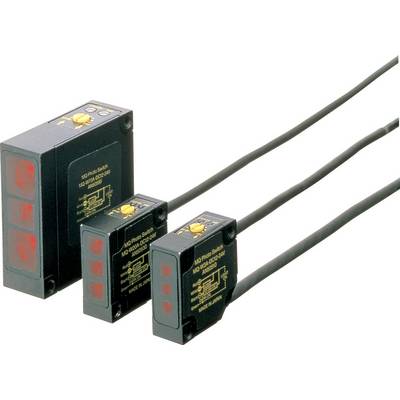

Three rectangular, black sensor devices with cables and red LED lights that can be used for industrial applications.

1/2

Image similar

Product type

Triangulation sensor

Functions

Light-ON

Dark-ON

Switch (light-ON/dark-ON)

Max. operating voltage

24 V DC

Connector

Cable, open end

Type

MQW70A1224EMJ

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 281.51 / piece)

€

Report legal concerns

Highlights & Details

Light sensor, Series MQW

Doppel-Triangulations process with integrated amplifier
Secure object recognition, regardless of color, shape and material
Background Suppression
High vibration and shock resistance

Technical specifications

Product type: Triangulation sensor

Type: MQW70A1224EMJ

Functions: Light-ON
Dark-ON
Switch (light-ON/dark-ON)

Min. operating voltage: 12 V DC

Max. operating voltage: 24 V DC

Operating voltage: 12 - 24 V DC

Response time: 2 ms

Outputs: NPN

Connector: Cable, open end

Cable length: 2.00 m

Transmitter type: LED IR

Wavelength: 880 nm

: 70 cm

: IP67

Min. temperature: -25 °C

Max. temperature: +55 °C

Width: 18.6 mm

Height: 52 mm

Depth: 52 mm

Dim: (W x H x D) 18.6 x 52 x 52 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1429288 Panasonic Triangulation sensor MQW70A1224EMJ MQW70A1224EMJ Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1429288 Panasonic Triangulation sensor MQW70A1224EMJ MQW70A1224EMJ Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Description

The sensor with integrated amplifier operates on the basis of the Triangulations-Prinzip. It allows the reliable detection also highly contrasting objects, regardless of color, shape and material of the measured object. Even in the case of heavy contamination of the sensor lens is a safe position detection is guaranteed. The protection class IP67 offers an excellent resistance against environmental influences.
