PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 1,029.41 / piece)
€
Highlights & Details
PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
- 6-channel CAN/CAN FD interface for USB – Ideal for test stands, HIL simulations and tests with multiple CAN networks simultaneously
- Connect up to six separate CAN or CAN FD buses via a single device
- D-Sub 9 connector per channel, compatible with common CAN cabling standards
- Including PCAN-View and PCAN-Basic-API for quick start-up and easy integration in own applications under Windows and Linux
Technical specifications
- CAN FD bit rates: 25 kbit/s to 12 Mbit/s (max. 64 bytes) in the data field
- Supports CAN specifications 2.0 A/B and CAN FD (ISO and non-ISO standard switchable)
- CAN termination can be activated per channel via solder link
- USB-connection USB-plug type A, high-speed USB 2.0
- Type
PCAN-USB X6 - D-Sub
- Operating temperature
- Dim
- Manufacturer part #
IPEH-004062
- Product type
CAN bus
Documents & Downloads
Datasheet
Datasheet 3593594 PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
Datasheet 3593594 PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3593594 PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
User & Safety Instructions 3593594 PEAK-System Technik IPEH-004062 PCAN-USB X6 - D-Sub CAN bus 1 pc(s)
Description
The PCAN-USB X6 - D-Sub is a CAN-FD interface for the USB port and offers a simple and economical possibility of connecting a computer to up to six CAN/CAN FD bus networks. The device is thus ideally suited for working with several CAN networks, such as for use in test benches with HIL simulations (hardware in the loop) for motor vehicles or in the final control CAN-based products.

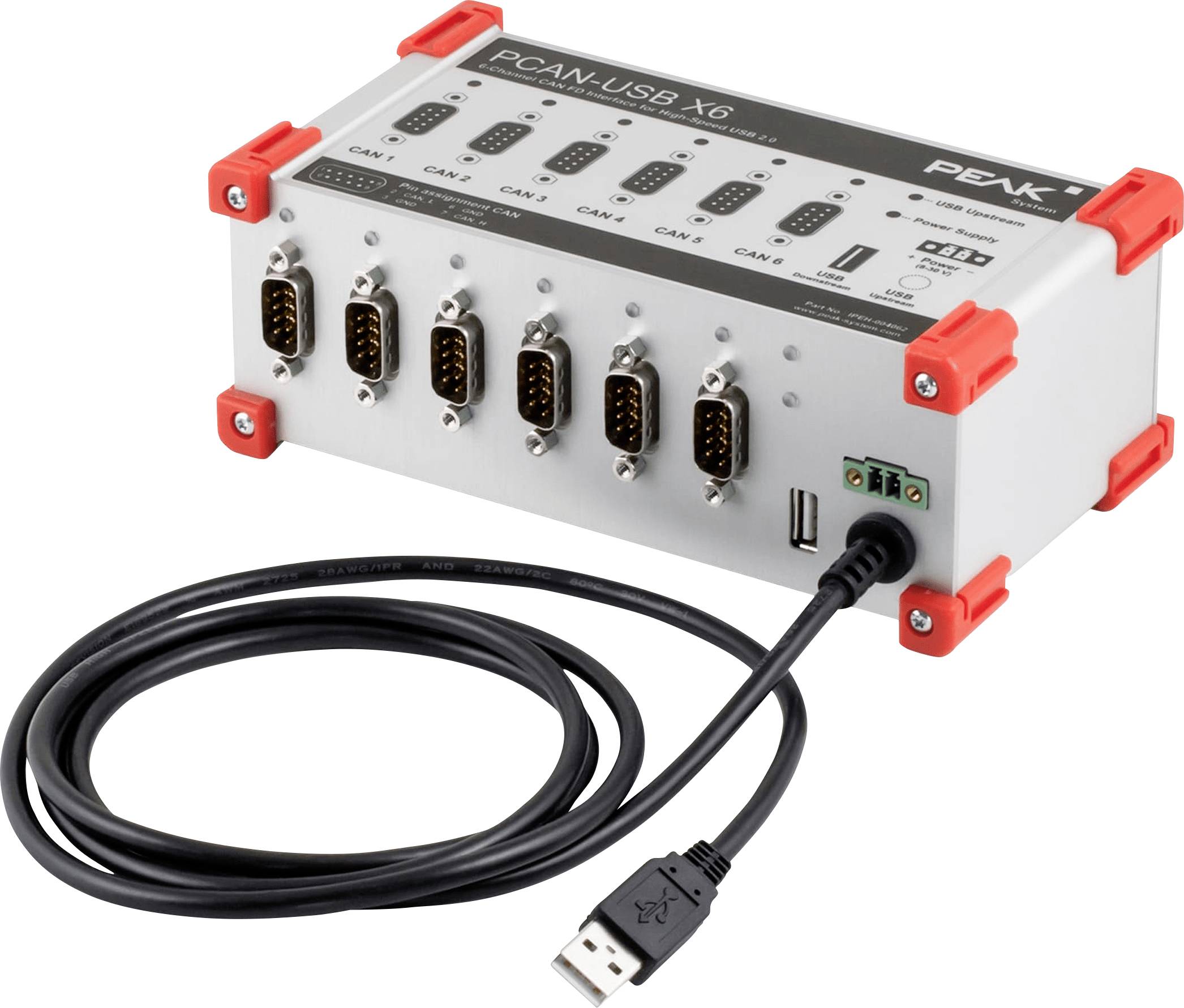

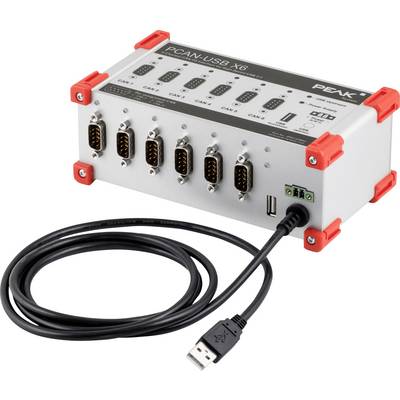

The PCAN USB X6 - D-Sub is housed in a robust aluminum profile housing and equipped with D-Sub 9-plugs. The device is connected to the PC via a USB high-speed port.
The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN-connection are included in the delivery.
This text is machine translated.
The PCAN USB X6 - D-Sub is housed in a robust aluminum profile housing and equipped with D-Sub 9-plugs. The device is connected to the PC via a USB high-speed port.
The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN-connection are included in the delivery.
This text is machine translated.
Scope of delivery
- 4 mounting bracket
- Mating connector for power supply (Phoenix Contact MC1.5/2-STF-3.81 - 1827703)
- Device driver for Windows and Linux
- CAN Monitor PCAN-View for Windows
- PCAN-Basic programming interface for application development
- With CAN-connection
- Programming interfaces for standardized protocols from the automotive sector
