PEM Dcflex/30/2000 Clamp meter adapter A/DC reading range: 30000 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 3,584.03 / piece)
€
Highlights & Details
DC current clamp of the DCflex series
- N/A
- Opening range of current clamps 2000 mm
Technical specifications
- Opening range of current clamps
2000 mm
- Basic accuracy
1 %
- Power supply (details)
Battery 4 x AA 1.5 V
- Dim
(L x W x H) 183 x 93 x 32 mm
- Current reading
DC
- Height
32 mm
- Length
183 mm
- Width
93 mm
Manufacturer's standards (no certificate)
- Features
Flexible
- A DC reading range (max.)
30000 A
- Product type
Clamp meter adapter
Documents & Downloads
Datasheet
Datasheet 2114740 PEM Dcflex/30/2000 Clamp meter adapter A/DC reading range: 30000 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 2114740 PEM Dcflex/30/2000 Clamp meter adapter A/DC reading range: 30000 A (max) Flexible
Description

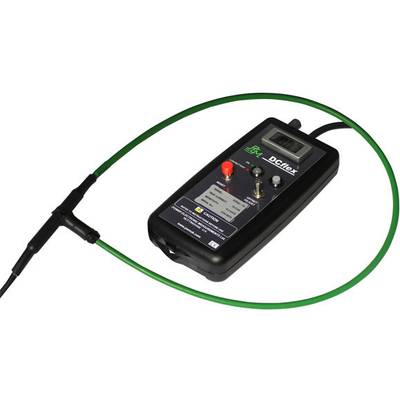

The DC Flex clamp-on ammeter is an easy-to-use, cost-effective, clip-around DC clamp-on ammeter. It is suitable for measuring large direct currents of 2 kA and more with a typical accuracy of ±1%.
This text is machine translated.
This text is machine translated.
Features
- Thin, flexible, clip-around coil, which can be easily used in confined spaces.
- Accuracy typically 1%
- Intrinsically safe, electrically isolated measurement
- Battery-operated with integrated display on the casing, which means that the use of external oscilloscopes or measuring devices is not necessary
Hints
Please make sure that all specifications meet your requirements. (Cable length, loop length, etc.). This is necessary because all cwt´s are custom-made and are therefore excluded from the exchange.
