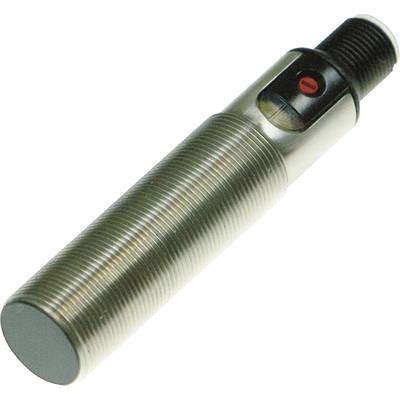

Pepperl+Fuchs Capacitive proximity switch CBB8-18GS75-E2-V1 237038 M18 shielded PNP
EAN:
Part number:
Item no:
Product type
Capacitive proximity switch
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
PNP
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 142.85 / piece)
€
Technical specifications
- Product type
Capacitive proximity switch
- Type
CBB8-18GS75-E2-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
PNP
- Installation type
shielded
- Size
M18
- Connector
M12 (3-pin)
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Content
1 pc(s)
- Type
CBB8-18GS75-E2-V1
Documents & Downloads
Datasheet
Datasheet 418945 Pepperl+Fuchs Capacitive proximity switch CBB8-18GS75-E2-V1 237038 M18 shielded PNP
Description
The operating distance can be adjusted with the potentiometer in a wide range.
This text is machine translated.
This text is machine translated.
Hints
Capacitive sensors work, just like inductive sensors, contact-free and without non-contact You can add this in application area, where the inductive principle fails. With capacitive sensors, apart from conducting materials even non-conducting materials can be detected.
