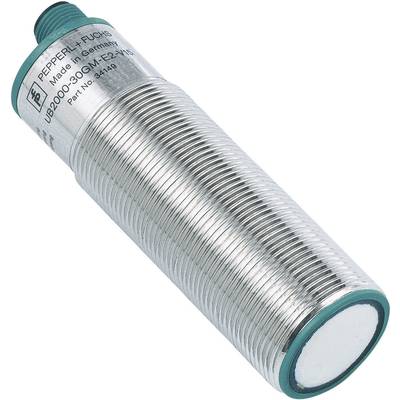

Pepperl+Fuchs UB2000-30GM-E5-V15 Ultrasonic proximity sensor UB2000-30GM-E5-V15 M30 PNP 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 284.87 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Pepperl+Fuchs UB2000-30GM-E5-V15 Ultrasonic proximity sensor UB2000-30GM-E5-V15 M30 PNP 1 pc(s)
- Extremely long switching distances
- Not affected by unfavourable environmental conditions
Technical specifications
- Very small blind zone
- Teach-in input
- Temperature compensation
- Synchronisation options
- Type
UB2000-30GM-E5-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Switching distance (max.)
2000 mm
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
1 breaker
- Outputs
PNP
- Connector
M12 (5-pin)
- Size
M30
- Features
LED indicator
IP65
- Height
94 mm
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 94 mm
- Content
1 pc(s)
- Output
PNP switch output
- Type
UB2000-30GM-E5-V15
- Connection
M12, 5-pin
- Operating voltage
10 - 30 V DC
- Product type
Ultrasonic proximity sensor
Documents & Downloads
Datasheet
Datasheet 156159 Pepperl+Fuchs UB2000-30GM-E5-V15 Ultrasonic proximity sensor UB2000-30GM-E5-V15 M30 PNP 1 pc(s)
Description
In all areas of industry in which sensors are affected by harsh environmental influences such as dust, dirt, smoke or steam, ultrasonic sensors are the ideal solution for contactless position and distance measurement. They can be installed in the smallest spaces and configured by "Teach-In". Objects in a wide range of materials (including transparent) can be detected with millimetre precision, regardless of their shape and colour.
Features
- With disable function (standby via the sync input).Input
- Insensitive to compressed air.
