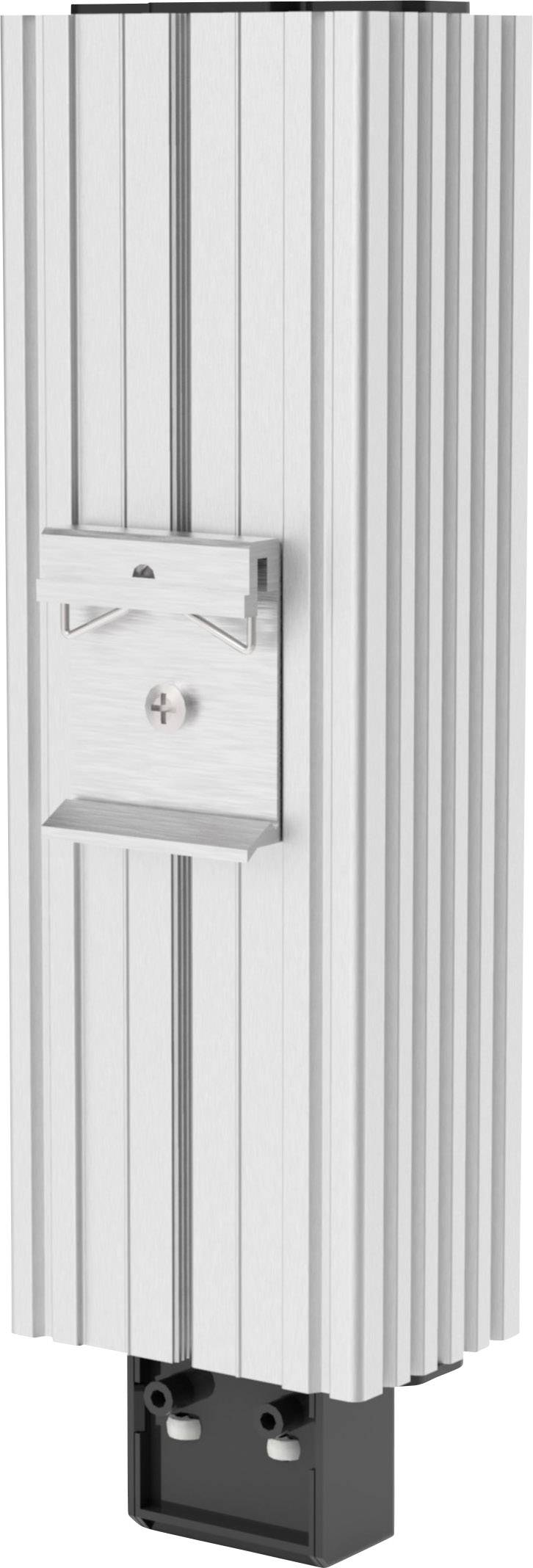

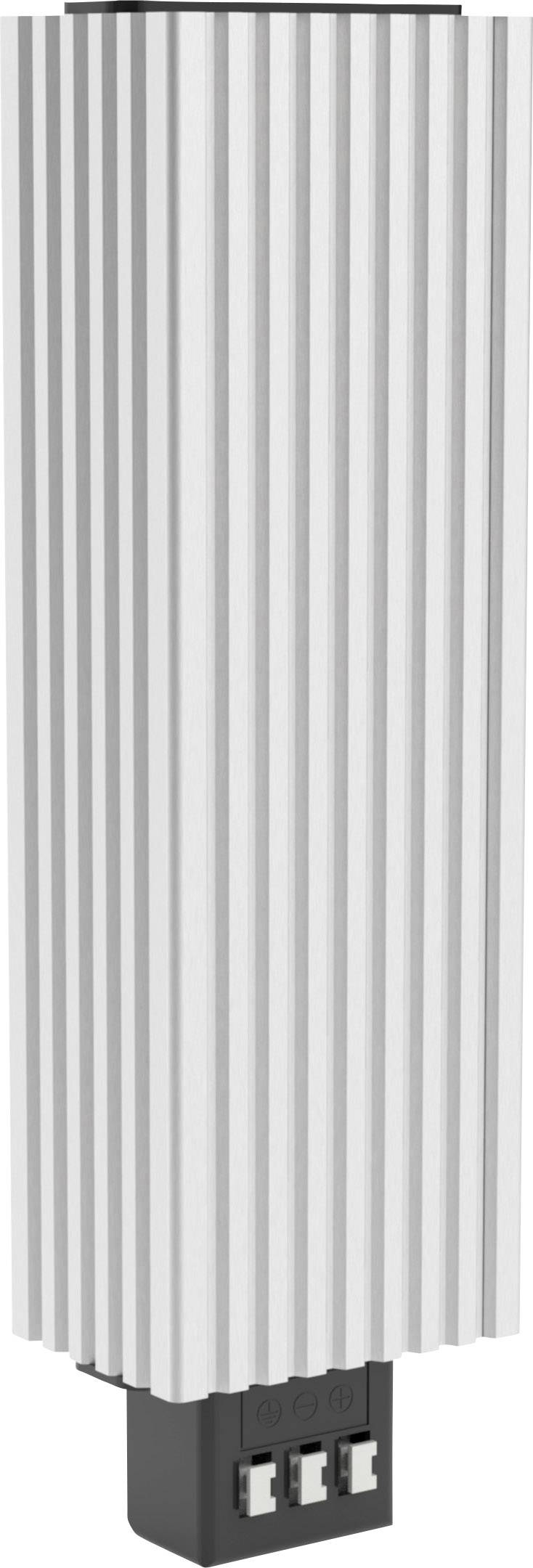

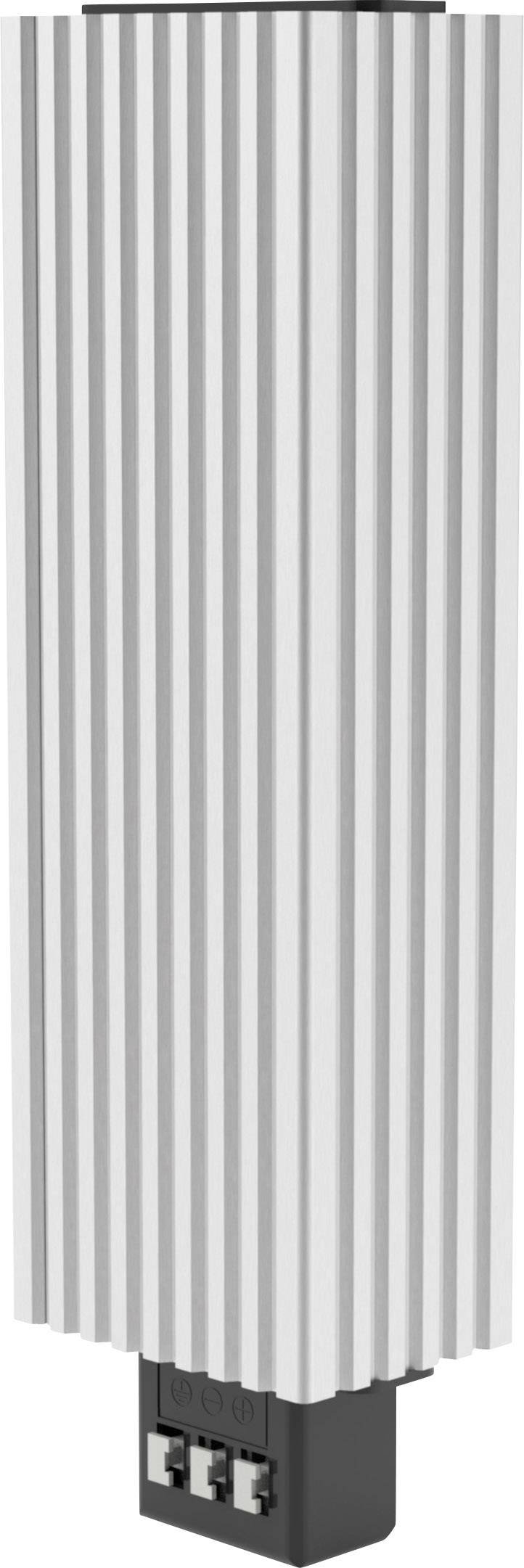

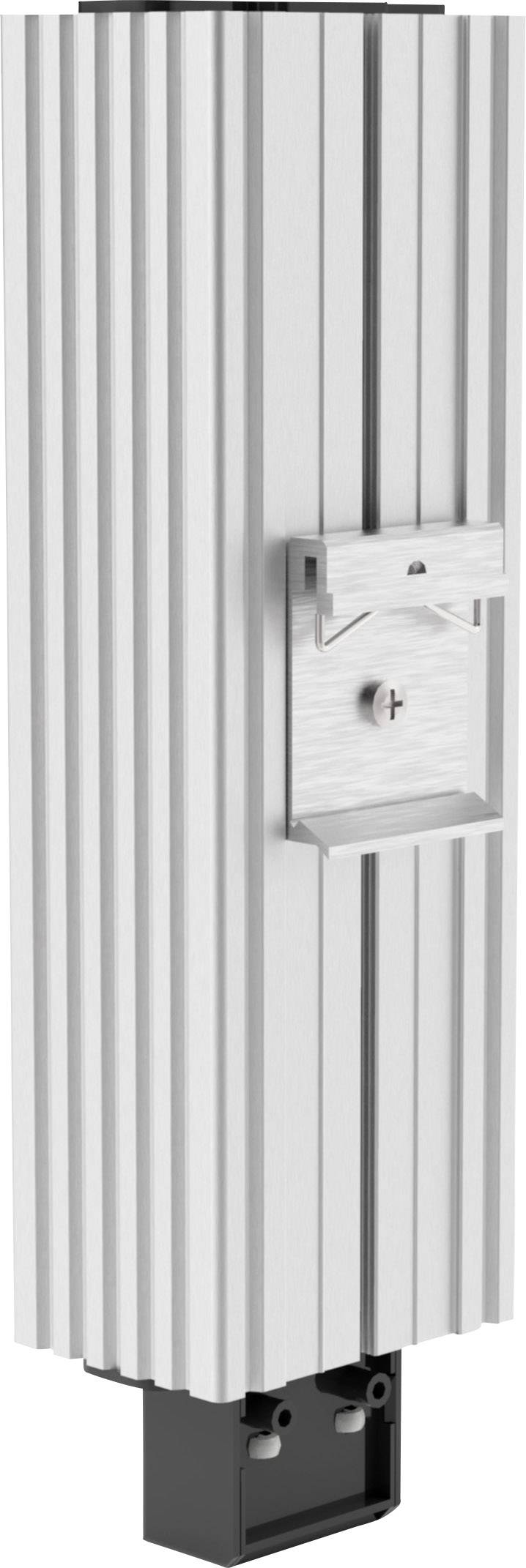

Pfannenberg FLH 150 r.heat. 150W 110-250AC Radiant heating 110 - 250 V AC 150 W (L x W x H) 252 x 60 x 70 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Radiant heating
Connection
Plug & Clip
Max. operating voltage
250 V AC
Type
FLH 150 r.heat. 150W 110-250AC
Min. operating voltage
110 V AC
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 96.63 / piece)
€
Technical specifications
- With fan: No.
- With room thermostat: No.
- Product type
Radiant heating
- Type
FLH 150 r.heat. 150W 110-250AC
- Connection
Plug & Clip
- Min. operating voltage
110 V AC
- Max. operating voltage
250 V AC
- Operating voltage
110 - 250 V AC
150 W
IP20
- Mounting type
35mm section rail mount
- Length
252 mm
- Width
60 mm
- Height
70 mm
- Dim
(L x W x H) 252 x 60 x 70 mm
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 2181577 Pfannenberg FLH 150 r.heat. 150W 110-250AC Radiant heating 110 - 250 V AC 150 W (L x W x H) 252 x 60 x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2181577 Pfannenberg FLH 150 r.heat. 150W 110-250AC Radiant heating 110 - 250 V AC 150 W (L x W x H) 252 x 60 x 70 mm 1 pc(s)
Description
FLH radiant heaters are mainly used to prevent this
From too low temperatures or too high humidity
In the control cabinet in combination with a thermostat or
Hygrostat inserted. Various services from 10 to 150
Watts ensure that the right heating power is always available
Available. This allows the to be installed in a control cabinet
The total heat required can be distributed as required.
This text is machine translated.
From too low temperatures or too high humidity
In the control cabinet in combination with a thermostat or
Hygrostat inserted. Various services from 10 to 150
Watts ensure that the right heating power is always available
Available. This allows the to be installed in a control cabinet
The total heat required can be distributed as required.
This text is machine translated.
